Feature

• Intel® server-grade GbE Mac Controller
• PCI Express (PCIe) x4 interface, compliant with PCI Express 2.1 specification
• PXE network boot
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Provides installation flexibility for standard and low-profile computers, with a dual-profile design
• Supports 4 Gigabit Ethernet MAC Controller
• IEEE 802.3at compliant with up to 30W power per port
• 12V Mini-Fit 6-Pin power connector input
• Powered device (PD) auto detection and classification
• IEEE 802.1q VLAN ID tagged
• 9.5K jumbo frame size
• Complies with Microsoft and Linux platforms

System Requirement

• Windows Server® 2008 R2, 2012, 2016

• Linux 2.6.x to 4.x

Package Content

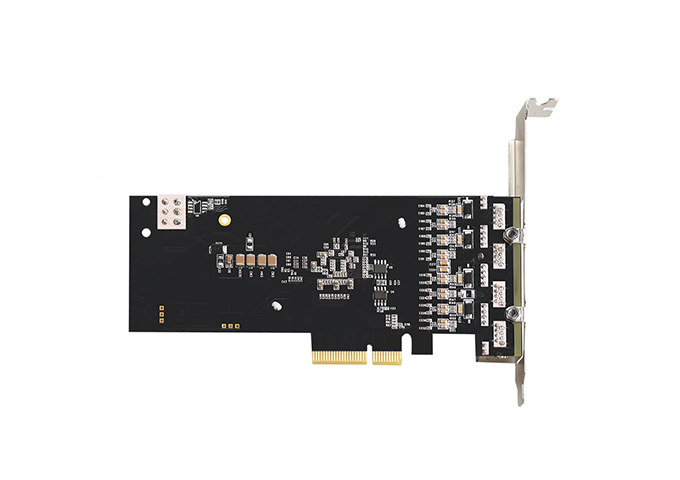

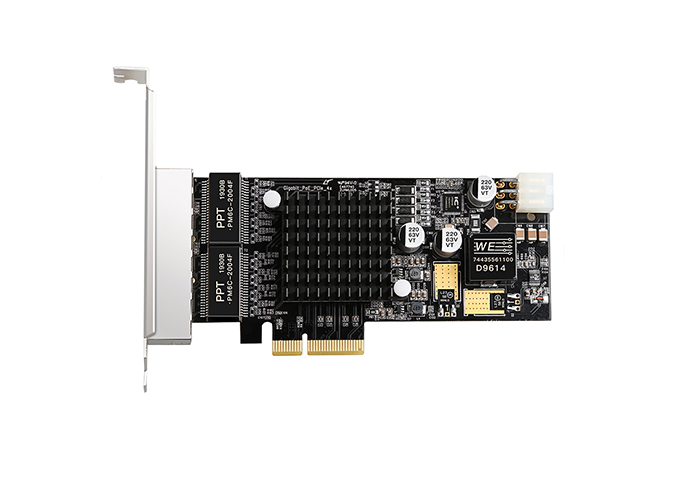

•1 x 4-Port Gigabit PoE+ PCIe Server Adapter
•1 x Driver CD

•1 x User Manual
