Introduction

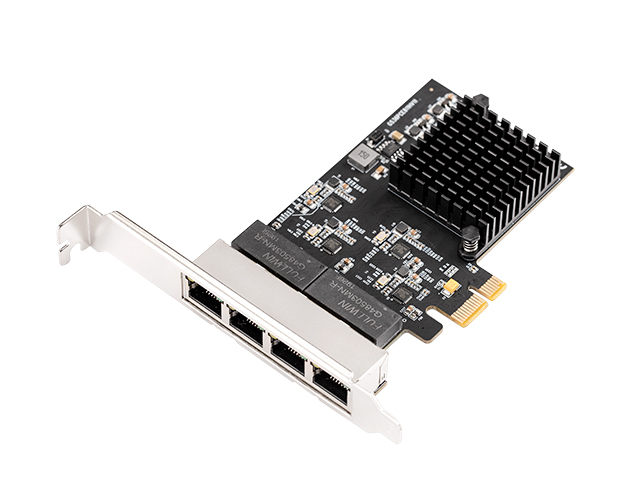

This PCI-Express RTL8111 Four Gigabit Ethernet controller card is a high performance 10/100/1000 BASE-T Ethernet LAN controller, supports the PCI Express 1.1 bus interface for host communications with power management, and is compliant with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space, and is perfectly to convert the PCI-Express interface into Four Gigabit Ethernet ports.

Specification

•Integrated 10/100/1000M transceiver

•Supports Giga Lite (500M) mode

•Auto-Negotiation with Next Page capability

•Supports PCI Express 1.1

•Supports pair swap/polarity/skew correction

•Crossover Detection & Auto-Correction

•Supports 1-Lane 2.5Gbps PCI Express Bus

•Supports hardware ECC (Error Correction Code) function

•Supports hardware CRC (Cyclic Redundancy Check) function

•Transmit/Receive on-chip buffer support

•Supports PCI MSI (Message Signaled Interrupt) and MSI-X

•Fully compliant with IEEE802.3, 802.3u and 802.3ab

•Supports IEEE 802.1P layer 2 Priority Encoding

•Supports 802.1Q VLAN tagging

•Supports IEEE 802.3az-2010(EEE)

•Supports Full Duplex flow control (IEEE.802.3x)

•Supports jumbo frame to 9K bytes

•Supports quad core Receive-Side Scaling(RSS)

•Supports Protocol Offload(ARP&NS)

•Supports Microsoft WPI (Wake Packet Indication)

•Supports ECMA-393 ProxZzzy Standard for sleeping hosts

System Requirement

•Windows 20000, ME, 98SE, Windows Server 2003/XP/Visit/ 2008/7 /8 /10 32-/64-bit,Linux, MAC OS 10.4 or above and DOS.

Package Content

•1 x PCI-Express Four Gigabit Ethernet controller card

•1 x User Manual

•1 x Low Profile Bracket

Note: Contents may vary depending on country and market.
