Features
• Support PCI Express Gen-III x4
• PCI Express (Pcle) v 3.0 x4 lanes
• Jumbo frame support up to 16 KB
• 1 Gbps to 10 Gbps, 5 Gbps, 2.5 Gbps and 100M data rates
• IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
• IEEE 802.3bz 2.5/5GBASE-T
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.1Q VLANs
• IEEE 802.3x Full Duplex and flow contro
• IEEE 802.3az - Energy Efficient Ethernet (EEE)
• iSCSI No
• WoL No
• Jumbo Frames Yes
• DPDK Yes
• PXE Yes
• FCoE No
• Industrial Temperature: -40 to 108°C
• Commercial Temperature: 0 to 108°C
• Storage Temperature：-50 to 150°C
System Requirements
• Windows 7/8/8.1/10
• Windows Server 2008 R2 /2012 R2 /2016 R2 /2019 R2
• Linux Stable Kernel version 2.6.32/3.x/4.x or later
• Linux CentOS/RHEL 6.5 / 7.x or later
• Ubuntu 14.x/15.x/16.x or later
• VMware ESX/ESXi 4.x/5.x/6.x or later

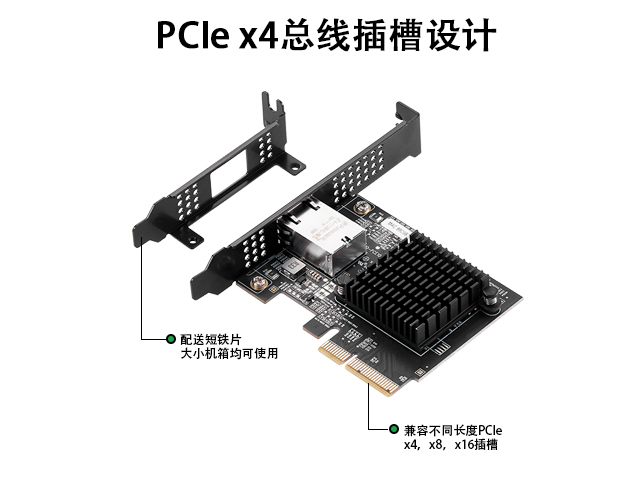

• Bus Type PCIe v2.1 x4,compatible with x8 , x16

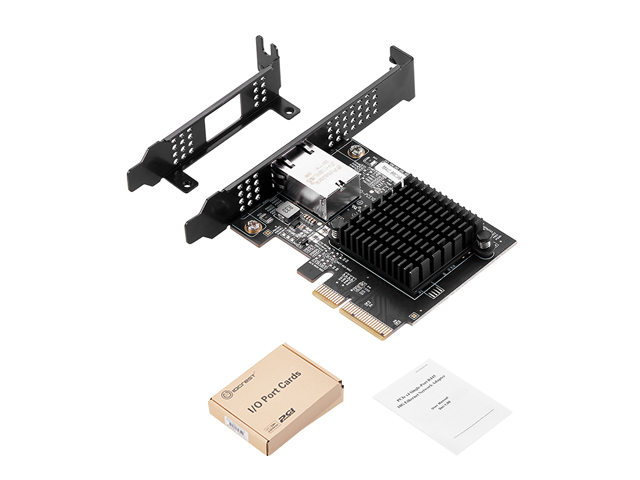

Package Contents

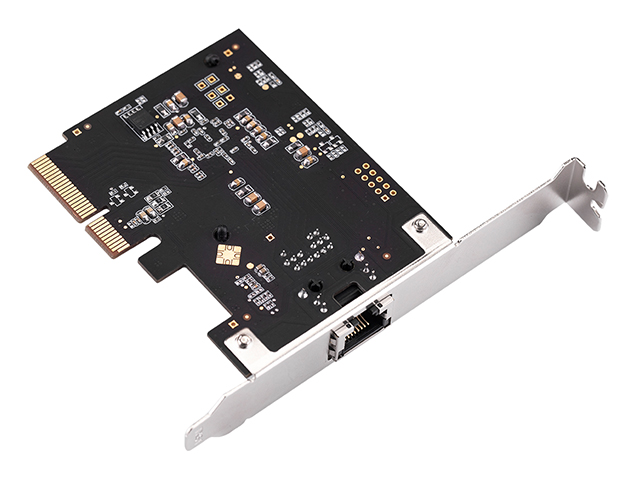

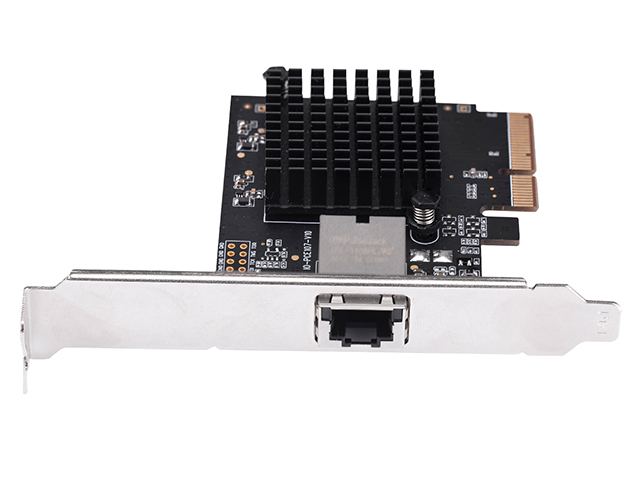

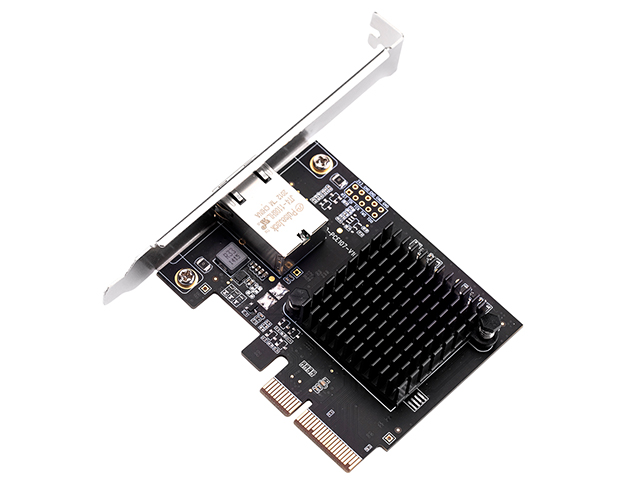

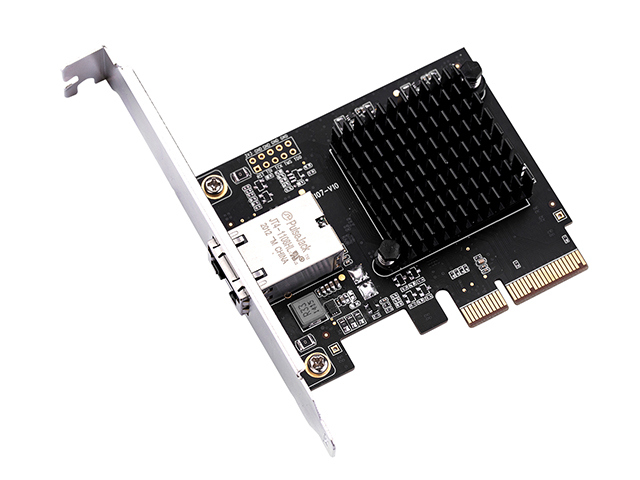

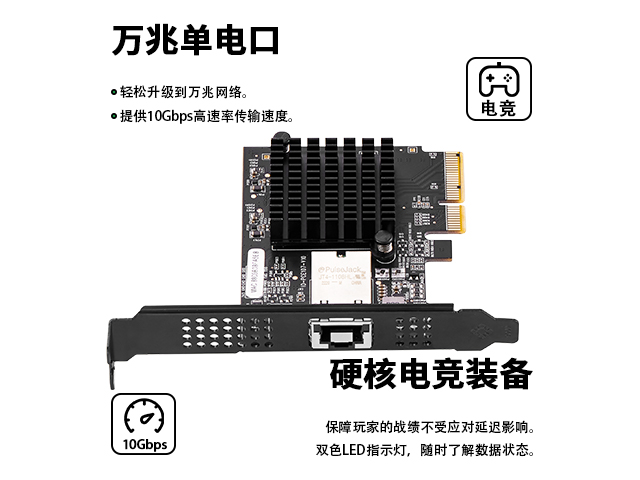

• 1 × PCIe x4 Single-port RJ45 10G Ethernet network adapter
• 1 × User Manual

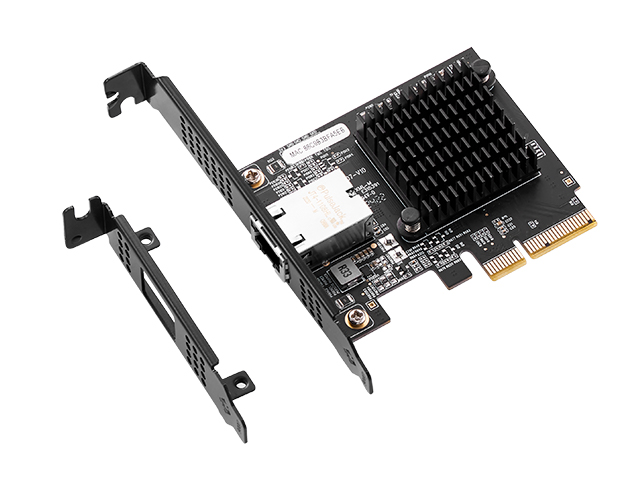

• 1 × Low Profile Bracket

Note: Contents may vary depending on country/market
