Introduction

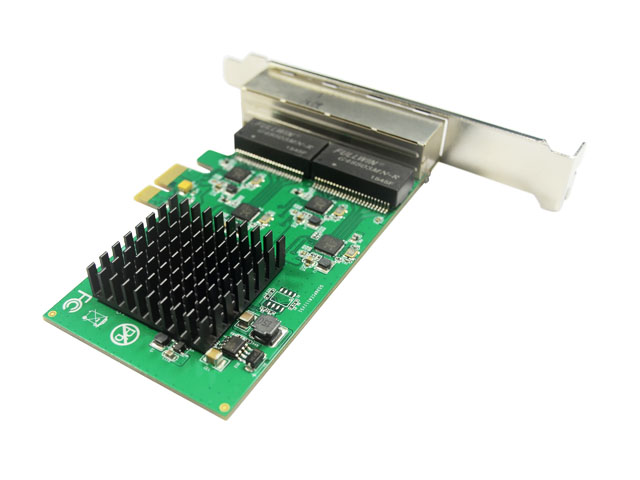

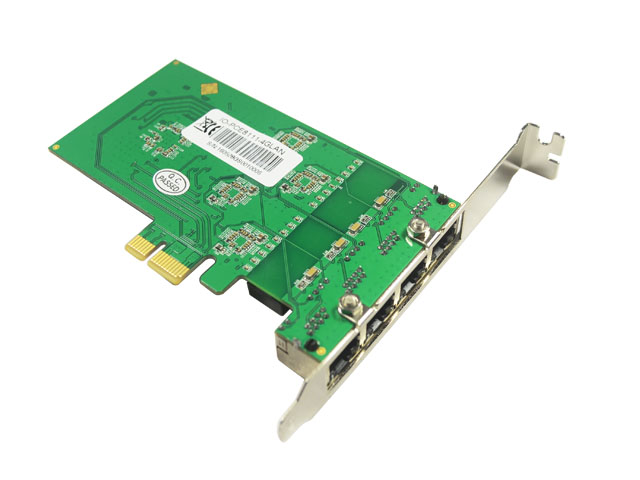

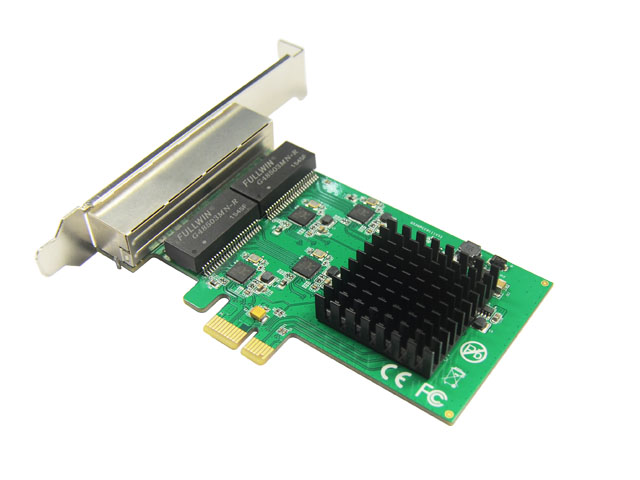

• This PCI-Express RTL8111 Four Gigabit Ethernet controller card is a high performance 10/100/1000 BASE-T Ethernet LAN controller, supports the PCI Express 1.1 bus interface for host communications with power management, and is compliant with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space, and is perfectly to convert the PCI-Express interface into Four Gigabit Ethernet ports.
Specification
• Standard Compliant
-PCI express base SPEC 2.0 and backward compatible with SEPC 1.1 & 1.0a
-PCI Power management SPEC 1.2
• Supports 10/100/1000Mbps data rate auto negotiation operation
• Supports PCI Express 1.1
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Wake-on-LAN and remote wake-up support
• Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
• Supports EMAC-393 ECMA ProxZzzy Standard for sleeping hosts
• Supports Full Duplex flow control (IEEE 802.3x)
• Supports jumbo frame to 9K bytes
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010 (EEE)
• Supports power down/link down power saving/PHY disable mode Built-in switching regulator
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Supports quad core Receive-Side Scaling (RSS)
• Supports Protocol Offload (ARP & NS)
• Supports Four 1-Lane 2.5Gbps PCI Express Bus
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
System Requirement
• Windows 20000, ME, 98SE, Windows Server 2003/XP/Visit/ 2008/7 /8 32-/64-bit,Linux, MAC OS 10.4 or above and DOS.
Package Content
• PCI-Express Four Gigabit Ethernet controller card x 1
• User Manual x 1
• Driver CD x 1
