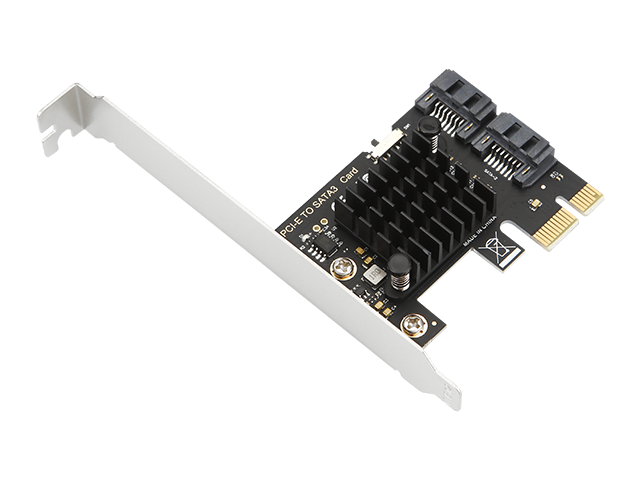

The Lekuo PA61S21 PCIe to Dual Port SATA 3.0 Expansion Card features the industrial-grade ASM1061 chipset, delivering true 6Gbps speeds. Ideal for upgrading older PCs, expanding HDD/SSD storage, and NAS builds.
ModelPA61S21
Input InterfacePCIe
Output Interface2 x SATA III Ports
Motherboard SlotPCIeX1/X4/X8/X16
Transmission Rate6Gbps
Auxiliary AccessoriesLow profile bracket
Product Size65x50mm
Specifacation
• ASM1061 Chipset (Asmedia 1061 SATA Host Controller)
• Compliant with PCI-Express Specification V2.0 and Backward Compatible with PCI-Express 1.x
• Compliance Serial ATA AHCI Spec. Rev. 1.3, Serial ATA Rev. 3.0
• Supports Hot Plug and Hot Swap
• Supports Communication Speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps
• Supports 2 Ports Serial ATA
• Supports Native Command Queue (NCQ)
• Supports Port Multiplier
System Requirements
• Windows 7 (32/64bit)
• Vista
• Server 2003
• Windows XP
• Windows 2000
Package Contents
• 1 x SATA III (6Gbps) Internal 2-port PCI-E Card

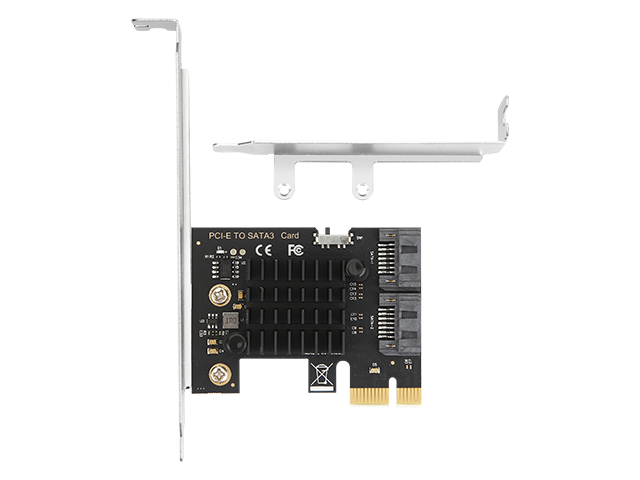

• 1 x Low profile bracket
