Features
▪Supports PCIe x16 slot
▪Support PCIe 3.1,3.0, PCIe 2.0 motherboard
▪Compliant with PCI Express M.2 specification 1.0,1.1
▪Supports data transfer up to 2.5Gb(250MB/s),5Gb(500MB/s),8Gb(1GB/s)
▪Supports 2230, 2242, 2260, 2280 size NVMe SSD

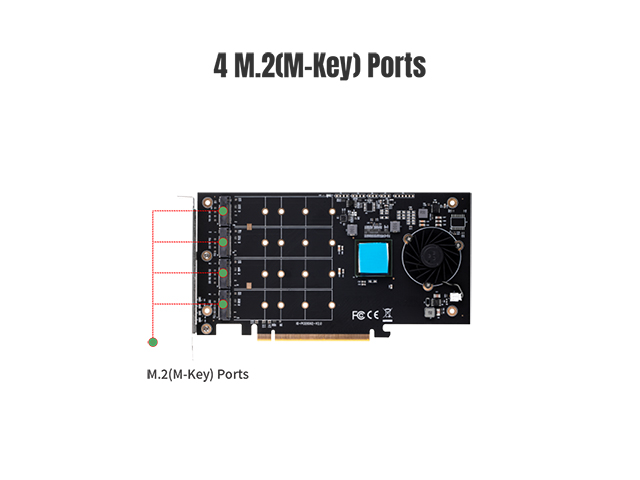

▪Supports four NVMe M.2 M Key socket available
▪4 screw holes 2230/2242/2260/2280 available to fix NVMe SSD card
▪4 screw holes available to fix PCB board
▪Easy installation & no driver required
System Requirements
▪Windows 7,8,8.1 and 10
▪Windows server 2K8,2K12,2K16,2K19
▪Linux Kernel 4.6.4 or above
▪PC with one free PCI Express x16 / x32 slot

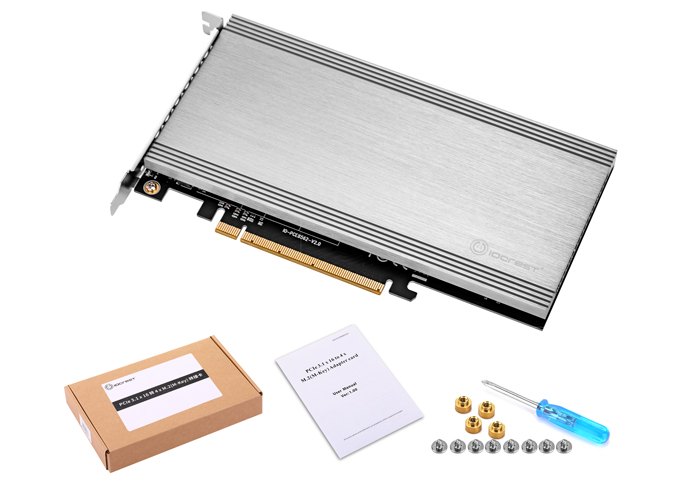

Package Contents
▪1 x PCIe x 16 to 4 x M.2(M-Key) card
▪1 x User Manual
▪1 x M.2 Mounting material
▪1 x Screwdriver
▪5 x self-adhesive thermal pad
Note: Contents may vary depending on country and market.
