2 x PCIe 3.0 x4 to M.2 Ports,Dedicated PCIe 3.1 x4 bus bandwidth,Integrated TRIM & S.M.A.R.T. Monitoring with TBW Tracking,PCI Express 3.1 x16 Lane Host adapte
ModelIO-PCE2241-2IR
Input InterfacePCIe
Output InterfaceM.2
Motherboard SlotPCIe
Transmission Rate2.5Gb/s,5Gb/s,8Gb/s
Auxiliary AccessoriesScrew Drive ,M.2 SSD mounting screws
Product Size203.7x110.8mm
Features
• 2 x PCIe 3.0 x4 to M.2 Ports

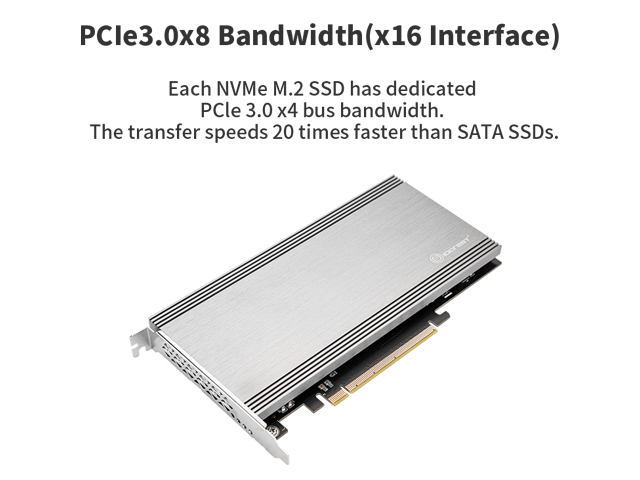

• Dedicated PCIe 3.1 x4 bus bandwidth
• Integrated TRIM & S.M.A.R.T. Monitoring with TBW Tracking
• PCI Express 3.1 x16 Lane Host adapte
• Support PCIe 3.1,3.0, PCIe 2.0 motherboard
• Compliant with PCI Express M.2 specification 1.0
• Supports data transfer up to 2.5Gb/s,5Gb/s,8Gb/s
• Connects PCIE motherboard to NGFF M Key SSD
• Supports 2230, 2242, 2260, 2280 size NGFF SSD
• Supports Hardware RAID 0、1
• 8 screw holes available to fix PCB board
• Easy installation & no driver required
• Independent, Stand Alone NVMe SSD Solution
• Smart PCIe Switching Built-In

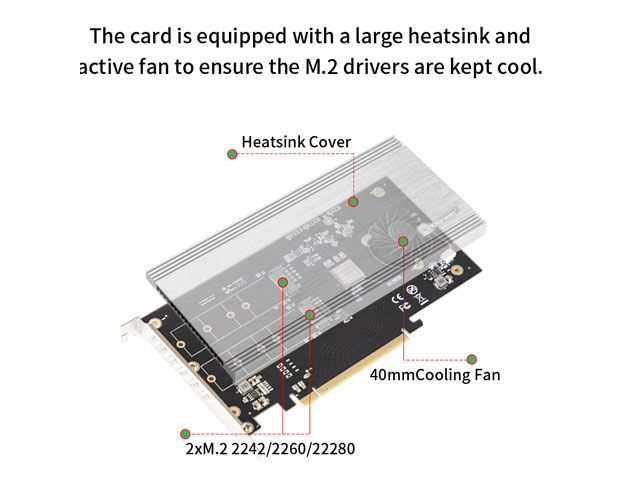

• Robust, Compact & Efficient – Shield & Cool Your SSD’s
System Requirements
• Windows OS
• Mac OS
• Linux 3.3 or later

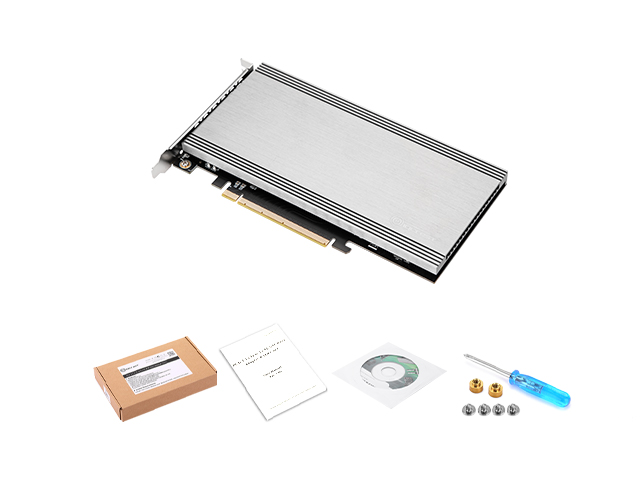

Package Contents
• 1 x PCIe x 16 to 2 x M.2(M-Key) card
• 1 x User Manual
• 2 x Screw Drive
• 5 x NGFF M.2 SSD mounting screws
