Features

• Support one lane PCI Express

• Compliant with the PCI Express Base Specification Revision 2.0

• Supports the PCI Bus Power Management Interface Specification Revision 1.2

• Compliant with the Universal Serial Bus 3.0 specification Revision 1.0

• Support PCI Express Card Electromechanical 2.0 specification.

• Compliant with USB3.0 Specification Revision 1.0

• Compliant with USB Specification Revision 2.0

• Compliant with xHCI specification Revision 1.0

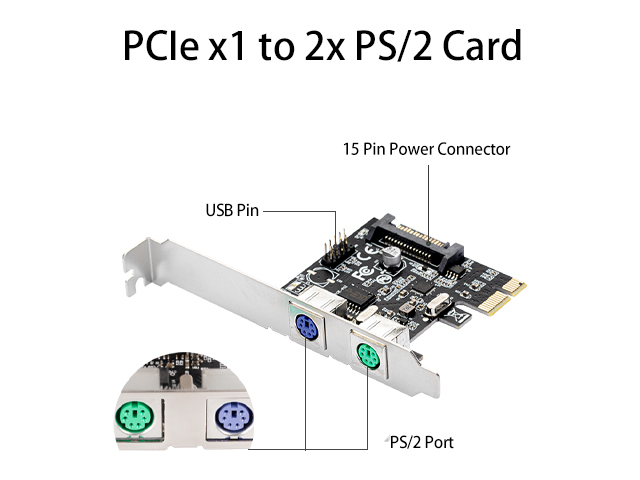

• Interface two PS/2 devices to USB

• PS/2 ports support 3 dimensions 3keys wheel mouse and multimedia keyboard function

• Built-in 65c02 8 Bit CPU

• Supports 1 low speed devise address and 3 endpoints

• 8 bytes FIFO for each endpoint

• Built-in power on reset & watchdog timer reset

• Support device hot swap

• PS/2 ports are auto selectable and hot swappable

• Mice or keyboard can be used in either port

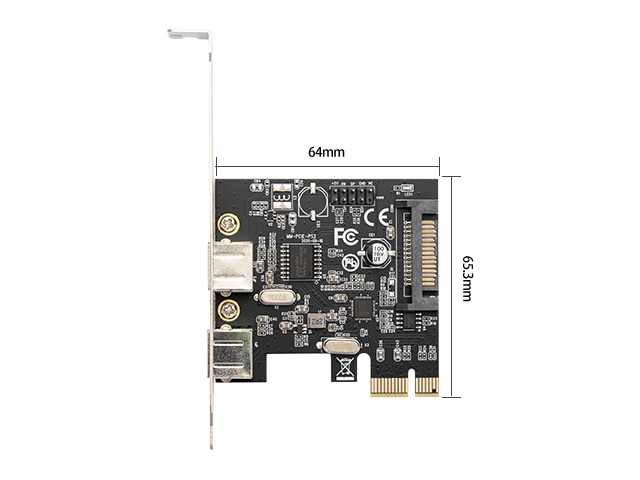

• Support small chassis

System Requirements

• Windows, Linux and MAC OS Platform

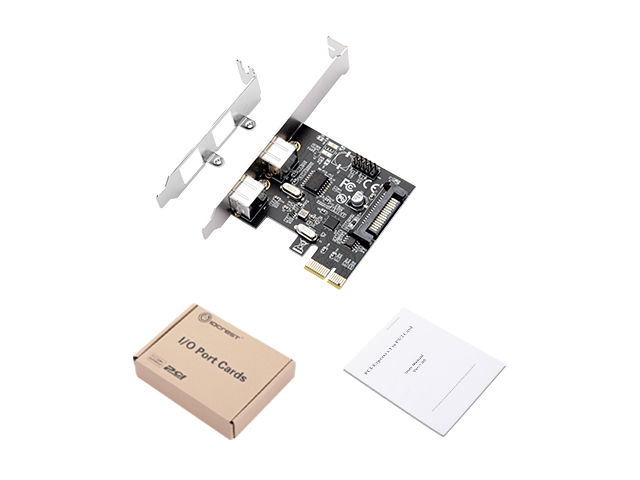

Package Contents

• 1 x PCIE TO PS/2 Card

• 1 x User Manual

• 1 x Low Profile Bracket
