Integrated 10/100/1000M transceiver Supports Giga Lite (500M) mode,Auto-Negotiation with Next Page capability,Supports PCI Express 1.1,Supports pair swap/polarity/skew correction.

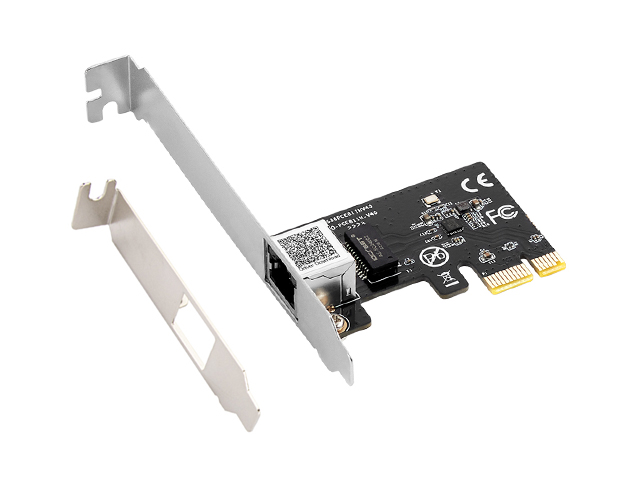

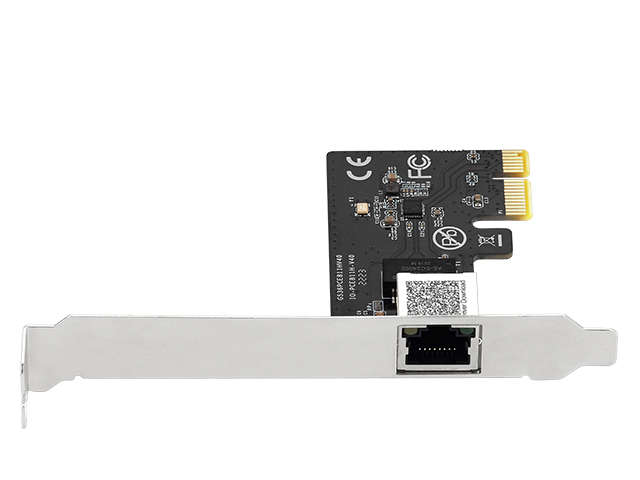

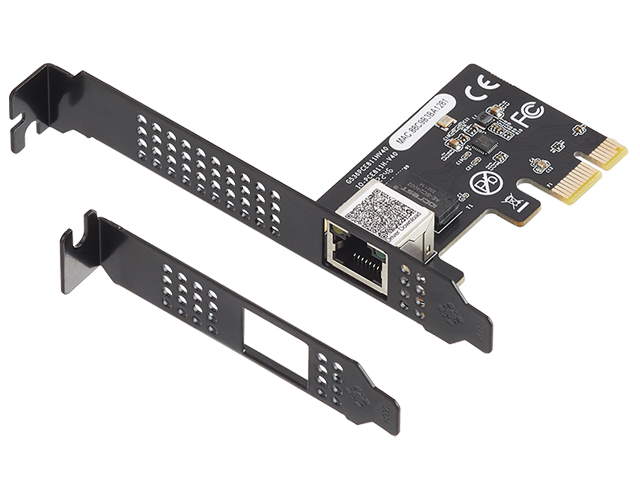

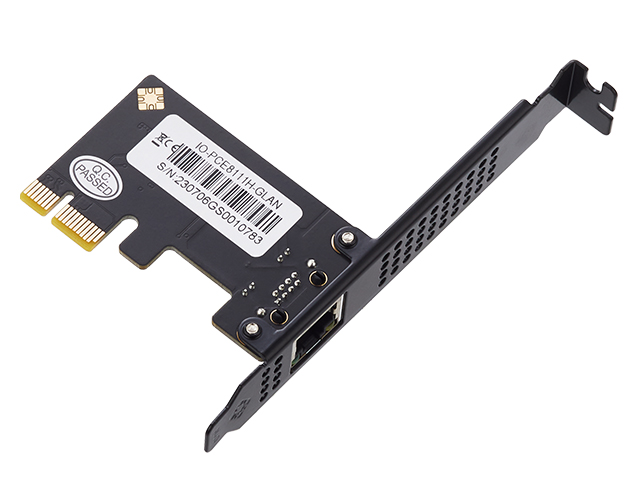

ModelIO-PCE8111H-GLAN
Input InterfacePCIe
Output InterfaceRJ45
Motherboard SlotPCIe
Transmission Rate1000Mbps
Auxiliary AccessoriesLow Profile Bracket,Driver CD

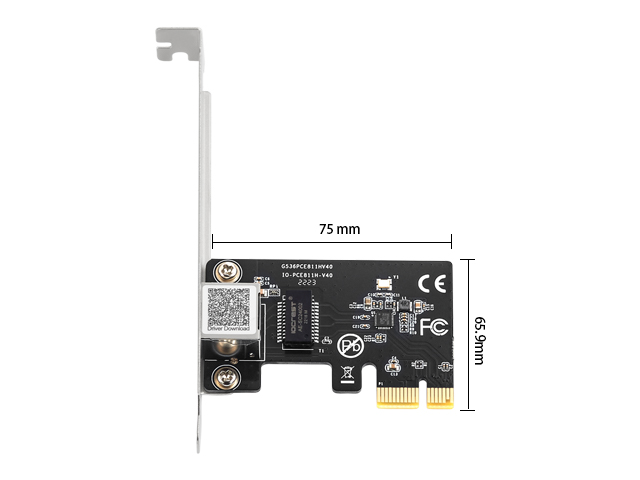

Product Size
Features
•Integrated 10/100/1000M transceiver
•Supports Giga Lite (500M) mode
•Auto-Negotiation with Next Page capability
•Supports PCI Express 1.1
•Supports pair swap/polarity/skew correction
•Crossover Detection & Auto-Correction
•Supports 1-Lane 2.5Gbps PCI Express Bus
•Supports hardware ECC (Error Correction Code) function
•Supports hardware CRC (Cyclic Redundancy Check) function
•Transmit/Receive on-chip buffer support
•Supports PCI MSI (Message Signaled Interrupt) and MSI-X
•Fully compliant with IEEE802.3, 802.3u and 802.3ab
•Supports IEEE 802.1P layer 2 Priority Encoding
•Supports 802.1Q VLAN tagging
•Supports IEEE 802.3az-2010(EEE)
•Supports Full Duplex flow control (IEEE.802.3x)
•Supports jumbo frame to 9K bytes
•Supports quad core Receive-Side Scaling(RSS)
•Supports Protocol Offload(ARP&NS)
•supports Microsoft WPI (Wake Packet Indication)
•Wake-On-LAN and "RealWoW"Technology (remote wake-up) support
•supports ECMA-393 ProxZzzy Standard for sleeping hosts
System Requirements
•Windows ME,98SE, 2000, XP, Vista, 7, 8 and 10 32-/64-bit
•Windows Server 2003, 2008, 2012and 2016 32 -/64-bit
•Linux, MAC OS and DOS
•PCI Express-enabled system with an available PCI Express slot

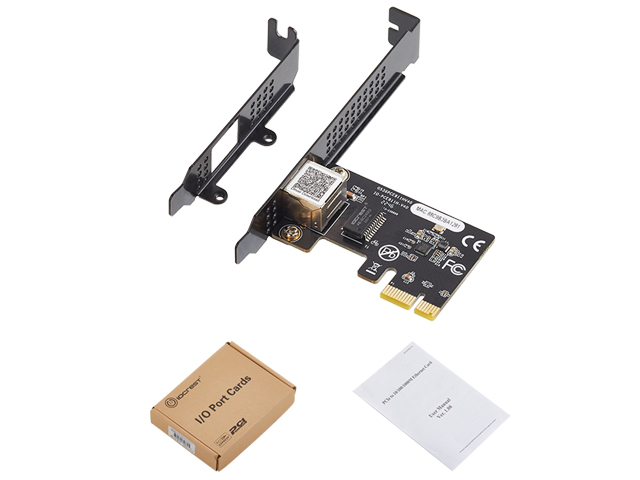

Package Contents
•1 x PCI-Express to 10 /100/1000M Ethernet Card
•1 x User Manual
•1 x Low-profile bracket
