Features

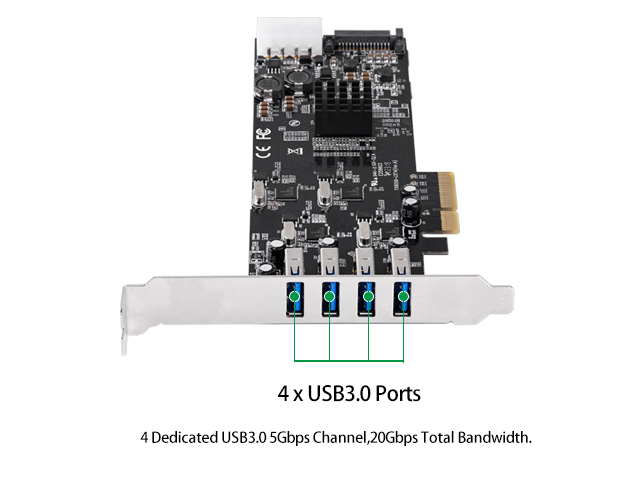

• Provides four independent USB 3.0 ports with a total bandwidth of 20Gbps
• Up to 5Gbps transfer rate per USB 3.0 interface
• 4 external USB3.0 ports, 10x faster than USB2.0

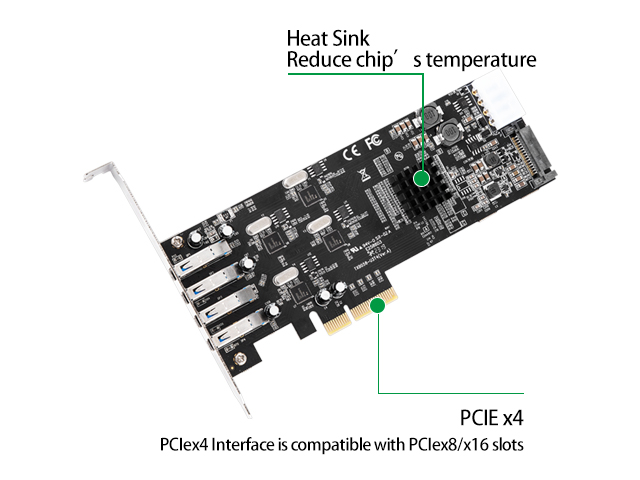

• Supports x4, x8, x16 (lane) PCI Express Bus connector keys.
• It is a industrial level high performance USB card
• Supports USB debugging capability on all super-speed ports.
• USB3.0 Specification compliant, backward compatible with USB2.0 & USB1.1
• Compliant with PCI Express Base Specification Revision 2.0
• Supports PCI Bus Power Management Interface Specification Revision 1.2
• Supports USB data transfer rate of 5G/480/12/1.5 Mbps
• Support Control, Bulk, Stream, Interrupt, Isochronous transfer type

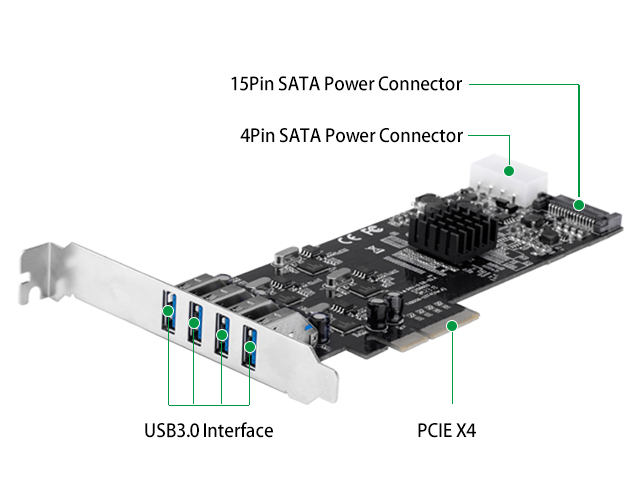

• Power Input: 15-pin SATA CD-ROM Type Power Connector
• Plug and play installation
• Operating Temperature: 0 ℃-60 ℃
• Relative Humidity: 10%-90%(non-condensing)
• Storage Temperature: -20℃-80℃
• Relative Humidity: 5%-90%(non-condensing)

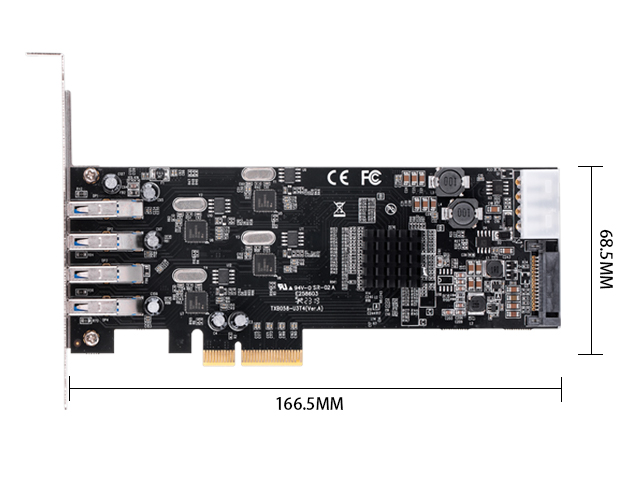

• Dimension：166.5*68.5mm

System Requirements
• Windows10、8 /、8.1、7、Vista、XP、2000
• WindowsServer2012、2008 R2、2003
• MacOS10.x
• Linux 2.6.31 or later

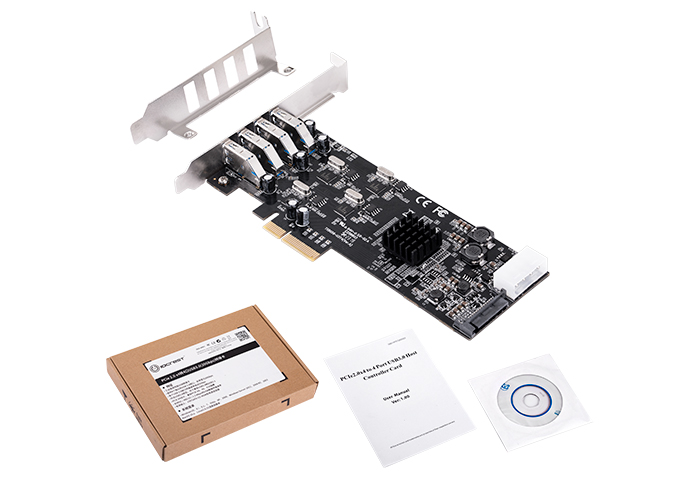

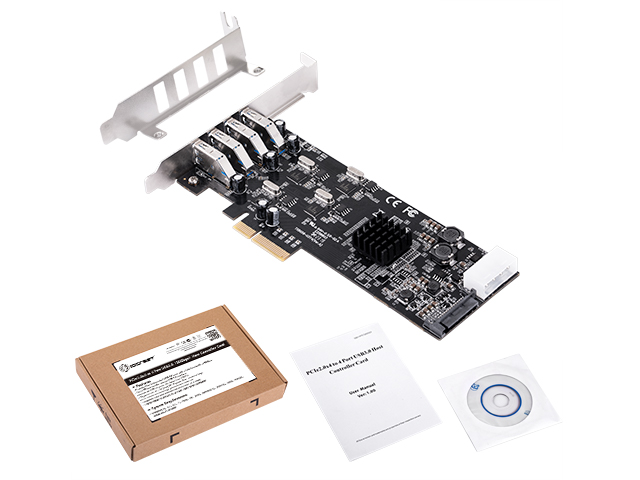

Package Contents
• 1 × PCIe to 4 Ports USB3.0 Card
• 1 × User Manual
• 1 × Low Profile Bracket

• 1 × Driver CD
