Feature
• Fully compliant with PCI-Express Base Specification Revision 1.1
• Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
• Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
• Compatible with 16C550 / 16C552
• 128-byte TX and RX FIFOs
• Supports the programmable baud rate generator with the data rate from 50 to 921600 bps
• Supports hardware and software flow control
• Supports 5, 6, 7, 8 bit serial format
• Supports 1, 1.5 or 2 Stop bit operation
• Supports even, odd, none, space & mark parity
• Operating temperature： -25℃ ~ 85℃

System Requirements
• Windows XP,Vista,7,8,8.1,10
• Windows Server 98,2K,2K3,2K8,2K12,2K16
• Linux2.4.x/2.6.x

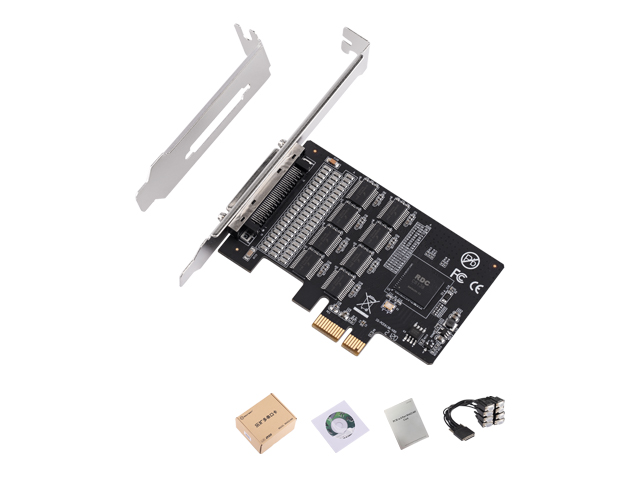

Package Contents
• 1 x PCI-Express I/O card
• 1 x User manual
• 1 x Driver CD
• 1 x Fan Out Cable
