Features

•Compliant with PCI Express Base Specification 1.1.

•Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.

•Support 4 x UART serial ports

•Built-in 16C550,16C552,16C554 compatible UART

•256-bype deep transmit/receive FIFOs

•Data transfer rate up to 230400bps

•Optional RS-232 signal or power output to serial device

•Provides 5VDC or 12VDC power output via pin 1

•Provides 5VDC or 12VDC power output via pin 9

•Plug-n-Play, I/O address and IRQ assigned by BIOS.

System Requirements

•Windows98/98e/ME

•Windows 32bit 2000/XP/2003 Server/Vista/7 & Windows 64bit XP/2003 Server/Vista/7/8/10

•Linux Kernel 2.4 & 2.6

One available PCI Express slot

Package Contents

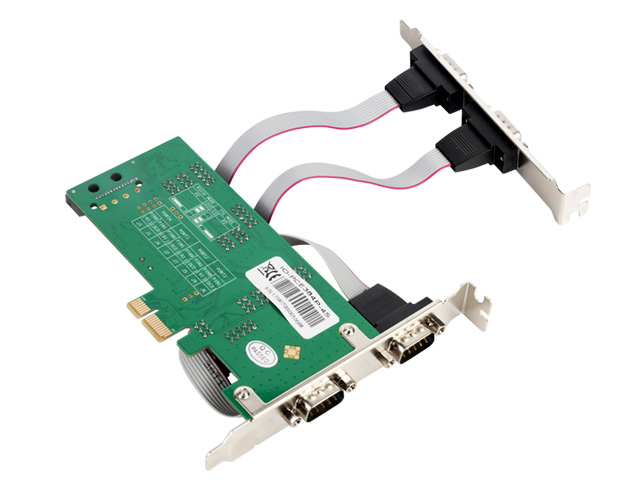

•1 x Powered RS-232 4-Port PCIe Card

•1 x Driver CD

•1 x User Manual

Note: Contents may vary depending on country/market.
