PCIExpressbasespec1.1compliant.PCIe2.0Gen1Compliant.8Portserialbreakoutcable.EightindependentUARTchannelscontrollerwith16550compatibleregisterSet.

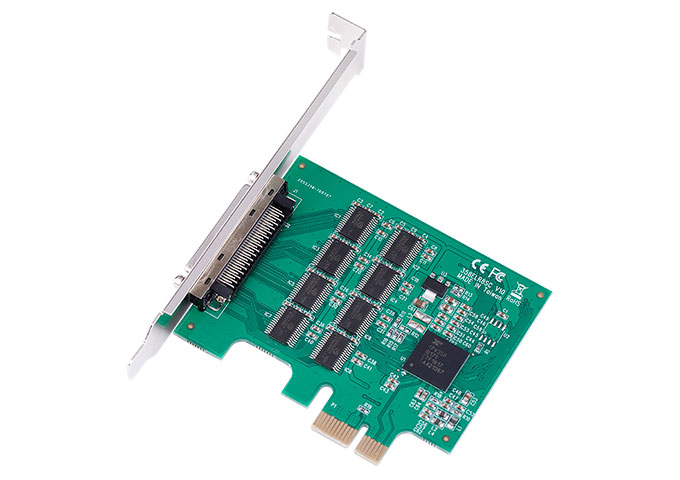

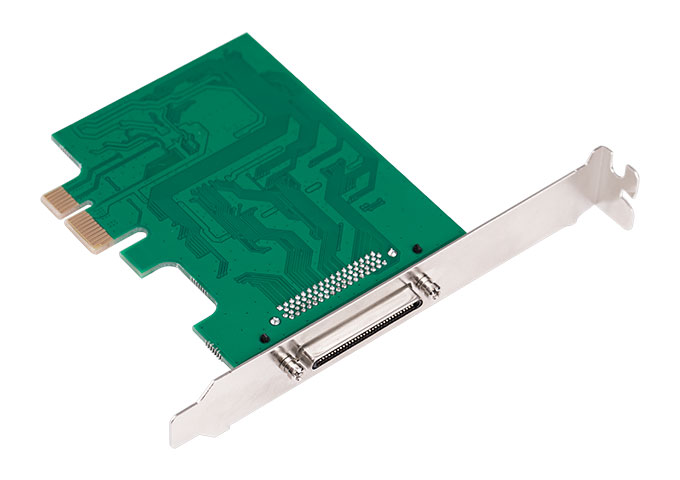

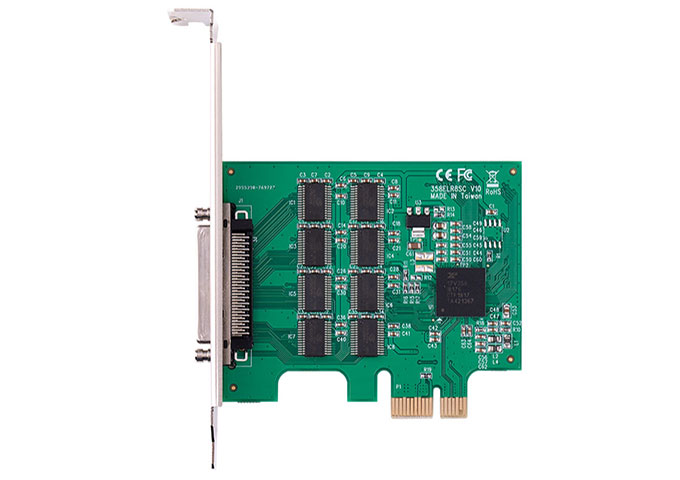

ModelIO-PCETFEE-8S
Input InterfacePCIe
Output InterfaceRS232
Motherboard SlotPCIe
Transmission Rate921.6Kbps
Auxiliary AccessoriesFan-out cable,Low Profile Bracket,Driver CD
Product Size80x68.9mm
Features
• PCI Express base spec 1.1 compliant .
• PCIe 2.0 Gen 1 Compliant.

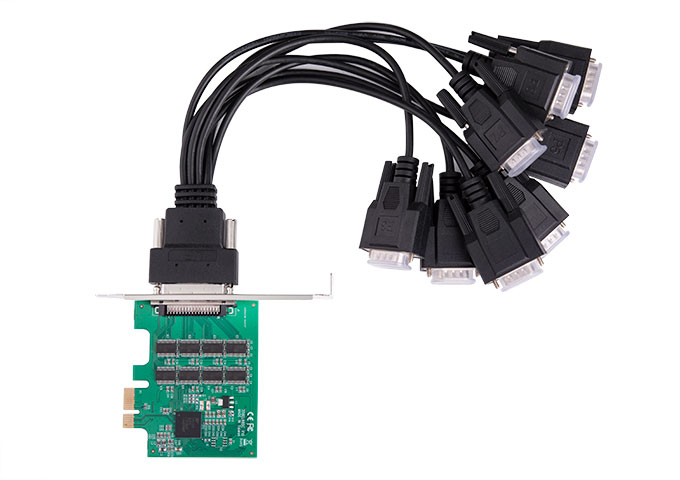

• 8 Port serial breakout cable .
• Eight independent UART channels controller with 16550 compatible register Set.
• Full 256-byte receiver and transmitter FIFOs, fully adjustable IRQ trigger levels and automated flow-control
• RS232 transmission Speed up to 115 kbps
• Automatic Xon/Xoff Software flow Control.
• Certified by CE, FCC, RoHS, and Microsoft WQHL approval.
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -65°C to +150°C
• support low profile bracket
System Requirements
• Windows XP, Vista, 7, 8, 8.1, 10
•Linux 2.6.32 and newer
•Linux 2.6.31
•Linux 2.6.27

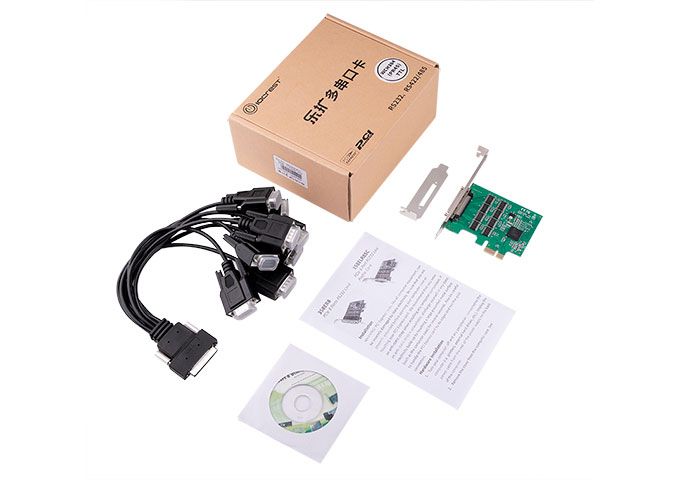

Package Contents
• 1 x PCI Express 8-Port RS232 Card
• 1 x Driver CD
• 1 x Instruction Manual
• 1 x Low Profile Bracket
• 1 x 8-DB-9 (9 pin; D-Sub) Male Octopus Cable
