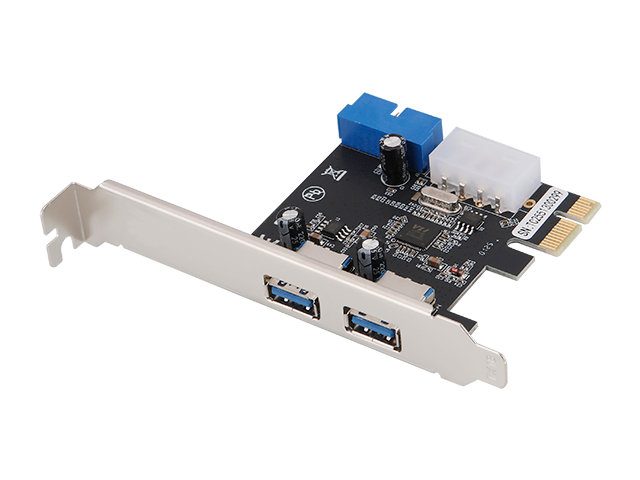

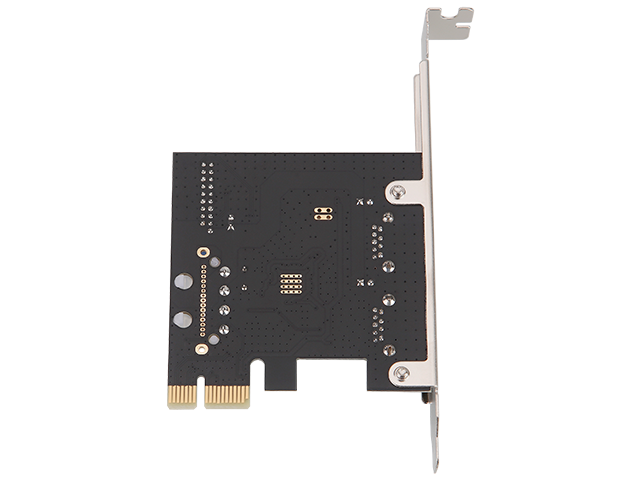

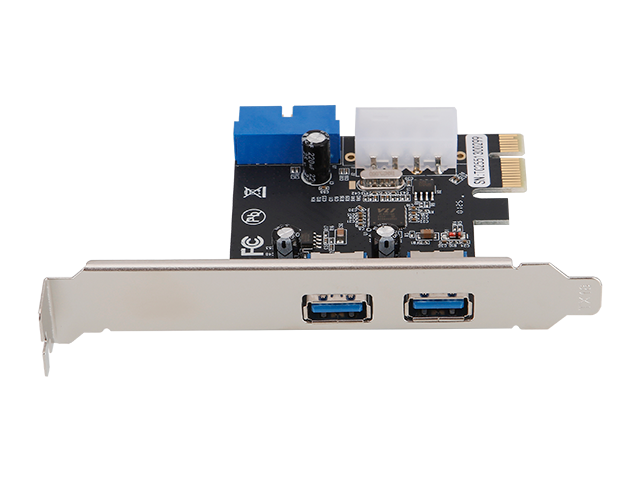

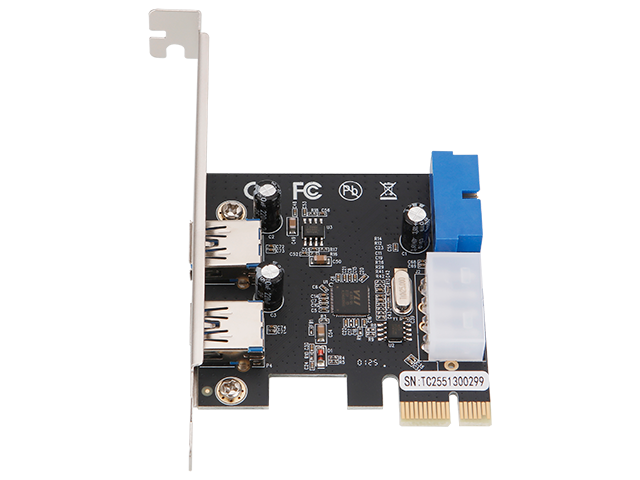

Boost your PC’s connectivity with the Lekuo PVL5U21 4-Port USB 3.0 PCIe Expansion Card, featuring the VIA VL805 chipset for blazing-fast 5Gbps data transfers, Two USB 3.0 Type-A ports.
ModelPVL5U21
Input InterfacePClex1
Output Interface2 x USB 3.0
Motherboard SlotPCIe x1,x4,x8,x16
Transmission Rate5Gbps
Auxiliary Accessories
Product Size65x70mm
Features
• Fully compliant with PCI Express Base Specification Revision 2.0
• Single-lane (x1) PCI Express throughput up to 2.5 Gbps
• Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
• Supports simultaneous operation of multiple USB 3.0, USB 2.0, and USB 1.1 devices
• Features 2 downstream ports supporting all speeds
• Built-in 4-pin power connector for receiving additional power from the system
• Hot-swap capability allows connecting/disconnecting devices without shutting down the system
• Bus Type: PCI Express Revision 2.0, single-lane (x1)
• Main Chipset: VIA/VL805
• Interface: 2 x external USB 3.0 ports
• Transfer Rates: Low Speed (1.5 Mbps)/Full Speed (12 Mbps)/High Speed (480 Mbps)/SuperSpeed (5 Gbps)
• Management Function: Hot-swap capability allows connecting/disconnecting devices without shutting down the system
Operating Systems
• Windows 10/8/7/Vista/XP/2000/ME/98SE/Server 2003-2008 (32/64-bit)
• Linux, DOS
Package Includes
• 1 x Expansion Card
