Introduction

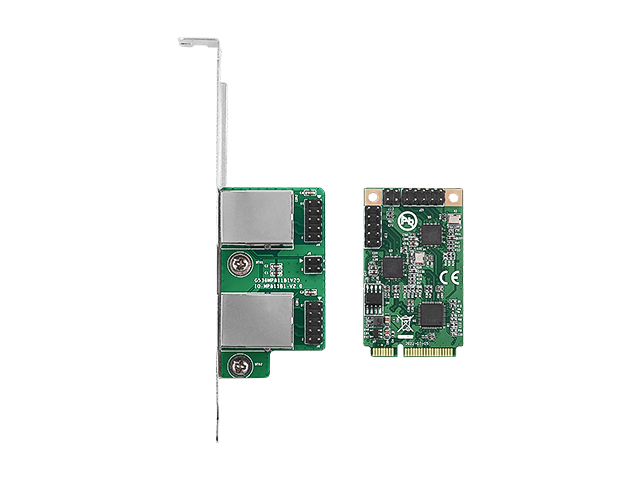

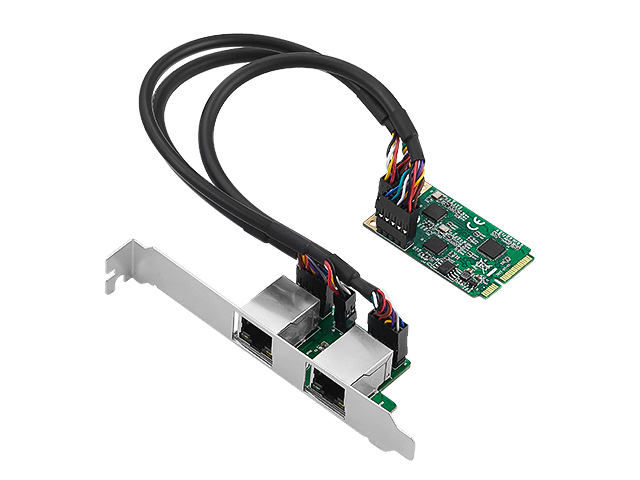

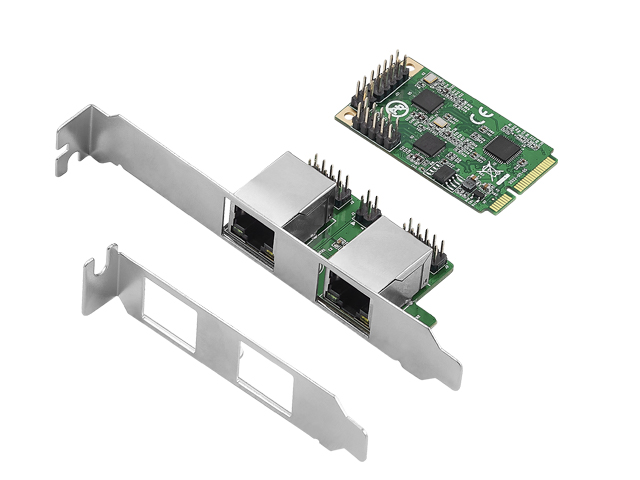

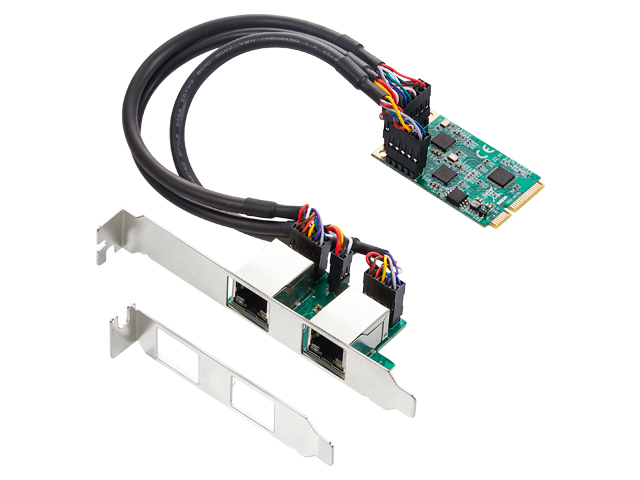

This card is a 2.5Gbps  Ethernet miniPCI Express Card. It supports high performance dual channel networking and full duplex communication to achieve up to 2500 Mbps and fast transfer rates, yet is compatible with existing Ethernet. It comes with a comprehensive of software drivers for all desktop operating systems, including Microsoft Windows, Linux, and Mac OS X.

Features

• Supports 2.5G Lite (1G data rate) mode

• Supports PCI Express 2.1

• Supports 2 high performance 2.5-Gigabit LAN ports

• Auto-Negotiation with Extended Next Page capability (XNP)

• Compatible with NBASE-TTM Alliance PHY Specification

• Supports pair swap/polarity/skew correction

• Crossover Detection & Auto-Correction

• Supports 1-Lane 2.5/5Gbps PCI Express Bus

• Supports hardware ECC (Error Correction Code) function

• Supports hardware CRC (Cyclic Redundancy Check) function

• Transmit/Receive on-chip buffer support

• Supports PCI MSI (Message Signaled Interrupt) and MSI-X

• Supports power down/link down power saving/PHY disable mode

• Supports ECMA-393 ProxZzzy Standard for sleeping hosts

• Supports LTR (Latency Tolerance Reporting)

• Supports 32-set 128-byte Wake-Up Frame pattern exact matching

• Supports Microsoft WPI (Wake Packet Indication)

• Supports PCIe L1 substate L1.1and L1.2

• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization

• Supports IEEE 802.1Qav credit-based shaper algorithm

• Supports IEEE 802.1P Layer 2 Priority Encoding

• Supports IEEE 802.1Q VLAN tagging

• Supports IEEE 802.1ad Double VLAN

• Supports IEEE 802.3az (Energy Efficient Ethernet)

• Supports IEEE 802.3bz (2.5GBase-T)

• Supports Full Duplex flow control (IEEE 802.3x)

• Supports jumbo frame to 16K byte

• Supports standard and low profile chassis

System Requirements

• Windows OS

• Linux, MAC OS and DOS

•  A available mini PCI Express slot

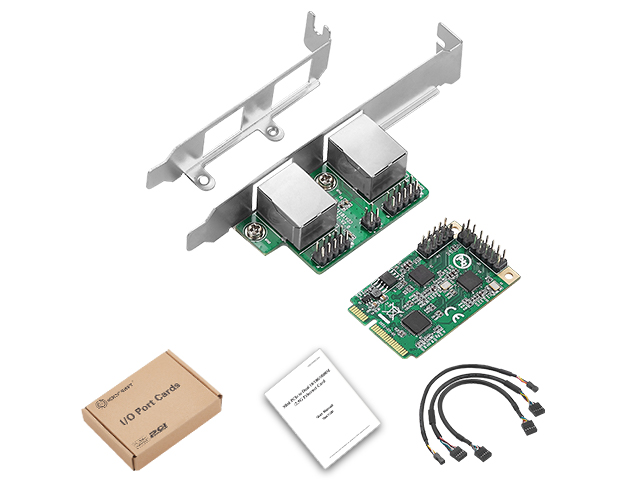

Package Contents

• 1 x mini PCI-Express to Dual 10 /100/1000M/2.5G Ethernet Card

• 1 x User Manual

• 1 x Low-profile bracket

Note: Contents may vary depending on country/market
