Introduction

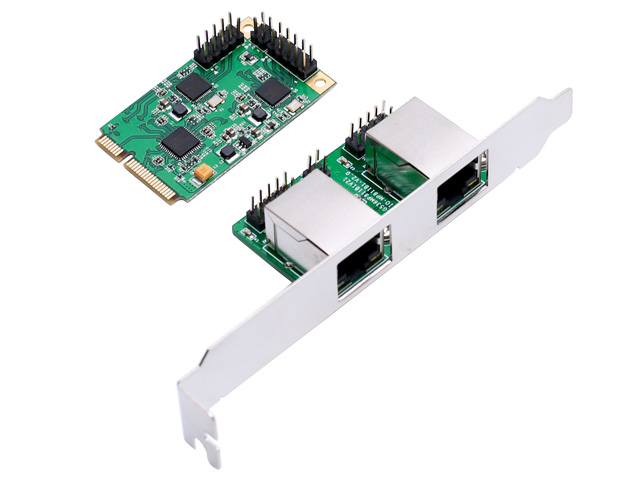

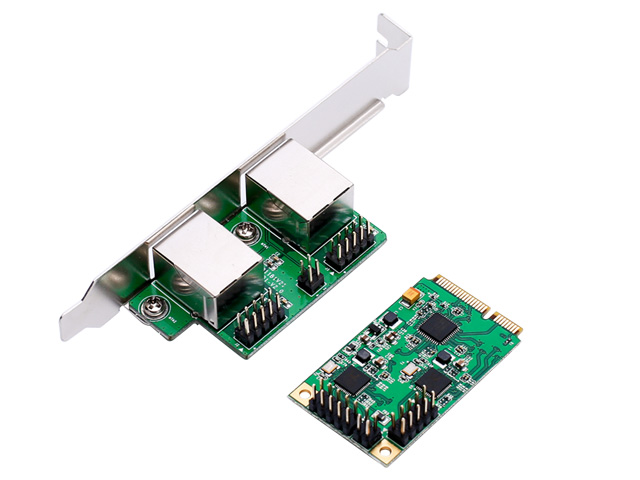

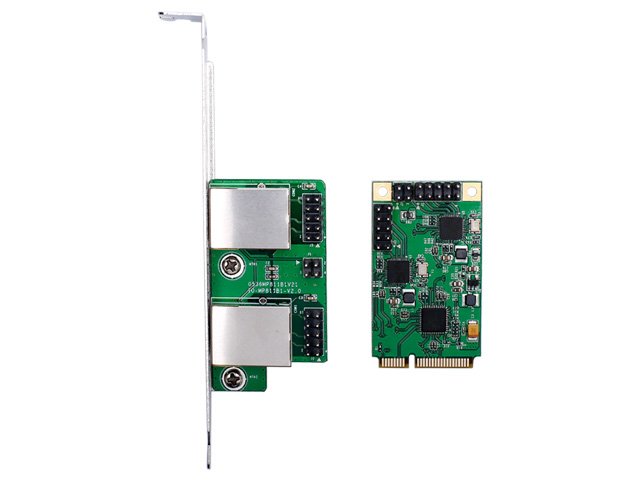

This Mini PCI-Express Dual Gigabit Ethernet Adapter is a high performance 10/100/1000 BASE-T Ethernet LAN controller. Supports compliant with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space.
Features
•Support existing CAT-5 UTP cabling with automatic crossover detection
•Fully compliant with PCI-Express Base Specification Revision 1.1
•Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
•Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
•Compatible with Half size Mini card type form factor
•Fully Plug and Play compatible
•A high performance 1000BASE-T Ethernet controller card
•Backwards compatible to 10/100BASE-T networking
•10/100/1000Mbps data rate auto negotiation operation
•Compatible to existing CAT-5 UTP cabling
•Fully compliant with IEEE 802.3, 802.3u, 802.3ab
•Supports full duplex flow control (IEEE 802.3x)
•Supports IEEE 802.1P Layer 2 Priority Encoding
•Supports IEEE 802.1Q VLAN tagging
•Supports jumbo frame to 9K bytes
•Crossover Detection and Auto Correction operation
System Requirements
•Windows ME,98SE, 2000, XP, Vista, 7, 8 and 10 32-/64-bit
•Windows Server 2003, 2008 and 2012 32 -/64-bit
•Linux, DOS MAC OS X 10.4.X or above

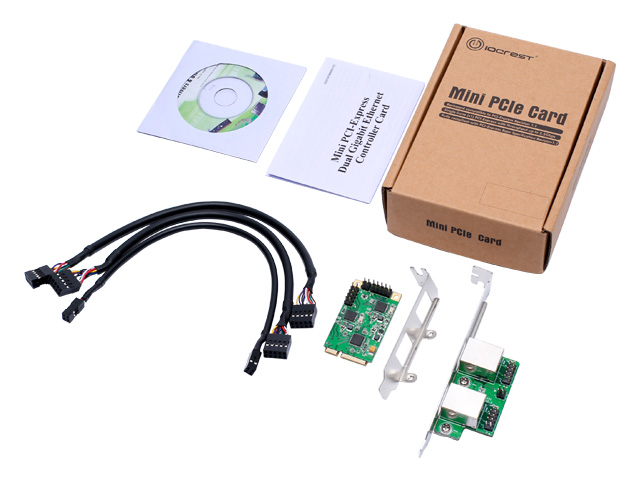

Package Contents
•Gigabit Ethernet Mini PCI-Express Card - Main card x1
•Gigabit Ethernet Mini PCI-Express Card - Daughter card x1
•User manual x1
•Driver CD x1
•10-pin network cable x2
•4-pin LED cable x1
•Low-profile bracket x 1
