Features

• Integrated 10/100/1000M transceiver

• Supports Giga Lite (500M) mode

• Auto-Negotiation with Next Page capability

• Supports PCI Express 1.1

• Supports pair swap/polarity/skew correction

• Crossover Detection & Auto-Correction

• Supports 1-Lane 2.5Gbps PCI Express Bus

• Supports hardware ECC (Error Correction Code) function

• Supports hardware CRC (Cyclic Redundancy Check) function

• Transmit/Receive on-chip buffer support

• Supports PCI MSI (Message Signaled Interrupt) and MSI-X

• Fully compliant with IEEE802.3, 802.3u and 802.3ab

• Supports IEEE 802.1P layer 2 Priority Encoding

• Supports 802.1Q VLAN tagging

• Supports IEEE 802.3az-2010(EEE)

• Supports Full Duplex flow control (IEEE.802.3x)

• Supports jumbo frame to 9K bytes

• Supports quad core Receive-Side Scaling(RSS)

• Supports Protocol Offload(ARP&NS)

• Supports ECMA-393 ProxZzzy Standard for sleeping hosts

System Requirements

• Windows ME,98SE, 2000, XP, Vista, 7, 8 and 10 32-/64-bit

• Windows Server 2003, 2008, 2012and 2016 32 -/64-bit

• Linux, MAC OS and DOS

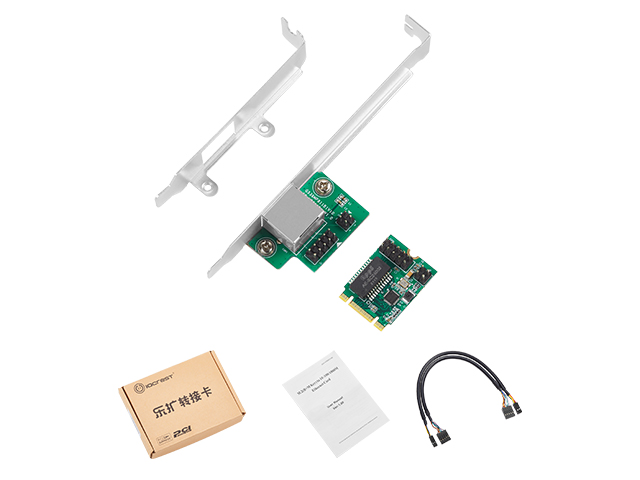

Package Contents

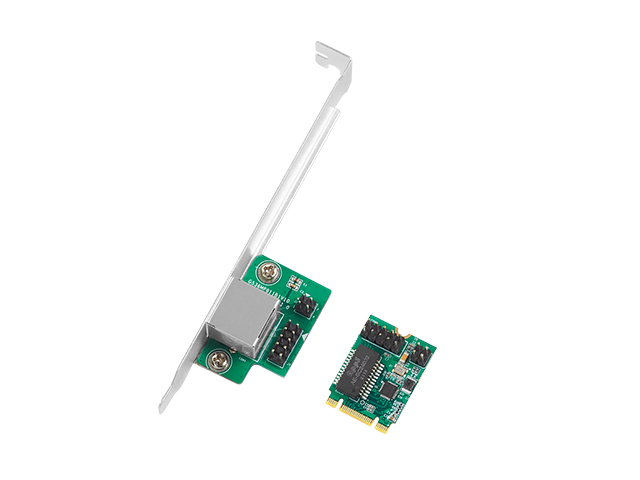

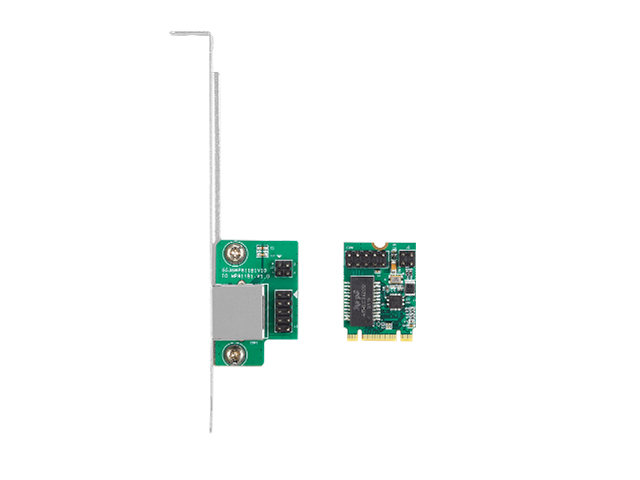

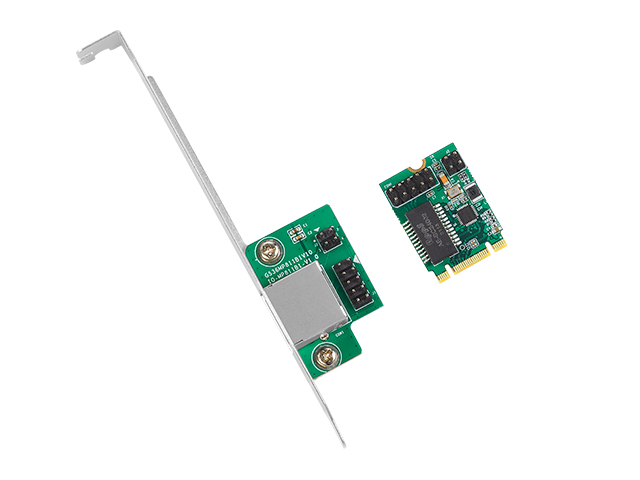

• 1 x M.2(B+M Key) to 10 /100/1000M Ethernet Card

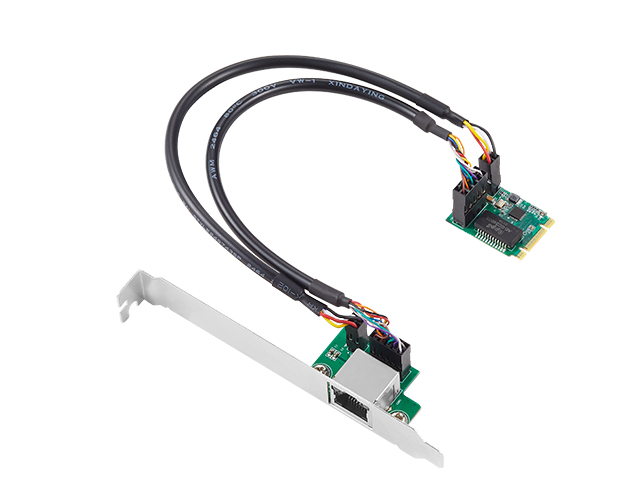

• 2 x connecting cable

• 1 x Low profile bracket

• 1 x User manual

Note: Contents may vary depending on country/market
