Features
• PCIe v2.1 (2.5 GT/s) x1, with Switching Voltage Regulator (iSVR)
• Integrated Non-Volatile Memory (iNVM)
• Platform Power Efficiency
— IEEE 802.3az Energy Efficient Ethernet (EEE)
— Proxy: ECMA-393 and Windows* logo for proxy offload
• Advanced Features:
— 0 to 70 °C commercial temperature
— Jumbo frames
— Interrupt moderation, VLAN support, IP checksum offload
— RSS and MSI-X to lower CPU utilization in multi-core systems
— Advanced cable diagnostics, auto MDI-X
— ECC – error correcting memory in packet buffers
— Four Software Definable Pins (SDPs)
Specification
• Chipset：Intel  I210
• Port number：1* RJ45
• Standard：IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3az、IEEE 802.3bz
• Network media：10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP
• Data rate：10/100/1Gbps
• Interface：MINI-PCI Express
• Auto MDIX：YES
• Full Duplex Support ：YES
• MTBF：376,212 Hours
• LED Indicator：Link/Act, Speed
• Operating Temperature: 0 ℃-70 ℃
• Relative Humidity: 10%-90%(non-condensing)
• Storage Temperature: -10℃-70℃
• Relative Humidity: 5%-90%(non-condensing)
System Requirements
• Windows®10(32/64), Win7 (32/64), Win8.1 (32/64)
• Windows Server® 2019,2016,2012, 2008
• LINU
• DOS
Package Contents

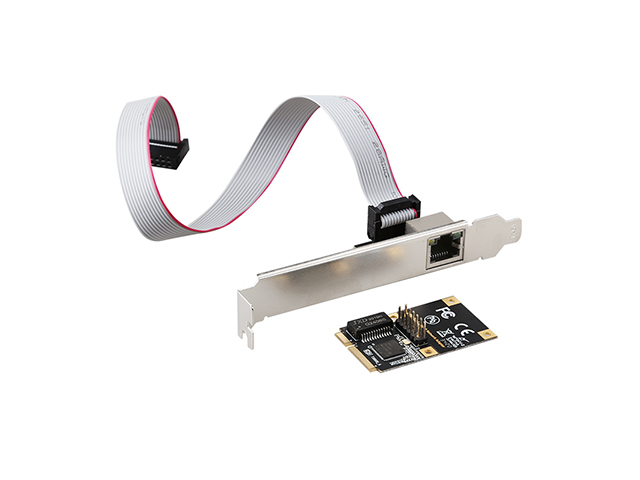

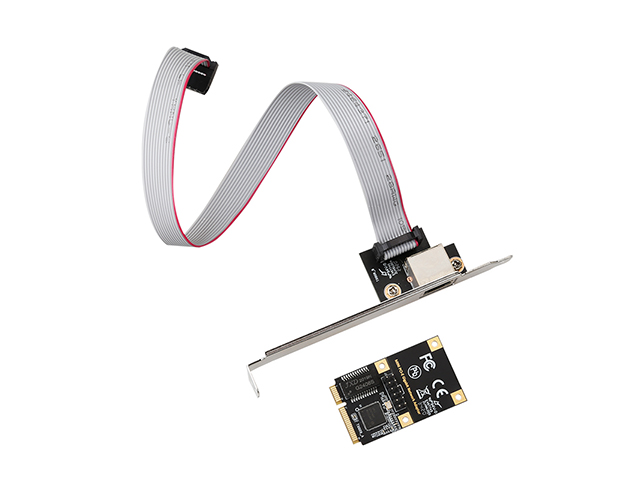

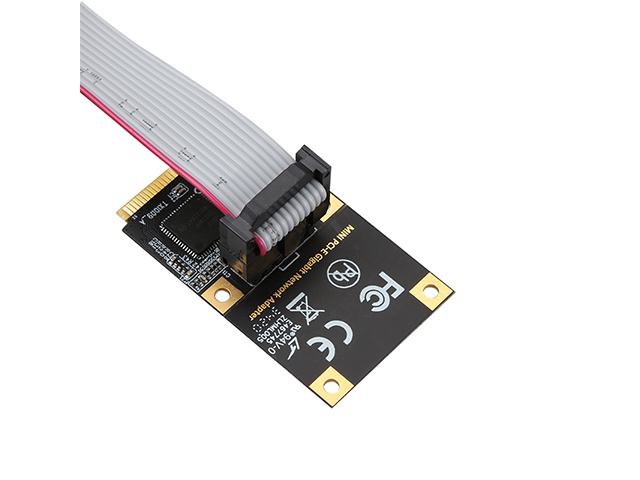

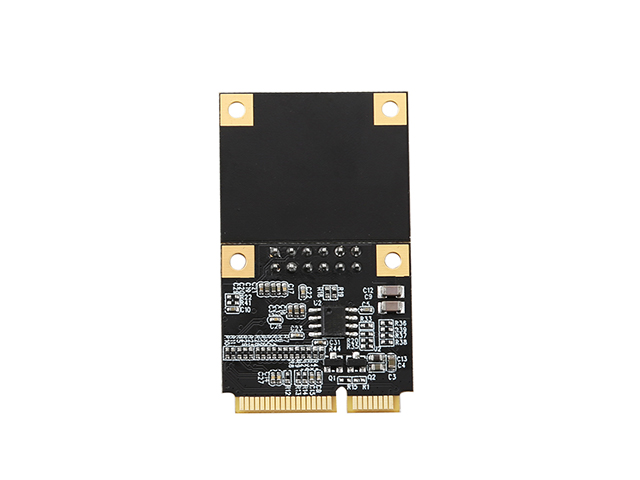

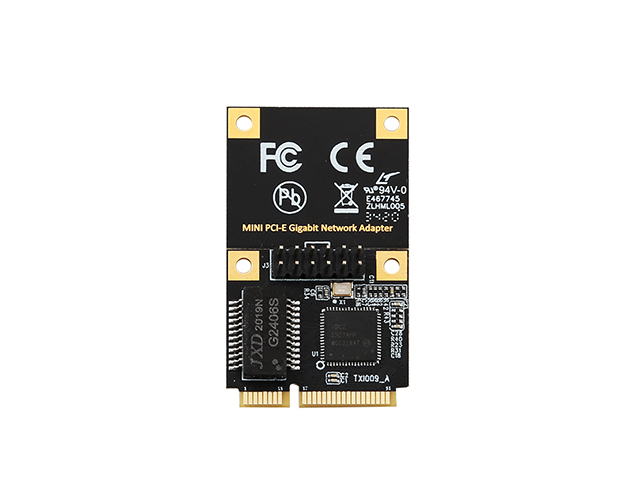

• 1 x Gigabit Ethernet Mini PCI-Express Card - Main card
• 1 x Gigabit Ethernet Mini PCI-Express Card - Daughter card
• 1 x User manual
• 1 x Gigabit Ethernet cable
