Product Overview

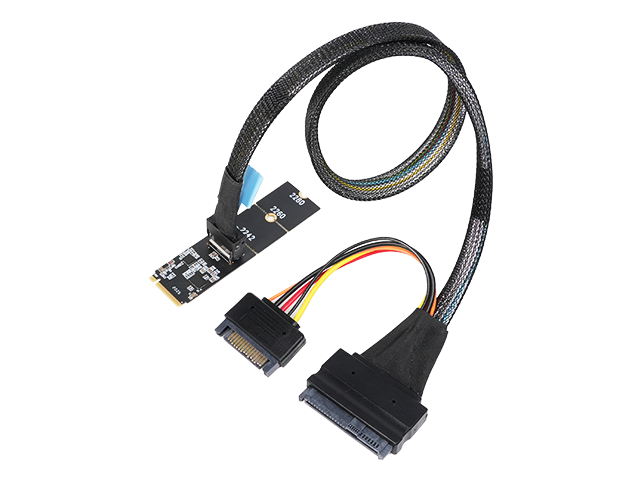

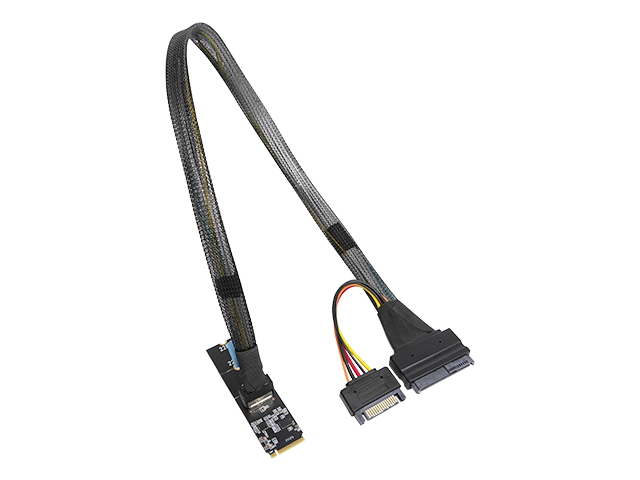

Featuring a PCIe 5.0 x4 interface, it delivers a total bandwidth of up to 128 Gbps and enables high-speed NVMe connectivity via the MCIO 4i cable. This adapter card offers a practical solution for platforms based on the PCIe Gen 5 architecture, allowing system builders to extend PCIe signals beyond the standard routing range of the motherboard while maintaining reliable NVMe performance in server and workstation environments.

Features

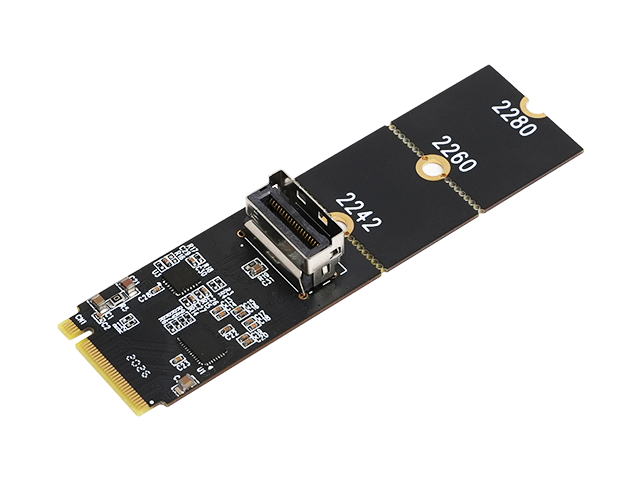

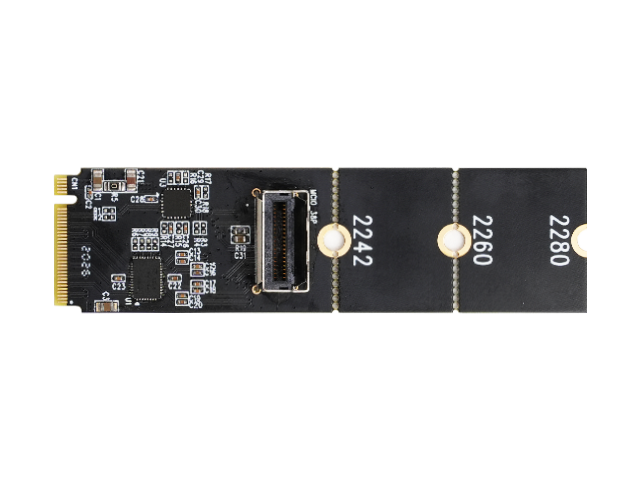

• Converts an M.2 NVMe (PCIe Gen 5 x4) slot to four MCIO outputs

• Features a built-in PCIe Gen 5 redriver to ensure high-speed signal transmission over long cable runs

• Equipped with a 100 MHz clock buffer, SMBus repeater, and power signal gating for robust system integration

• Suitable for removable storage workflows in workstations, servers, edge AI systems, and industrial PCs

• Supports data transfer rates up to 128 Gbps

• Compatible with PCIe Gen 2/3/4/5 M-Key M.2 slots

System Requirements

• Windows 10/11

• Linux
