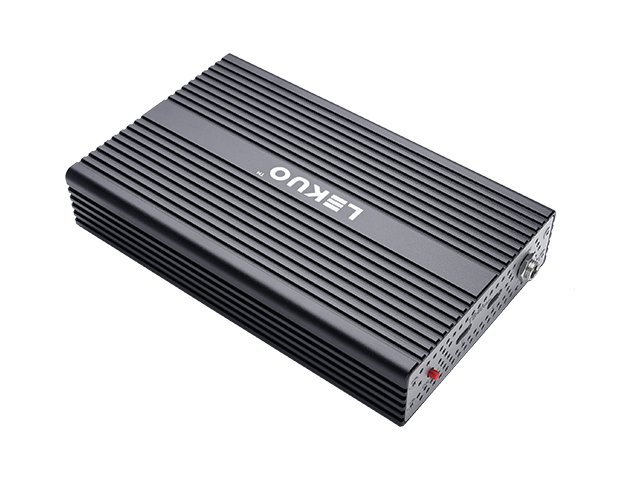

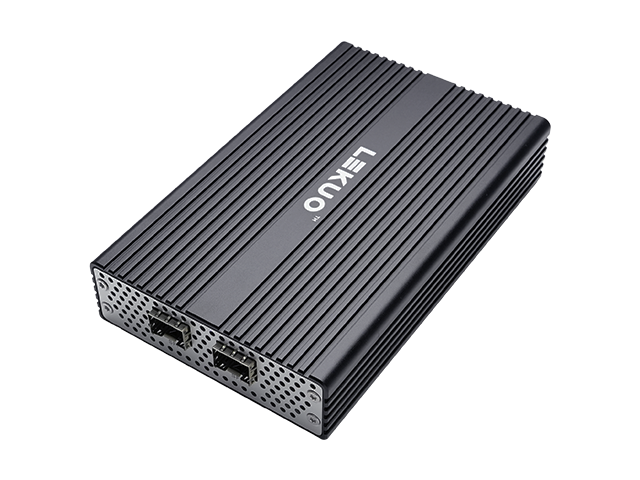

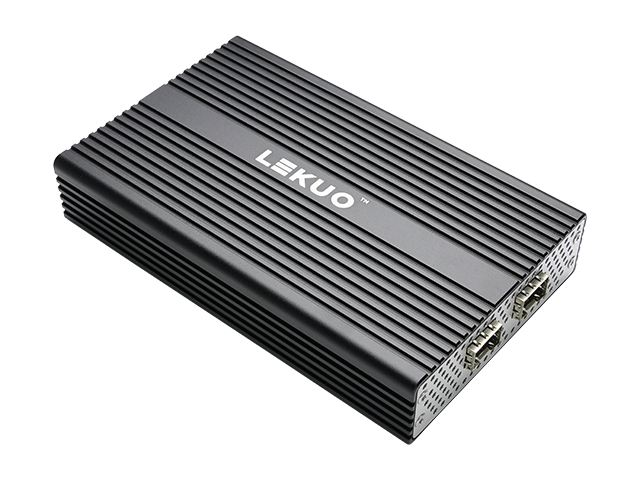

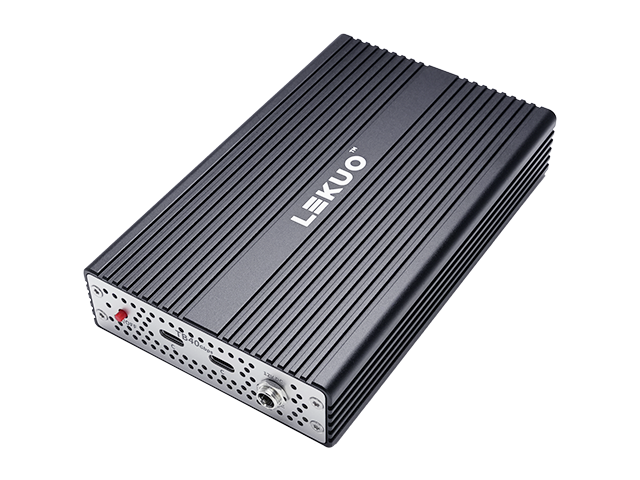

USB4 to Dual 10G SFP+ Network Adapter. This product adds two 10G SFP+ fiber optic network ports to your computer via a USB4 interface. It utilizes the Realtek RTL8127ATF chipset to deliver reliable 10Gbps network connectivity with low power consumption.
Features
• Supported network speeds: 10G/1000M LAN
• Standard typical operating power consumption (per port): 10GBASE-R (2.5W)
• Supports Wake-On-LAN
• Supports legacy PXE (minimum support) and EFI PXE
• Compliant with the following IEEE standards: IEEE 802.3, IEEE 802.3z; supports IEEE 802.1P Layer 2 priority coding; supports IEEE 802.1Q VLAN tagging; supports IEEE 802.1ad dual VLAN; supports IEEE 802.3ae (10G Base-R)
• Supports full-duplex flow control (IEEE 802.3x)
• Supports Jumbo Frames, up to 16KB
• Operating temperature range: 0°C to +70°C
• Storage temperature range: -55°C to +125°C
System Requirements
• Windows 11 / 10
• Linux kernel 4.x or later
Package Contents
• 1 × USB4 to Dual 10G SFP+ Network Adapter
• 1 × User Manual
• 1 × Type-C data cable
• 1 × Power Adapter
<p>Addressing pain points such as the lack of PCIe slots in laptops, NUC mini PCs, mobile workstations, and industrial equipment—which prevents the expansion of 10 Gigabit SFP+ ports—as well as the need for both single- and dual-link solutions and inconsistent system compatibility, LeKuo has introduced two USB4-to-10Gb SFP+ fiber network adapter solutions: the DTB3F11 (single-port) and the DTB3F22 (dual-port). Both products are equipped with the Realtek RTL8127ATF 10Gb network chip, enabling high-speed 10Gb fiber network expansion for devices via the USB4 interface.</p><p><strong><span style="font-size:20px;">Analysis of the Core Architecture: Same RTL8127ATF Platform, Different Design Targets</span></strong></p><p class="paragraph text-align-type-left" style="margin-top: 4px; margin-bottom: 4px;"><span style="font-size:12pt"><span style="font-family:等线"><span class="image-wrapper" style="display: inline-block; width: 874px;"><span style="overflow:hidden"><span style="transform:rotate(0deg)"><span style="height:409.3358530183727px"><img id="5c6e4b87" data-cke-saved-src="https://wdcdn.qpic.cn/MTY4ODg1NTU5NzYwMDM2MA_447495_pc45NFmybljZG2Sr_1780908725?w=2358&h=1188&type=image/jpeg" src="https://wdcdn.qpic.cn/MTY4ODg1NTU5NzYwMDM2MA_447495_pc45NFmybljZG2Sr_1780908725?w=2358&h=1188&type=image/jpeg" style="margin-top:-31px; width:874px; height:440.335px" thumb="https://wdcdn.qpic.cn/MTY4ODg1NTU5NzYwMDM2MA_447495_pc45NFmybljZG2Sr_1780908725?imageMogr2/thumbnail/1600x806/ignore-error/1"/></span></span></span></span></span></span></p><p>Both products are equipped with the Realtek RTL8127ATF dedicated Ethernet chip, which is optimized for SFP+ 10 Gigabit optical ports. It supports 10 Gbps line-rate forwarding at the hardware level, with a power consumption of just 2.5W. The chip delivers low latency, low CPU utilization, and high stability, and has been tested to achieve internal network transfer speeds of approximately 1.15 GB/s.</p><p><strong><span style="font-size:20px;">Differentiated single-port and dual-port designs for precise adaptation to various scenarios</span></strong></p><p>1. Optical port configuration: Single-port portable vs. dual-port multi-link</p><p>DTB3F11: Single USB4 40Gbps upstream port (compatible with Thunderbolt 3/4/5) + 1 SFP+ 10GbE port, bus-powered, ultra-portable</p><p>DTB3F22: Dual USB4 40Gbps ports (1 upstream + 1 downstream) + 2 SFP+ 10 Gigabit Ethernet ports, external power supply, supports USB4/Thunderbolt device expansion</p><table class="cke_show_border"><tbody><tr class="firstRow"><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px; background-color: rgb(245, 247, 250);" width="80"><p>Features</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px; background-color: rgb(245, 247, 250);" width="267"><p class="paragraph text-align-type-left"><span style="box-sizing:border-box"><span style="font-size:12pt"><span style="font-family:等线"><span data-font-family="PingFang SC" style="font-size:11pt"><span style="font-family:PingFang SC"><span style="font-weight:bold">DTB3F11</span></span></span></span></span></span></p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px; background-color: rgb(245, 247, 250);" width="314"><p class="paragraph text-align-type-left"><span style="box-sizing:border-box"><span style="font-size:12pt"><span style="font-family:等线"><span data-font-family="PingFang SC" style="font-size:11pt"><span style="font-family:PingFang SC"><span style="font-weight:bold">DTB3F22</span></span></span></span></span></span></p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="80"><p>Number of fiber ports</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="267"><p>1 SFP+ 10 Gigabit Ethernet port</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="314"><p>2 independent SFP+ 10 Gigabit Ethernet ports</p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="80"><p>Supported speeds</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="267"><p>10GBASE-R/1000BASE-X auto-negotiation</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="314"><p>10GBASE-R/1000BASE-X auto-negotiation</p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="80"><p>Core Strengths</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="267"><p>Single-port, high value for money, meets basic 10 Gigabit requirements</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="314"><p>Dual links operate independently, supporting link aggregation and separation of internal and external networks, as well as expansion via USB4/Thunderbolt devices,</p></td></tr></tbody></table><p>2. Interfaces and Cascading: Pure Network Expansion vs. Network + Peripherals Combo</p><p></p><p>●DTB3F11: Retains only the essential USB4 upstream port and focuses on 10 Gigabit Ethernet expansion, making it ideal for laptops with extremely limited ports.</p><p>●DTB3F22: Equipped with a USB4 downstream port, it supports USB4/Thunderbolt device expansion: You can daisy-chain Thunderbolt displays, docking stations, external hard drives, and other peripherals to achieve a “10 Gigabit Ethernet + peripheral expansion” two-in-one solution, completely resolving the issue of insufficient Thunderbolt ports.</p><p>3. Power Supply and Power Consumption: Bus-Powered Portability vs. External Stability</p><table class="cke_show_border"><tbody><tr class="firstRow"><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px; background-color: rgb(245, 247, 250);" width="80"><p>Features</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px; background-color: rgb(245, 247, 250);" width="256"><p class="paragraph text-align-type-left"><span style="box-sizing:border-box"><span style="font-size:12pt"><span style="font-family:等线"><span data-font-family="PingFang SC" style="font-size:11pt"><span style="font-family:PingFang SC"><span style="font-weight:bold">DTB3F11</span></span></span></span></span></span></p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px; background-color: rgb(245, 247, 250);" width="270"><p class="paragraph text-align-type-left"><span style="box-sizing:border-box"><span style="font-size:12pt"><span style="font-family:等线"><span data-font-family="PingFang SC" style="font-size:11pt"><span style="font-family:PingFang SC"><span style="font-weight:bold">DTB3F22</span></span></span></span></span></span></p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="80">Power Supply</td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="256"><p>USB4 Power Delivery</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="270"><p>12V/3A External Power Adapter</p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="80">Typical Power Consumption</td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="256"><p>Total power consumption is approximately 3.9 W</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="270"><p>Total power consumption is approximately 7.4 W</p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="80">Key Advantages</td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="256"><p>No external power source required; plug-and-play; highly portable</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="270"><p>Power supply is sufficient, and both optical ports operate stably under full load simultaneously.</p></td></tr></tbody></table><p><span style="line-height:1.7"><span data-font-family="default" style="font-size:14pt"><span style="font-weight:bold"></span></span></span></p><p>4. System Compatibility:</p><ul class=" list-paddingleft-2"><li><p>DTB3F11 and DTB3F22: Compatible with Windows 10/11 and Linux; currently not compatible with macOS</p></li></ul><p>5. Enterprise-Grade Features: Comprehensive Support Across All Models</p><p>Both products offer a full suite of enterprise-grade networking features:</p><p>● Support for 16KB jumbo frames, significantly reducing protocol overhead</p><p>● Support for IEEE 802.1Q VLAN and 802.1ad Q-in-Q dual VLAN</p><p>● Support for Wake-on-LAN remote wake-up and PXE+EFI dual-mode network booting</p><p>● Supports full-duplex flow control (IEEE 802.3x) for lossless data transmission</p><p>Real-world Scenarios: Choose Based on Needs to Precisely Address 10GbE Upgrade Challenges</p><p>Scenario 1: 10GbE Upgrade for Personal Laptops/Mobile Office</p><p>Requirements: For business travel and home use, requires a portable 10 Gigabit Ethernet connection without the need for an external power source</p><p>Recommended Product: DTB3F11</p><p>Solution Benefits: Bus-powered, no external power required; compact and portable; simply plug into a Thunderbolt port to use</p><p>Performance: Direct 10GbE fiber connection between laptop and NAS; large file backup speeds 10 times faster than Gigabit; smooth, lag-free online preview of 4K footage</p><p>Scenario 2: Multi-device connectivity in a content creation studio</p><p class="paragraph text-align-type-left" style="margin-top: 4px; margin-bottom: 4px;"><span style="font-size:12pt"><span style="line-height:1.7"><span style="font-family:等线"><span class="image-wrapper" style="display: inline-block; width: 686px;"><span style="overflow:hidden"><span style="transform:rotate(0deg)"><span style="height:385.8750656167979px"><img id="324c57b3" data-cke-saved-src="https://wdcdn.qpic.cn/MTY4ODg1NTU5NzYwMDM2MA_844565_LVdgteDqkXzvAR6C_1777527344?w=1920&h=1080&type=image/jpeg" src="https://wdcdn.qpic.cn/MTY4ODg1NTU5NzYwMDM2MA_844565_LVdgteDqkXzvAR6C_1777527344?w=1920&h=1080&type=image/jpeg" style="width:686px; height:385.875px" thumb="https://wdcdn.qpic.cn/MTY4ODg1NTU5NzYwMDM2MA_844565_LVdgteDqkXzvAR6C_1777527344?imageMogr2/thumbnail/1600x900/ignore-error/1"/></span></span></span></span></span></span></span></p><p>Requirements: Simultaneous connection to a NAS media library and the office network; requires external peripherals such as monitors and hard drives</p><p>Recommended Product: DTB3F22</p><p>Solution Benefits: Dual optical ports connect the NAS and switch, respectively; the Thunderbolt downstream port daisy-chains the monitor and docking station, resulting in a clean and efficient workspace</p><p>Performance: Real-time preview of multi-track 4K footage and lag-free rendering output; simultaneous connection of peripherals and network devices without frequent plugging and unplugging</p><p>Scenario 3: High-Speed NAS Interconnection and Link Aggregation</p><p class="paragraph text-align-type-left" style="margin-top: 4px; margin-bottom: 4px;"><span style="font-size:12pt"><span style="line-height:1.7"><span style="font-family:等线"><span class="image-wrapper" style="display: inline-block; width: 715px;"><span style="overflow:hidden"><span style="transform:rotate(0deg)"><span style="height:360.4770603674541px"><img id="a3cf36de" data-cke-saved-src="https://wdcdn.qpic.cn/MTY4ODg1NTU5NzYwMDM2MA_556685_xcPDbC8z7-2n2aXV_1777521252?w=2358&h=1327&type=image/jpeg" src="https://wdcdn.qpic.cn/MTY4ODg1NTU5NzYwMDM2MA_556685_xcPDbC8z7-2n2aXV_1777521252?w=2358&h=1327&type=image/jpeg" style="margin-top:-35px; width:715px; height:402.439px" thumb="https://wdcdn.qpic.cn/MTY4ODg1NTU5NzYwMDM2MA_556685_xcPDbC8z7-2n2aXV_1777521252?imageMogr2/thumbnail/1600x900/ignore-error/1"/></span></span></span></span></span></span></span></p><p>Requirements: Increase NAS transfer speeds, enable concurrent multi-user access without bottlenecks, and support link redundancy</p><p>Recommended Product: DTB3F22</p><p>Solution Benefits: Dual fiber ports support link aggregation, increasing total bandwidth to 20 Gbps without occupying the NAS’s native ports</p><p>Actual Performance: Multi-user simultaneous access to the NAS and large file sharing speeds are doubled; a single link failure does not affect network connectivity</p><p>Scenario 4: Industrial Edge Computing Node</p><p class="paragraph text-align-type-left" style="margin-top: 4px; margin-bottom: 4px;"><span style="font-size:12pt"><span style="line-height:1.7"><span style="font-family:等线"><span class="image-wrapper" style="display: inline-block; width: 764px;"><span style="overflow:hidden"><span style="transform:rotate(0deg)"><span style="height:372.5289238845144px"><img id="b5b66d7c" data-cke-saved-src="https://wdcdn.qpic.cn/MTY4ODg1NTU5NzYwMDM2MA_407401_-g1o-ExPojoPKS9N_1778137927?w=726&h=408&type=image/jpeg" src="https://wdcdn.qpic.cn/MTY4ODg1NTU5NzYwMDM2MA_407401_-g1o-ExPojoPKS9N_1778137927?w=726&h=408&type=image/jpeg" style="margin-top:-57px; width:764px; height:429.354px" thumb="https://wdcdn.qpic.cn/MTY4ODg1NTU5NzYwMDM2MA_407401_-g1o-ExPojoPKS9N_1778137927?w=726&h=408&type=image/jpeg"/></span></span></span></span></span></span></span></p><p>Requirements: A stable 10 Gigabit network connection is required in industrial environments, with wide-temperature operation and support for multi-link redundancy.</p><p>Recommended Product: DTB3F22</p><p>Solution Benefits: All-metal passive cooling, wide-temperature operation from 0°C to 85°C, and dual optical ports for link redundancy.</p><p>Actual Performance: High-speed data backhaul from edge nodes, with the device operating stably 24/7.</p><p>Key Specifications Comparison Chart: A Visual Guide to the Differences Between the Two Products</p><table class="cke_show_border"><tbody><tr class="firstRow"><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px; background-color: rgb(245, 247, 250);" width="89"><p>Performance Specifications</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px; background-color: rgb(245, 247, 250);" width="249"><p class="paragraph text-align-type-left"><span style="box-sizing:border-box"><span style="font-size:12pt"><span style="font-family:等线"><span data-font-family="PingFang SC" style="font-size:11pt"><span style="font-family:PingFang SC"><span style="font-weight:bold">DTB3F11</span></span></span></span></span></span></p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px; background-color: rgb(245, 247, 250);" width="337"><p class="paragraph text-align-type-left"><span style="box-sizing:border-box"><span style="font-size:12pt"><span style="font-family:等线"><span data-font-family="PingFang SC" style="font-size:11pt"><span style="font-family:PingFang SC"><span style="font-weight:bold">DTB3F22</span></span></span></span></span></span></p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="89"><p>Number of optical ports</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="249"><p>1 SFP+ 10 Gigabit Ethernet port</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="337"><p>2 SFP+ 10 Gigabit Ethernet ports</p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="89"><p>USB4 port</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="249"><p>1 (Uplink only)</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="337"><p>2 (1 upstream + 1 downstream in cascade)</p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="89"><p>Power Supply Method</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="249"><p>USB4 Power Delivery</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="337"><p>12V/3A external power supply</p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="89"><p>Typical power consumption</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="249"><p>Total power consumption is approximately 3.9 W</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="337"><p>Total power consumption is approximately 7.4 W</p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="89"><p>System Support</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="249"><p class="paragraph text-align-type-left"><span style="box-sizing:border-box"><span style="font-size:12pt"><span style="font-family:等线"><span data-font-family="PingFang SC" style="font-size:11pt"><span style="font-family:PingFang SC">Windows10/11、Linux4</span></span></span></span></span></p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="337"><p class="paragraph text-align-type-left"><span style="box-sizing:border-box"><span style="font-size:12pt"><span style="font-family:等线"><span data-font-family="PingFang SC" style="font-size:11pt"><span style="font-family:PingFang SC">Windows10/11、Linux</span></span></span></span></span></p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="89"><p>Lightning Cascade</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="249"><p>Not supported</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="337"><p>Support</p></td></tr><tr><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="89"><p>Core Positioning</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="249"><p>Personal, portable, single-link 10 Gigabit</p></td><td colspan="1" rowspan="1" style="border-width: 1.33333px; border-style: solid; border-color: rgb(239, 239, 239); vertical-align: middle; padding-top: 10px; padding-bottom: 10px;" width="337"><p>Professional studio, dual-link aggregation, peripheral expansion</p></td></tr></tbody></table><p>Summary</p><p>The LeKuo DTB3F11 and DTB3F22 USB4-to-10Gb SFP+ fiber network adapters are both based on the same high-performance RTL8127ATF chip. Through differentiated interface designs, power supply solutions, and system compatibility, they precisely address the 10Gb fiber network upgrade needs of different users:</p><p>● For portability and single-link requirements: The DTB3F11 is the top choice, featuring ultra-low power consumption of 2.5W and bus-powered operation for plug-and-play functionality</p><p>● For dual-port link aggregation, USB4/Thunderbolt device expansion, and industrial-grade wide-temperature operation: The DTB3F22 is the top choice, featuring dual Ethernet ports and daisy-chain functionality for full compatibility with professional scenarios</p><p>No need to open the case or use a PCIe slot—simply plug it into a Thunderbolt port to enjoy the high speed and stability of a 10 Gigabit fiber network. This is the optimal solution for 10 Gigabit upgrades on devices without PCIe slots.</p><p><br/></p>
