• Full 10Gbps performance requires a USB 3.2 Gen2x2 (20Gbps) host interface • USB 3.2 Gen2 (10Gbps) ports (including some Thunderbolt ports in USB-only mode) cap throughput at ~7-7.5Gbps due to bandwidth limits • USB 3.1 (5Gbps) ports cap maximum throug
ModelDR59R11
Input InterfaceUSB Type-C
Output Interface1*RJ45 10 Gigabit Ethernet port
Motherboard Slot
Transmission Rate10Gbps
Auxiliary AccessoriesType-C Data Cable

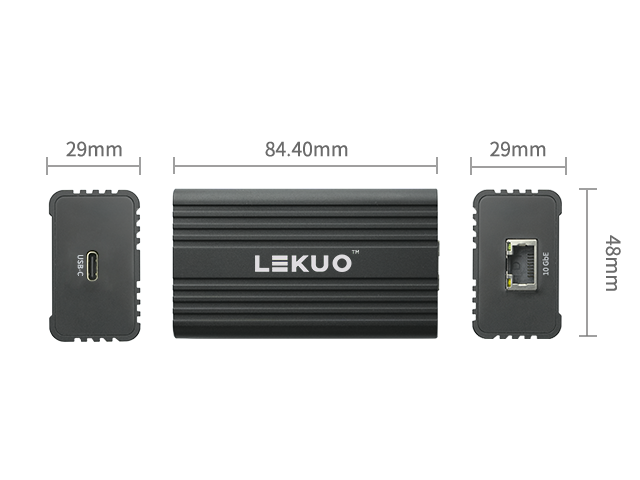

Product Size84.4 X 48 X 29mm

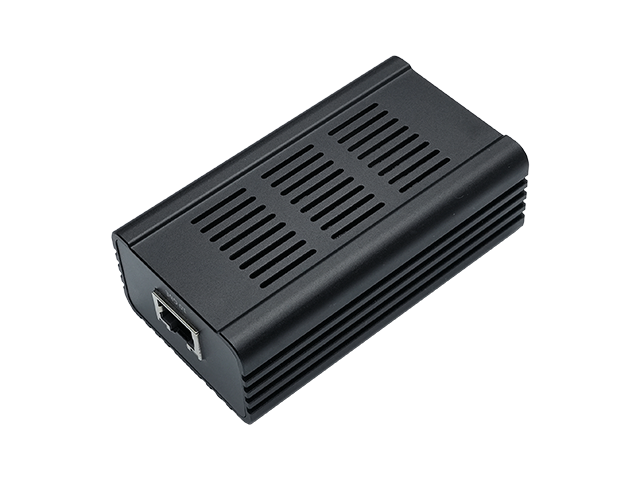

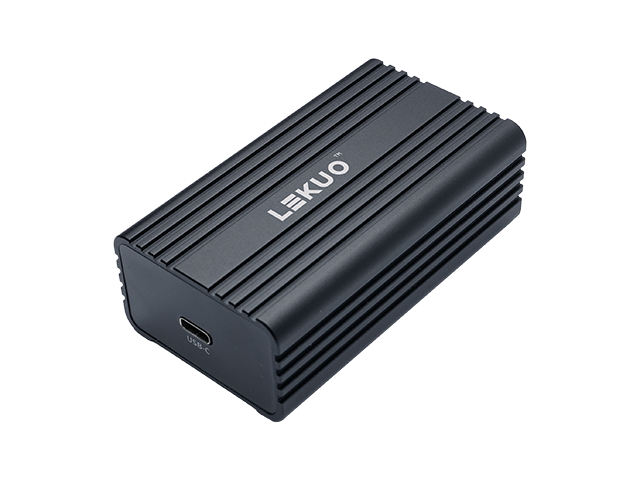

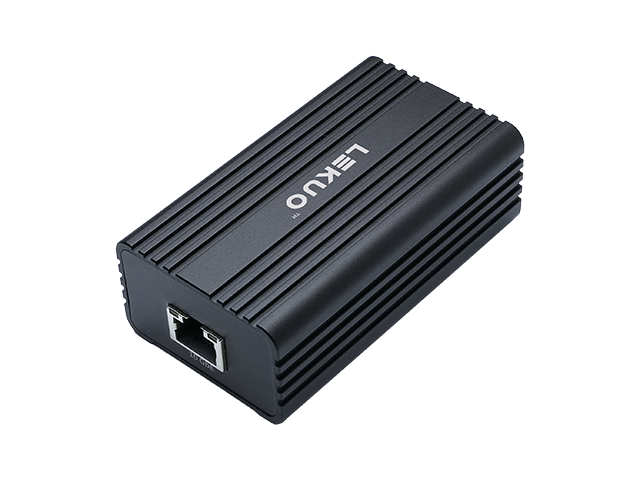

This product utilizes the Realtek RTL8159 chipset and is a high-performance USB-to-10G Ethernet adapter. It provides 10Gbps connectivity via a standard RJ45 port and is compatible with 10G/5G/2.5G/Gigabit/100M networks. It supports features like Wake-on-LAN, Jumbo Frames, and more, effectively enhancing network performance while reducing CPU utilization.Important Note: This product is a pure USB device and only supports the USB protocol. To achieve the full 10Gbps network performance, it must be connected to a host interface that provides a USB 3.2 Gen2x2 (20Gbps) signal.If connected to an interface that only supports USB 3.2 Gen2 (10Gbps)—including some Thunderbolt ports operating only in USB mode—the maximum throughput is limited to approximately 7-7.5Gbps due to bandwidth constraints.When connected to a port that only supports USB 3.1 (5Gbps), the maximum throughput is approximately 3.54Gbps.
Features
• Product Physical Interface: USB Type-C
• 1x RJ45 10 Gigabit Ethernet port, supporting 10/100/1000/2500/5000/10000Mbps network transmission.
• USB 3.2 Gen2x2 (20Gbps) downstream throughput: approx. 9.45Gbps (10G full-speed transmission)
• Approximately 7.2Gbps throughput under USB 3.2 Gen2 (10Gbps) (bandwidth-limited)
• Approximately 3.54Gbps throughput under USB 3.1 (5Gbps) (bandwidth-limited)
• Supports IPv4/IPv6/TCP/UDP checksum, ARP & NS protocol offloading
• Supports up to 16KB jumbo frames for optimized file transfer efficiency
• Supports Wake-on-LAN network wakeup and RealWoW™ remote wakeup
• Supports Windows/Mac OS/Linux systems
Package Included
• 1 x 10GbE USB Ethernet Adapter
• 1 x User Manual
• 1 x Type-C Data Cable
