This product expands two independent PCIe x4 slots through a single USB4 interface. By installing two PCIe-to-4-port SATA expansion cards, the hub can be converted into an 8-port SATA 6Gbps storage expansion hub, supporting connections for up to 8 SATA-in
ModelAA24S81
Input InterfaceUSB4 Type-C (compatible with Thunderbolt 3/4/5)
Output Interface2 x SFF8088 (expandable to 8 SATA ports)
Motherboard SlotUSB4 Type-C (compatible with Thunderbolt 3/4/5)
Transmission Rate
Auxiliary Accessories

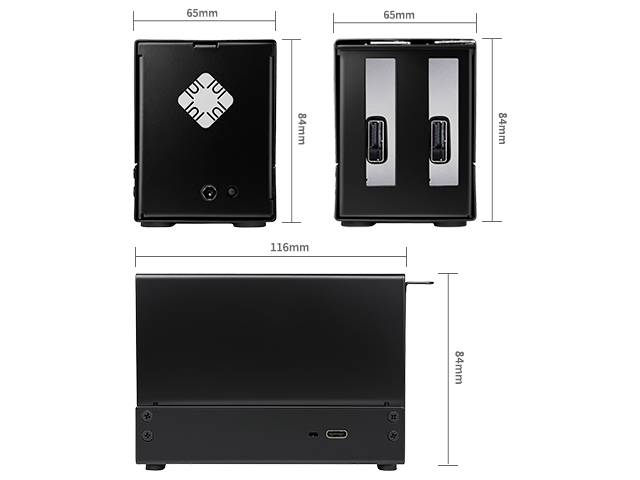

Product Size116x65x84mm
Product Overview
This product expands two independent PCIe x4 slots through a single USB4 interface. By installing two PCIe-to-4-port SATA expansion cards, the hub can be converted into an 8-port SATA 6Gbps storage expansion hub, supporting connections for up to 8 SATA-interfaced solid-state drives (SSDs) or hard disk drives (HDDs). Ideal for high-speed external storage arrays, media libraries, video editing cache pools, data backup, and capacity expansion scenarios.
Features
• Serial ATA Specification: Compliant with Serial ATA 3.1 specification, compatible with PCIe 2.0 specification.
• Communication Rates: Supports 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps communication rates.
• Hot-Swap and Hot-Swap Capability: Supports hot-swap and hot-swap functionality, allowing users to replace hard drives without system reboot.
• External Interface: Features one external SFF8088 interface.
• Native Command Queuing (NCQ): Supports NCQ to enhance drive performance.
• AHCI 1.0 Programming Interface: Supports AHCI 1.0 programming interface registers for the SATA controller.
• Power Management: Supports active power management.
• Error Handling: Supports error reporting, recovery, and correction.
• Message Signaled Interrupts (MSI): Supports MSI for optimized system responsiveness.
• Transmitter Signal Level: Supports programmable transmitter signal level.
• Port Multiplier: Supports FIS switching based on port multiplier switches or commands.
• Power Management States: Supports partial and sleep power management states.
• SATA Generation Support: Supports SATA Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
• Interleaved Boot: Supports interleaved boot functionality.
• Note: PM (Power Management) features are not supported in RAID configurations.
System Requirements
• Windows 10/11, macOS, Linux

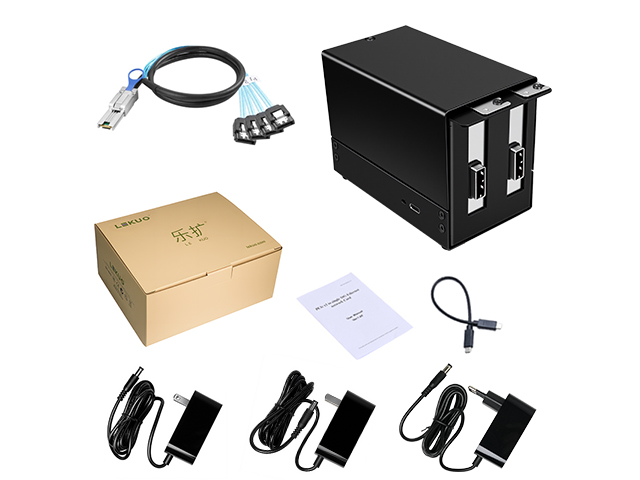

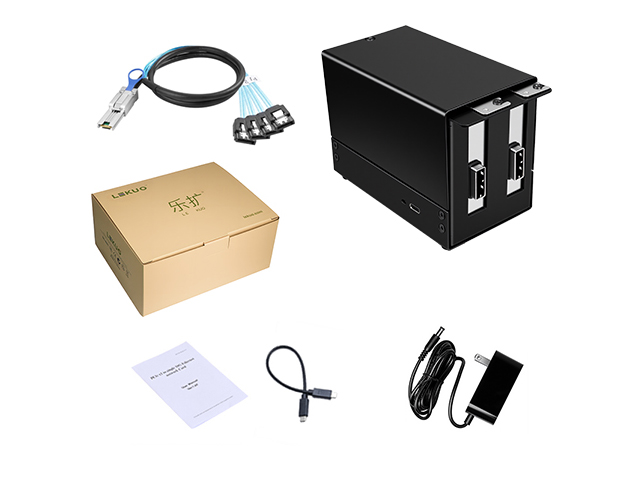

Package Contents
• 1 × USB4 40G to 8-Port SATA Expansion Card
• 1 × User Manual
• 1 × 12V 3A Power Adapter
• 1 × 40Gbps Data Cable
• 1 × SFF-8088 to 4×SATA Cable
