Product Overview

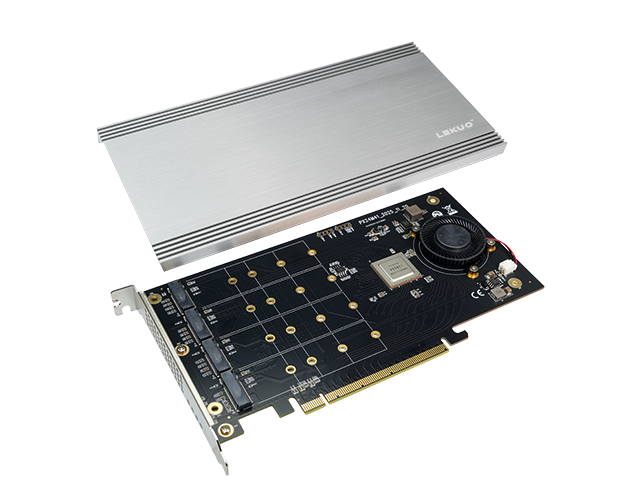

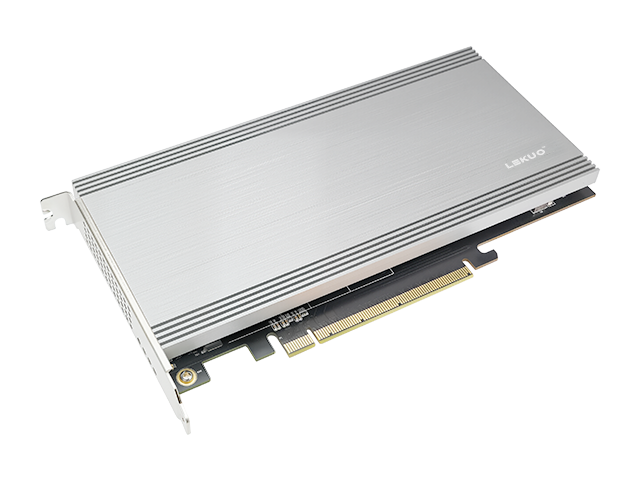

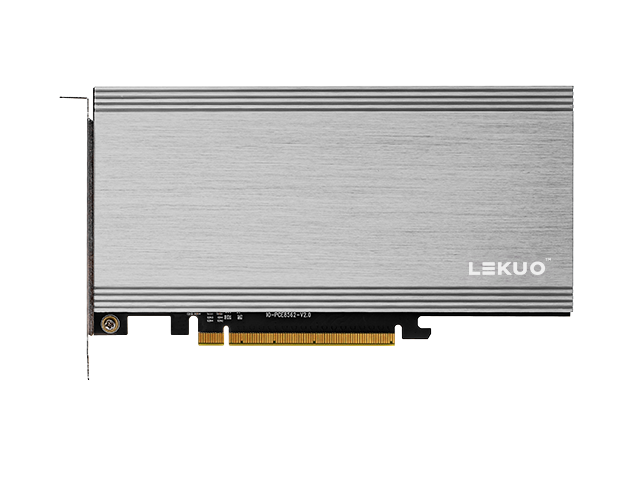

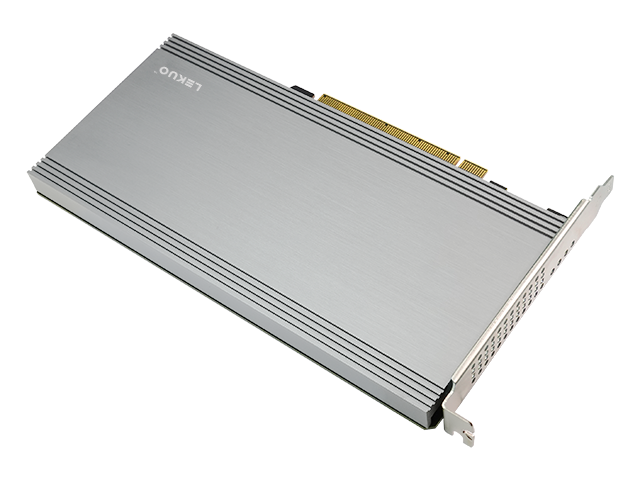

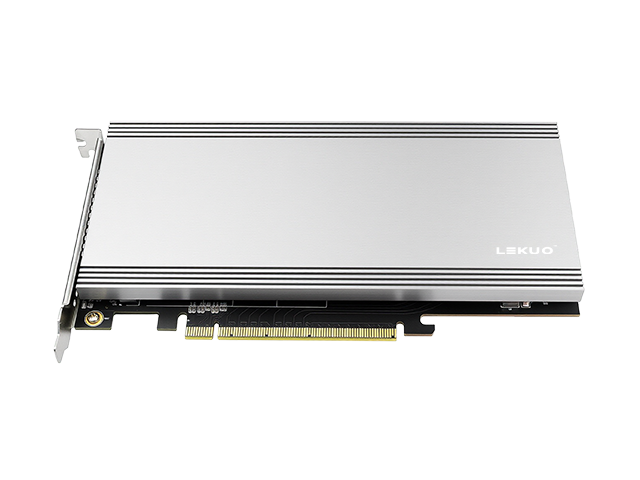

This high-performance PCle 4.0 xa expansion card (requires a PCle x16 physical slot on the motherboard) provides four M.2 NVMe slots via PC le 4.0 xa connectivity. Featuring PCle Switch architecture, it enables independent recognition and concurrent access for four NVMe SSDs without motherboard channel bifurcation. All SSDs share approximately 16 GB/s total bandwidth, making it ideal for video ed巾ng, high-performance computing, and multi-drive storage acceleration

Features

• Supports PCIe x16 slots

• Supports PCIe 4.0/3.1/3.0, PCIe 2.0 motherboards

• Compliant with PCI Express M.2 Specification 1.0, 1.1

• Delivers 16GT/s per lane

• Supports NVMe SSDs in 2230, 2242, 2260, and 2280 form factors

• 4 x 2280 M.2 NVMe slots (dedicated PCIe 4.0 bandwidth per M.2 SSD)

• 4 x screw holes for securing NVMe SSD cards (compatible with 2230/2242/2260/2280)

•4 screw holes for securing PCB boards

•Easy installation, no drivers required

System Requirements

•Windows 10, Windows Server 2008, 2012, 2016, 2019, Linux Kernel 4.6.4 or later

•Mac OS

Package Contents

•1 x PCIe 4.0 x16 to 4x M.2 NVMe Adapter Card

•1 x User Manual, 1 x Screwdriver

•4 x Mounting Pins

•4 x Thermal Silicone Pads / Thermal Pads

•10 x Mounting Screws
