Features

•  Supports bus widths: Gen3 x4，x8，x16

•  Supports line rates up to 8.0 GT/s per lane

•  Support 10G/5G/2.5G/1000M/100M/10M LAN speed

•  1.79W typical 10GBASE-T operating power per port: 100 meters of Cat 6A

•  1.37W typical 5GBASE-T operating power per port

•  1.21W typical 2.5GBASE-T operating power per port

•  0.92W typical 1GBASE-T operating power per port

•  0.54W typical 100BASE-T operating power per port

•  0.29W typical 10BASE-T operating power per port

•  1W typical 1GBASE-T operating power per port

•  Supports ECMA-393 ProxZzzy Standard for sleeping hosts

•  Supports LTR(Latency Tolerance Reporting)

•  Support Wake-On-LAN and‘RealWoW’

•  Supports Legacy PXE (minimal support) and EFI PXE

•  Supports 32--set 128-byte Wake-Up Frame pattern exact matching

•  Supports Microsoft WPI(Wake Packet Indication)

•  Compatible with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE802.3bz

•  Supports Synchronous Ethernet and Precision Time Protocol (PTP) including IEEE 1588v1,IEEE 1588v2,IEEE 802.1AS

•  Supports IEEE 802.1P Layer 2 Priority Encoding

•  Supports IEEE 802.1Q VLAN tagging

•  Supp0rts IEEE 802.1 ad Double VLAN

•  Supports IEEE 802.3az (Energy Efficient Ethernet)

•  Supports IEEE 802.3an (10GBase-T)

•  Supports Full Duplex flow control (IEEE 802.3x)

•  Jumbo frame support up to 16 KB

•  Microsoft NDIS5,NDIS6 Checksum Offload (IPv4,IPv6,TCP,UDP) and Segmentation Task-offload (Large send v1 and Large send v2) Supports

•  Supports quad core Receive -Side Scaling (RSS)

•  Supports Protocol Offload (ARP & NS)

•  Operation Temperature :0°C to +70°C；

•  Storage Temperature：-55°C to +125°C

System Requirements

• Windows 11/10

• Linux kernel 2.4.x and 2.6.x or later

Package Contents

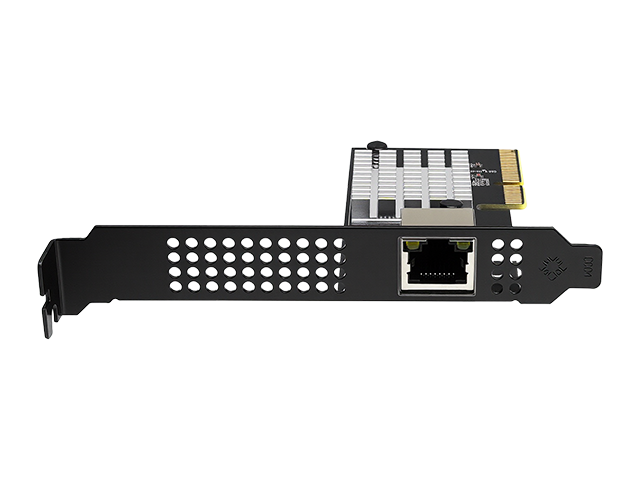

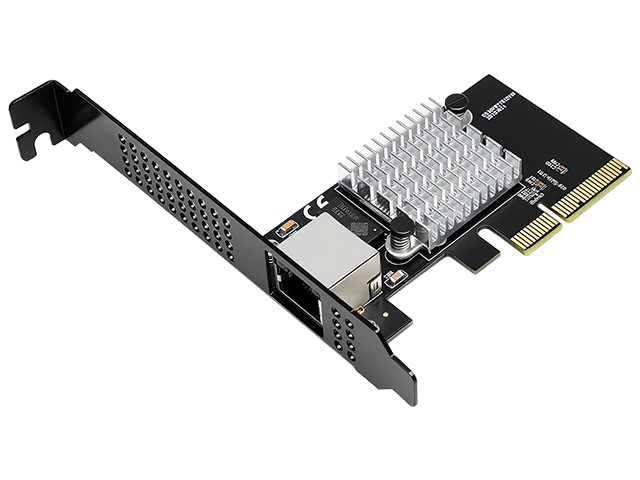

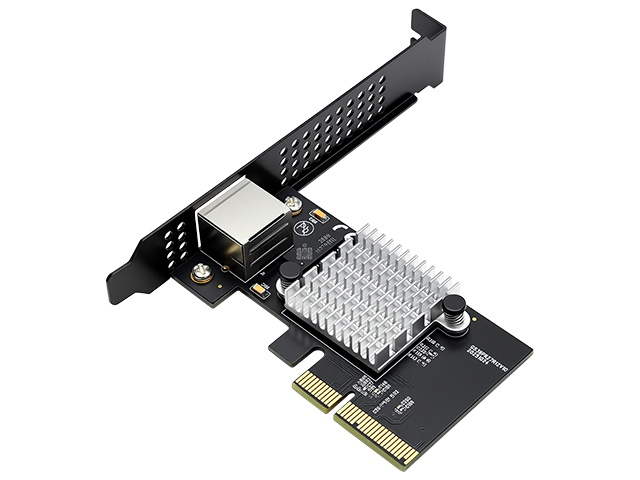

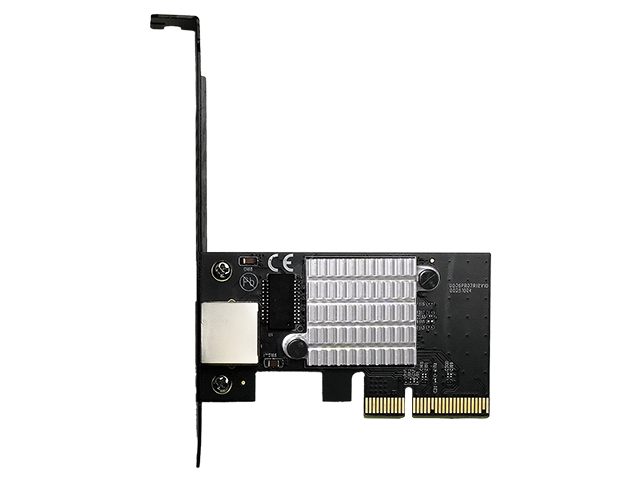

•  1 × PCIe x4 to single 10G Ethernet network Card

•  1 × User Manual

•  1 x  Low Profile Bracket
