As computing devices continue to evolve toward miniaturization and high-density designs, compact platforms such as ITX motherboards, Mini-PCs, and embedded systems have become mainstream for a wide array of applications. However, this extreme compression of physical space introduces significant challenges: traditional I/O expansion capabilities, particularly for storage interfaces, have become severely limited. The scarcity or complete absence of PCIe slots makes the deployment of multi-drive storage arrays in these systems a formidable task.

Emerging Design Challenges:

PCIe Resource Conflict: In single-slot ITX systems, the PCIe slot is almost exclusively occupied by the GPU, leaving no room for other expansion cards.

Underutilization of M.2 Slots: In most scenarios, the valuable M.2 slots on a motherboard are used solely for connecting NVMe SSDs, leaving their underlying PCIe channel capabilities underleveraged.

Physical Space Constraints: The height and length of traditional expansion cards are incompatible with ultra-slim or non-standard industrial chassis designs.

To address this series of challenges, the IO-M2F9236-4IR M.2 (B+M Key) to 4-Port SATA 6G RAID Controller was engineered. This is not a simple interface adapter; it is a disruptive restructuring of the storage expansion paradigm, designed to transform a single, underutilized M.2 slot into a fully-featured, high-performance hardware RAID hub.

Core Technical Advantages

1. A Revolution in Form Factor: Ultimate Integration via the M.2 Interface

Zero PCIe Slot Occupancy: The product's greatest innovation is its direct utilization of a motherboard's M.2 slot, effectively integrating storage expansion natively. This completely liberates the system's only, or scarce, PCIe x16/x8/x4 slot, allowing it to be dedicated to a GPU, high-speed network card, or other critical peripherals, thereby optimizing the entire system's resource allocation.

Standard 2280 Form Factor: Designed to the standard 80x22mm M.2 specification, it installs perfectly on any desktop, NUC, or industrial motherboard that supports this form factor, eliminating any concerns about chassis height, length, or bracket compatibility.

Broad B+M Key Compatibility: The interface is designed with a B+M Key, ensuring physical compatibility with both B-keyed and M-keyed M.2 slots that support PCIe lanes, offering exceptional platform adaptability.

2. Uncompromised Performance: High-Efficiency I/O Throughput via the PCIe Bus

PCIe 2.0 x2 Bus Bandwidth: Leveraging the PCIe 2.0 x2 lanes provided by the M.2 interface, the controller offers a theoretical bus bandwidth of up to 10Gbps (1GB/s). This bandwidth is more than sufficient to meet the peak performance demands of a four-drive SATA 6Gb/s hard disk drive (HDD) array and can effectively support the concurrent operation of multiple solid-state drives (SSDs) under typical mixed-workload scenarios, ensuring the controller itself does not become a system bottleneck.

Independent SATA III Channels: The controller provides four independent 6Gb/s physical channels for each of its SATA ports. This design ensures that no internal bandwidth contention occurs during concurrent I/O operations across multiple drives, allowing each connected drive to communicate with the controller at its full, point-to-point speed.

3. Full-Fledged Functionality: A Hardware RAID Engine in a Compact Form

The IO-M2F9236-4IR integrates a dedicated hardware RAID processor, inheriting the full professional feature set of its PCIe-based counterparts and completely offloading complex array computations from the host CPU:

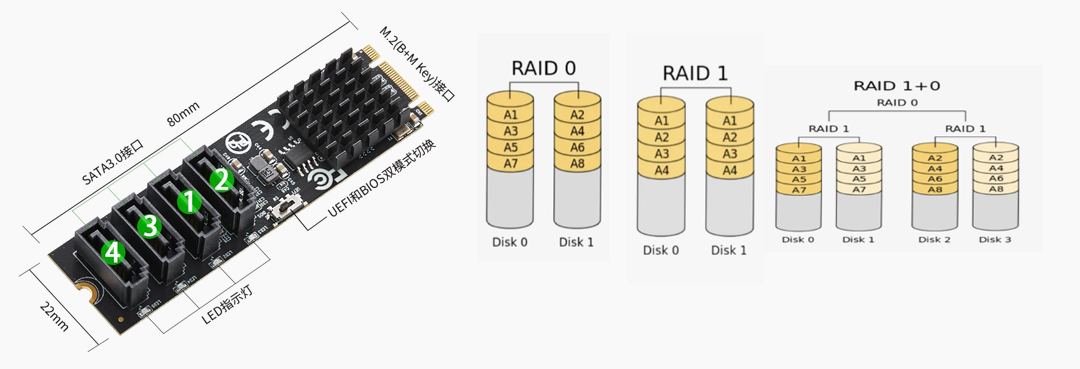

Professional-Grade RAID Support: It offers complete support for RAID 0 (Striping), RAID 1 (Mirroring), RAID 10 (Striped Mirrors), and JBOD (Just a Bunch of Disks), providing users with the flexibility to balance performance, data redundancy, and cost.

The Core Value of Hardware RAID: The independent onboard processor handles all RAID calculations. This means that neither routine array I/O nor background tasks like synchronization and rebuilding will consume host CPU resources, which is critical for maintaining system responsiveness under heavy I/O loads.

Targeted Deployment Scenarios

ITX/SFF (Small Form Factor) System Builds: For high-performance "powerhouse" builds, this enables the creation of large-capacity HDD storage pools or multi-SSD arrays for games and media assets without sacrificing a discrete graphics card.

Mini PC (e.g., Intel NUC) Expansion: By leveraging the limited M.2 slots on devices like the NUC, users can expand connectivity to multiple 2.5-inch drives, easily building a powerful Home Theater PC (HTPC) or personal NAS.

Industrial Control (IPC) & Embedded Systems: Provides a high-reliability, small-footprint, multi-drive storage solution for space-constrained devices such as industrial PCs, digital signage, and thin clients, especially for critical applications requiring data redundancy (RAID 1).

Desktop Aesthetics & Cable Management: The controller lies flat on the motherboard, creating a minimal physical presence. This greatly simplifies cable routing within the chassis, contributing to a cleaner build with optimized airflow.

Technical Specifications at a Glance

Model: IO-M2F9236-4IR

Host Interface: M.2 (NGFF) B+M Key

Bus Protocol: PCI Express 2.0 x2

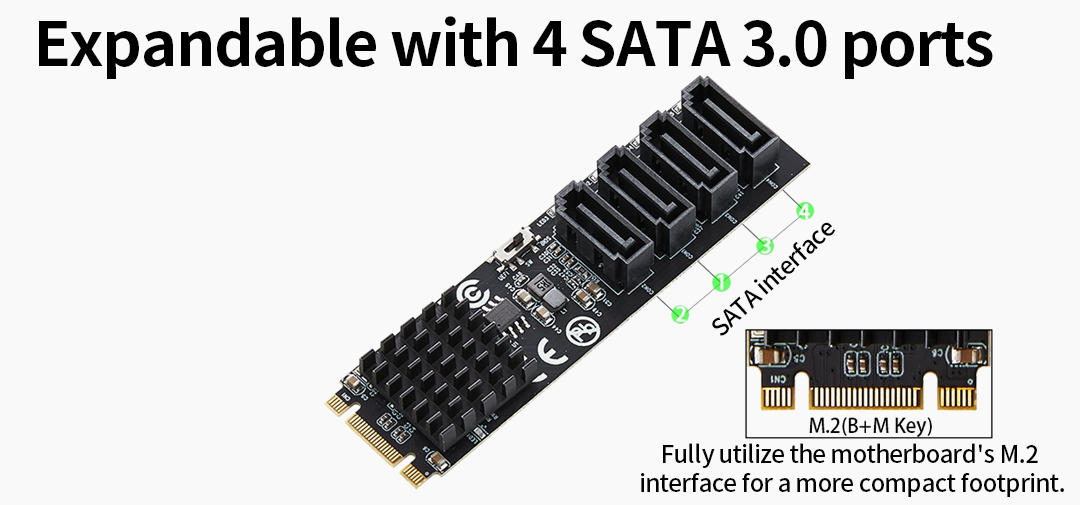

Output Interface: 4 x SATA III (6Gb/s)

Supported RAID Levels: RAID 0, RAID 1, RAID 10, JBOD

Product Dimensions: 80mm x 22mm (2280 Form Factor)

Compatible OS: Windows, Linux

Package Contents: M.2 RAID Controller x1, User Manual x1, SATA Data Cables x2

Conclusion

The IO-M2F9236-4IR is more than just an M.2 to SATA adapter; it is an architectural-level solution. Through a revolution in form factor, it successfully miniaturizes and integrates hardware RAID functionality—traditionally requiring a full PCIe slot—into a single M.2 module. For system designers, integrators, and high-end enthusiasts who are constrained by physical space but still demand professional-grade storage performance and data security, this product offers an entirely new and invaluable approach to maximizing limited hardware resources.

Stop compromising on storage expandability due to a compact system footprint. Choose the IO-M2F9236-4IR and transform every M.2 slot into a powerful storage core.
