Introduction

This PCIe 10G network card allows users to expand dual 10G network ports on desktop computers or servers, providing a high-speed transmission rate of 10Gbps. It serves as an excellent high-speed networking solution for hardcore gamers who prioritize stable and ultra-fast connectivity.

Features
• Controller Intel X540
• Bus Type PCI Express X8, 5.0GT/s
• System Interface Type PCIe v2.1 (5.0 GT/s)
• Data Transfer Rate per Port 10GbE/1GbE/100Mb
• Speed and Slot Width 5.0 GT/s, x8 Lane
• Power Consumption 12.5 W
• NC Sideband Interface
• Jumbo Frame Support
• Supported Interfaces 100Base-T, 1000Base-T, 10GBase-T
• Intel® Virtualization Technology Support
• On-Chip QoS and Traffic Management
• Flexible Port Partitioning
• Virtual Machine Device Queue (VMDq)
• PCI-SIG SR-IOV Support*
• VMDq, SR-IOV
• Ethernet over Fibre Channel
• MACsec IEEE 802.1 AE
• IEEE 1588
• Intelligent Offloading
• Ethernet Storage iSCSI, FCoE, NFS
• Operating Temperature 0 ~ 55 ℃ (32 ~ 131℉)
• Storage Temperature -40 ~ 70 ℃ (-40 ~ 158 ℉)
• Storage Humidity 90％ non-condensing relative humidity at 35℃
System Requirements
• FreeBSD, Linux, VMWare ESXi
• Win 7/ Server2012/ Server 2008/ Win 8/Win 8.1/Server 2016/Win 10
Package Contents
• 1 x PCIe to 2-port 10G server network card
• 1 x User manual

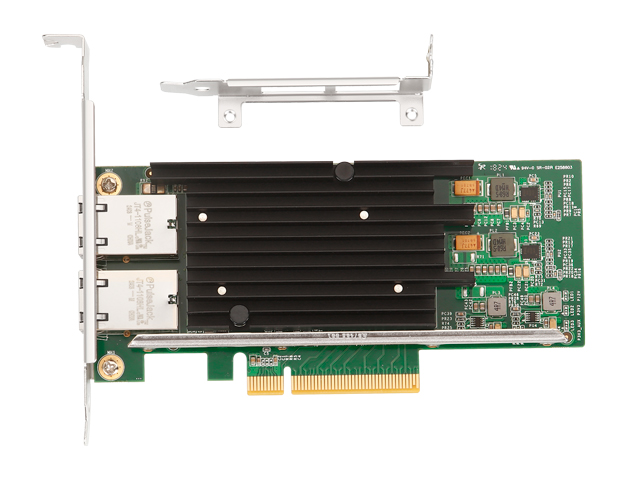

• 1 x Low profile bracket
