Features
•  Network Speeds : Supports 100M, 1G, 2.5G, 5G, and 10G network speeds.
•  Interface Protocol : PCI Express* (PCIe*) V3.0, offering a data transfer rate of up to 8.0 GT/s.
•  Network Virtualization : Supports stateless offloading, including VXLAN and NVGRE.
•  Traffic Control : The Intel® X550 Ethernet Flow Director can control application traffic based on hardware.
•  Port Partitioning : Utilizes flexible I/O virtualization technology to ensure Quality of

•  Service (QoS) for up to 128 virtual ports.
•  Controller : Based on Intel X550.
•  Brace Height : Available in full - height and low - profile configurations.
•  Thermal Design Power :
•  Typical Power: 11.2W.
•  Maximum Power: 13.0W.
•  Ports : 2 x 10G RJ - 45 interfaces.
•  System Interface Type : PCIe v3.0 (8.0GT/s) (compatible with 2.0 and 1.1).
•  Speed and Slot Width : 8 GT/s, x4 Lane.
•  Bus Bandwidth : 4 - lane PCI Express, usable in x8 and x16 slots.
•  Per - Port Rate Support : 100MbE/1GbE/10GbE; 100MbE/2.5GbE/5GbE/10GbE (under Linux).
•  Functional Features
•  LED Indicators :
•  Link (green/orange steady) and ACTIVITY (green, blinking).
•  Link Speed (green = 10Gbps; orange = 1Gbps/100Mbps).
•  10Gbps: Green + Green.
• 100Mbps/1Gbps/2.5Gbps/5Gbps: Green + Orange.
•  On - Chip QoS and Traffic Management : Yes.
•  Virtual Machine Device Queue (VMDq) : Supported.
•  PCI - SIG SR - IOV* : Supported.
•  64 VFs per Port : Supported.
•  Data Center Bridging (802.1Qaz, 802.1Qbb, 802.1p) : Supported.
•  NVGRE and VXLAN Offloading : Supported.
•  Intel® Flow Director : Supported.
•  MSI - X : Supported.
•  FPP - 64 VFs per Port : Supported.
•  Tx/Rx IP, SCTP, TCP, & UDP Checksum Offloading (IPv4, IPv6) Functions : Supported.
•  Tx TCP Segmentation Offload : Supported.
•  SNMP and RMON : Supported.
•  Support for IEEE 802.1Q VLANs* : Supported.
•  Support for IEEE 802.3 2005 Flow Control Support* : Supported.
•  Compatibility with 10 GbE and 1 GbE Ethernet/802.3ap (KX/KX4) Specification :
•  Compatibility with the 10 GbE 802.3ap (KR) Specification : Compatible.
•  Compatibility with 1000BASE - BX Specification : Compatible.
•  PXE Support : Supported.
•  WoL Support : Supported.
• Jumbo Frame Support : Supported, up to 15.5 KB.
•  Ethernet Power Management Support : Supported.
•  Ethernet Storage Support : Supported, including NFS, FCoE, SMB.
•  Operating Temperature : 0°C to 55°C (32°F to 131°F).
•  Storage Temperature : - 40°C to 70°C (- 40°F to 158°F).
•  Storage Humidity : 90% non - condensing relative humidity at 35℃.

System Requirements:

• Windows Server 2022
• Windows Server* 2019
• Windows Server* 2016
• Windows Server 2012
• Windows Server 2008
• Linux* Stable Kernel version 2.6.32/3x or later;
• Linux* RHEL 6.5 and RHEL 7.0 or later;
• Linux* SLES 11 SP3 and SLES 12 or later;
• FreeBSD* 9 and FreeBSD* 10 or later;
• UEFI* 2.1; UEFI* 2.3 or later;
• VMware ESX/ESXi 5.x/6.x or later

Package Contents
• 1 x PCIe to 2-port 10G server network card
• 1 x User manual

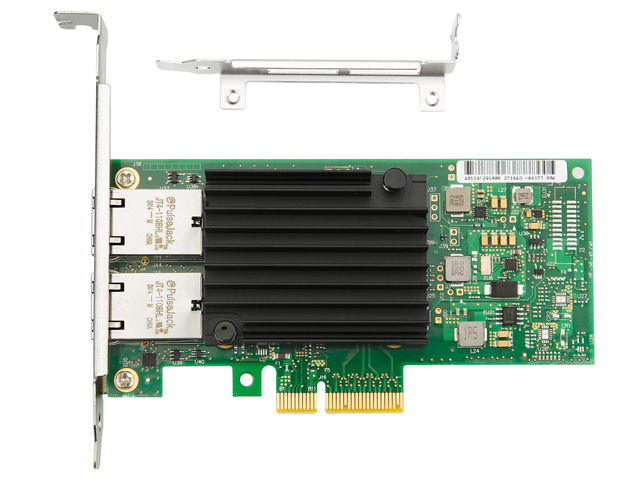

• 1 x Low profile bracket
