Features
• Standards: conforming to USB1.0, 1.1 and 2.0
• USB signals: VCC, DATA+, DATA-, GND and FG
• RS-232 signals: CD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
• Single chip USB to asynchronous serial data transfer interface
• Support Bits per second Data transfer rates from 300 baud to 921600baud (RS232 )
• UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
• Flow control none,hardware and xon/xoff
• Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
• UART signal inversion option
• USB 2.0 Full Speed capable
• Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
• Extended operating temperature range;  -40 to 85°C
Applications
• USB to UART Cable
• POS Printer Terminal
• Networking System
• Industrial and Power Meter
• USB Bar Code Reader
• USB Digital Camera Interface
• USB Wireless/Wired Modem
System Requirements:
• Windows OS
• Mac OS-X
• Linux 3.2 and greater
• Android

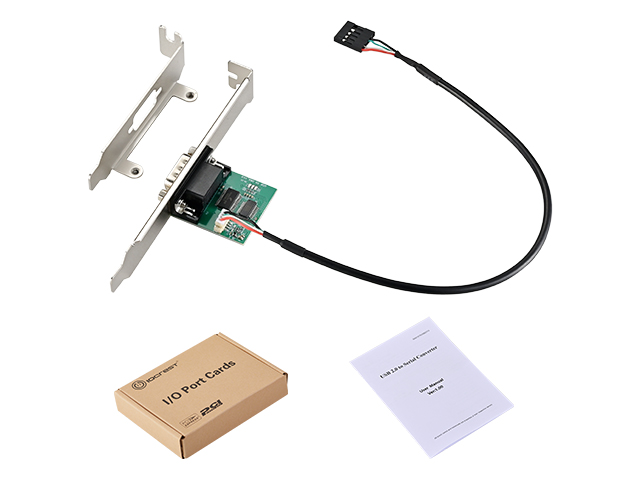

Package Contents

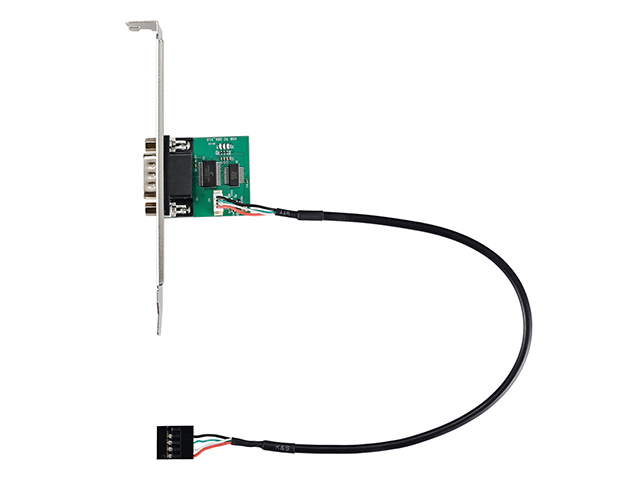

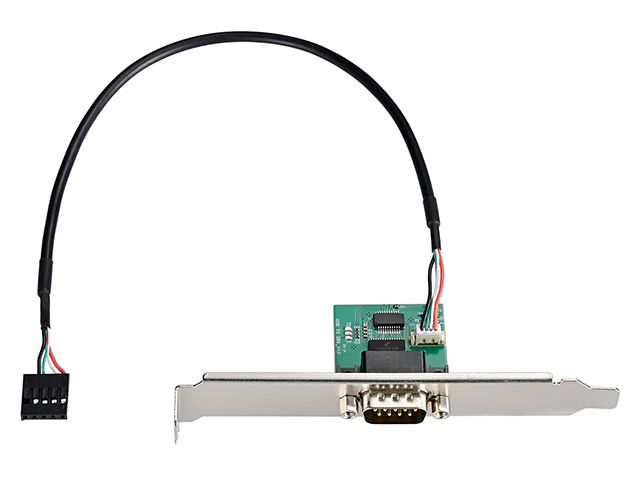

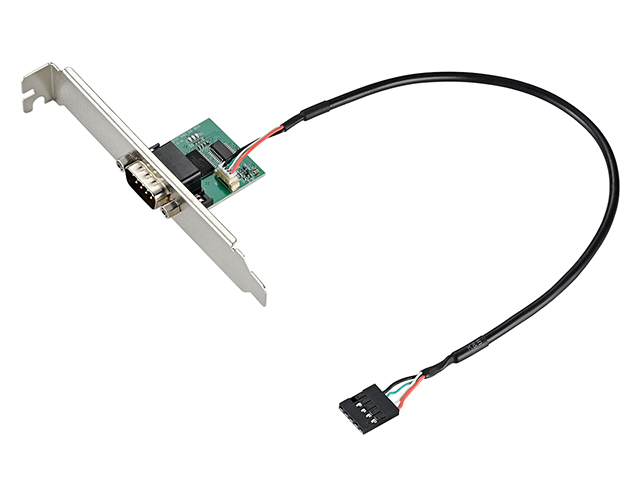

• 1 x USB to Serial Converter
• 1 x User Manual
• 1 x Low Profile Bracket
• 1 x USB Cable
