Supports 4 SATA port,2-Lane M.2 PCI-Express 3.0 interface (B & M Key),Supports Port Multiplier,Supports AHCI mode and IDE programming interface.
ModelIO-M2F5850-4I
Input InterfaceM.2(B+M)Key
Output InterfaceSATA
Motherboard SlotM.2(B+M)Key
Transmission Rate6Gbps
Auxiliary AccessoriesMini SAS SFF-8087 to 4 SATA Cable
Product Size22x42mm
Features
• 2-Lane M.2 PCI-Express 3.0 interface (B & M Key).
• Complies with PCI Express Base Specification Revision 3.1a.
• Supports PCIe link layer power saving mode.
• Supports command-based and FIS-based for Port Multiplier.
• Complies with SATA Specification Revision 3.2.
• Supports 4 SATA port.
• Supports Port Multiplier
• Supports AHCI mode and IDE programming interface.
• Supports Native Command Queue (NCQ).
• Supports SATA link power saving mode (partial and slumber)
• Supports SATA plug-in detection capable.
• Supports drive power control and staggered spin-up.
• Supports SATA Partial / Slumber power management state.
Note: Does not support RAID on Port Multiplier.
System Requirements
• Windows 7 (X86/X64)
• Windows 8/8.x / 10 /11(X86/X64) (Windows in-box driver)
• Linux-base OS

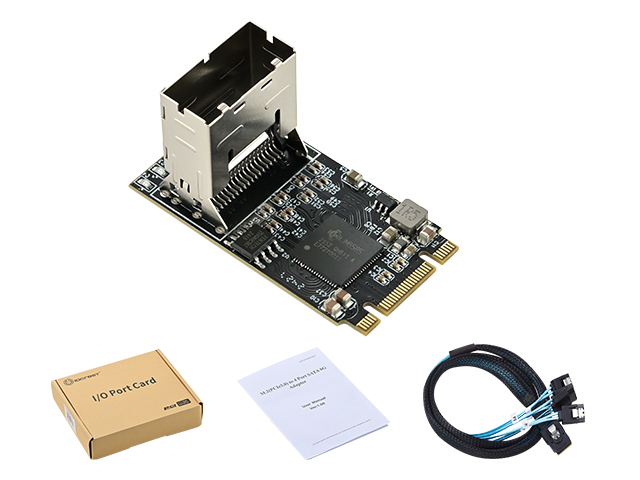

Package Contents
• 1 x M.2(PCIe3.0) to SATA 6G Adapter
• 1 x User Manual
• 1 x Mini SAS SFF-8087 to 4 SATA Cable
Note: Contents may vary depending on country/market
