This board offer independent serial ports for connecting terminals,modems, printers, scanners, cash registers,bar code readers, keypads,numeric displays, electrical scales, data acquisition equipment, and other serial devices for the PC .
ModelIO-M2F384-4S1P
Input InterfaceM.2( M+B Key)
Output InterfaceRS232
Motherboard SlotM.2( M+B Key)
Transmission Rate
Auxiliary Accessories6 x 1.25mm-9pin to 9Pin ，Power Cable ，CFH60M/DB9M*4+DB25F
Product Size45x67mm,22x80mm
Features
Serial Port Interface
• Four independent UARTs, compatible with 16C550, 16C552, 16C554 and 16C750 with enhanced.
• Supports 5, 6, 7 or 8-bit Serial format and 1 or 2 stop bits.
• Supports Odd, Even, None, space 0 and mark 1 parity, etc.
• Programmable Baud Rate, supports 115200bps and up to 8Mbps baud rate.
• Supports 256-bytes FIFO buffer, supports 4 FIFO trigger layers.
• Supports CTS, RTS to realize auto handshake and auto transmit speed control, compatible with TL16C550C.
• Supports serial frame error check, and Break circuit interval check.
• Supports Full-duplex and Half-duplex communication.
Parallel port
• Supports such as SPP, Nibble, Byte, PS/2, EPP and ECP etc IEEE1284 parallel/ printer port modes.
• Supports bi-directional data transmission, the transfer speed can up to 1M Byte/S.
System Requirements
• Windows
• Linux Kernel 2.4 & 2.6 or above
• One available M.2 M&B Key slot

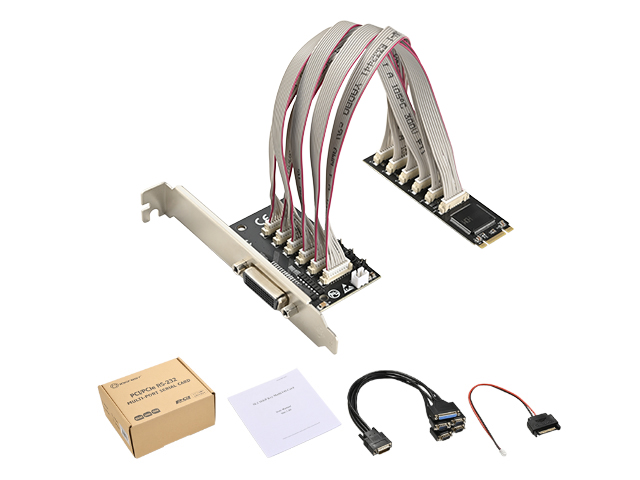

Package Contents

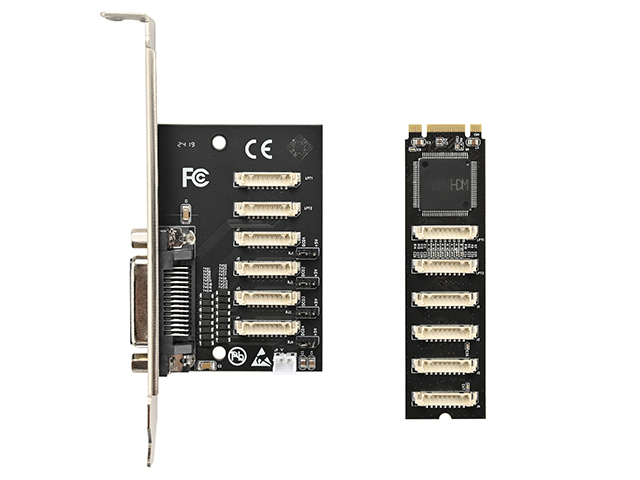

• 1 x M.2 (M+B Key) Multi I/O Card
• 1 x User Manual
• 6 x 1.25mm-9pin to 9Pin
• 1 x Power Cable

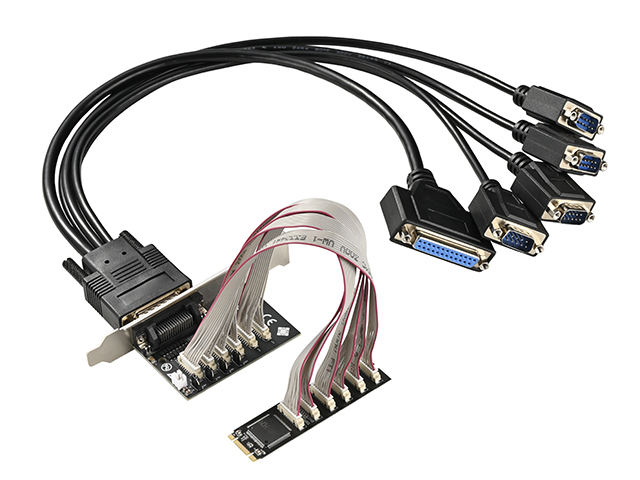

• 1 x CFH60M/DB9M*4+DB25F
Note: Contents may vary depending on country/market.
