Thunderbolt interface with reversible USB-C connector,Ethernet port supports auto-negotiation for 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100Mb/s Base-T,Bus powered 10GbE network adapter.
ModelIO-HTB113-GLAN
Input InterfaceUSB4
Output InterfaceRJ45
Motherboard Slot
Transmission Rate10Gbps
Auxiliary AccessoriesUSB4 Cable
Product Size102.7x40.4x25.6mm
Features
• Thunderbolt interface with reversible USB-C connector
• Ethernet port supports auto-negotiation for 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s and 100Mb/s Base-T
• Bus powered 10GbE network adapter
• Jumbo frame support up to 16 KB
• 2.5W typical 10GBASE-T operating power per port: 100 meters of Cat 6A
• 1.5W typical 5GBASE-T operating power per port
• 1W typical 1GBASE-T operating power per port
• Audio Video Bridging (AVB) and PTP/1588v2
• Synchronous Ethernet (Sync-E), ITU-T standard in accordance with IEEE
• Supports Message-Signaled Interrupts (MSI and MSI-X), and legacy INTx PCIe interrupts
• Support for the Network Controller Sideband Interface (NC-SI)
• Management Component Transport Protocol(MCTP)
• IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
• IEEE 802.3bz 2.5/5GBASE-T
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.1Q VLANs
• IEEE 802.3x Full Duplex and flow contro
• IEEE 802.3az - Energy Efficient Ethernet (EEE)
• Support Preboot Execution Environment (PXE)
• FCoE No
• Operation Temperature :0°C to +108°C;
• Storage Temperature:-40°C to +110°C
System Requirements:
• Microsoft® Windows®, 10,11
• Linux Kernel, 3.10 and later releases
• MacOS

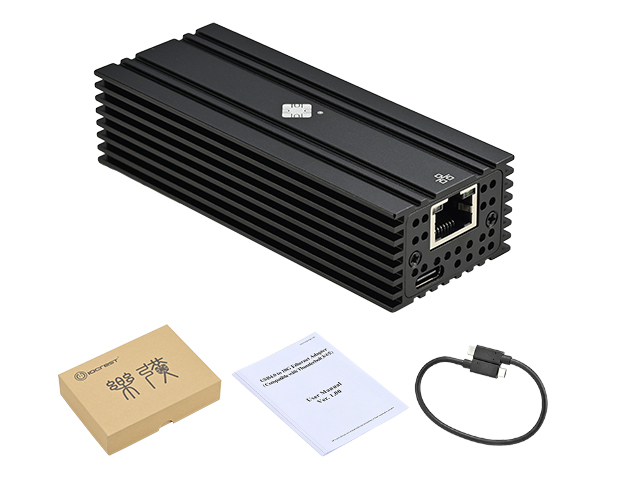

Package Contents
• 1 × Thunderbolt 10G Ethernet Adapter
• 1 × User Manual
• 1 × USB4 Cable
Note: Contents may vary depending on country/market
