Features
• Supports bus widths: Gen4 x1, Gen3 x4, x2, x1
• Supports line rates up to 16.0 GT/s, 8.0 GT/s, and 5.0 GT/s per lane
• Tiny daughter board with high speed shielding cable
• Jumbo frame support up to 16 KB
• Support 10G/5G/2.5G/1000M/100M LAN speed
• 2.5W typical 10GBASE-T operating power per port: 100 meters of Cat 6A
• 1.5W typical 5GBASE-T operating power per port
• 1W typical 1GBASE-T operating power per port
• Audio Video Bridging (AVB) and PTP/1588v2
• Synchronous Ethernet (Sync-E), ITU-T standard in accordance with IEEE
• Supports Message-Signaled Interrupts (MSI and MSI-X), and legacy INTx PCIe interrupts
• Support for the Network Controller Sideband Interface (NC-SI)
• Management Component Transport Protocol(MCTP)
• IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
• IEEE 802.3bz 2.5/5GBASE-T
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.1Q VLANs
• IEEE 802.3x Full Duplex and flow contro
• IEEE 802.3az - Energy Efficient Ethernet (EEE)
• Support Preboot Execution Environment (PXE)
• FCoE No
• Operation Temperature :0℃ to 85℃ (-32 ℉ to 185 ℉)
• Storage Temperature：-55℃ to 105 ℃ (-67 ℉ to 221 ℉)
• Storage humidity: 90% non condensing relative humidity at 35 ℃
System Requirements
• Windows 10/11
• Windows Server 2022
• RHEL/Centos7.3/7.6/
• RHEL/Centos7.9/8.2/8.3
• Deepin 15.11 /20 /20.6
• Ubuntu 16.04.3 /18.04.5/20.04/22.10/23.10
• Mac OS

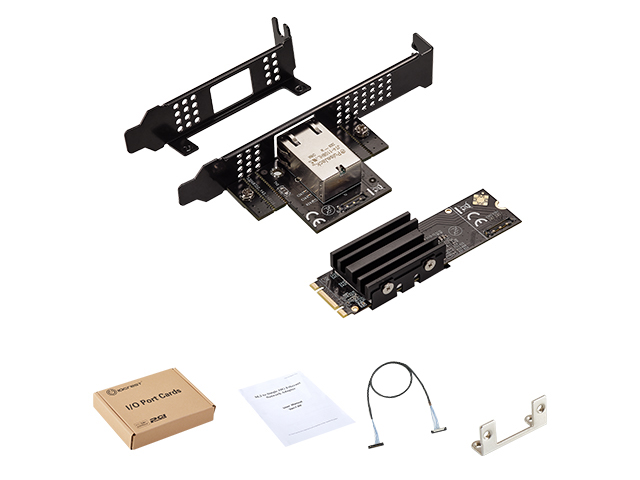

Package Contents

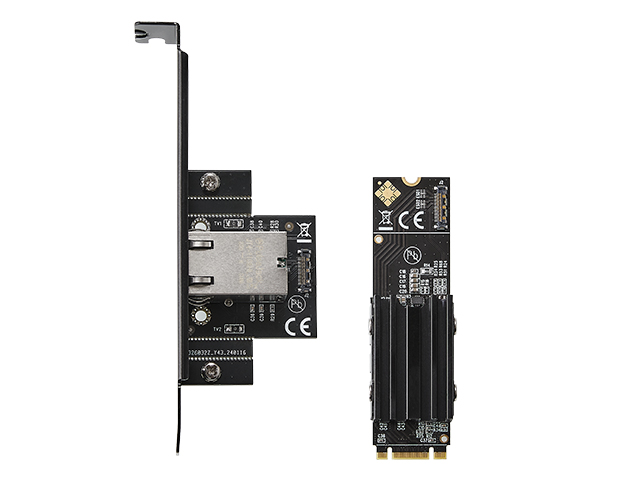

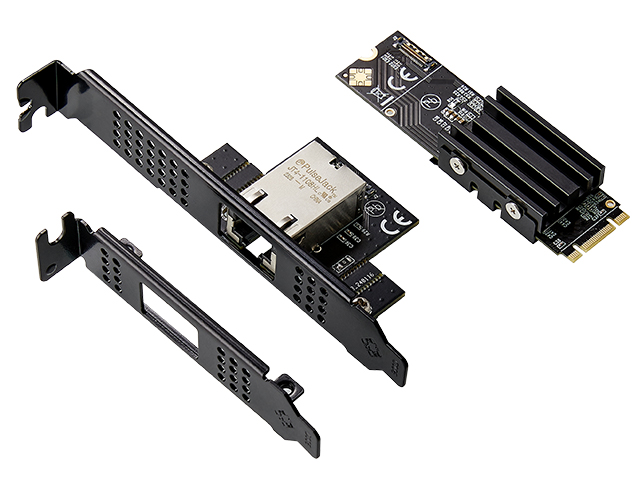

• 1 × M.2 2280 to single 10G Ethernet network adapter
• 1 × User Manual

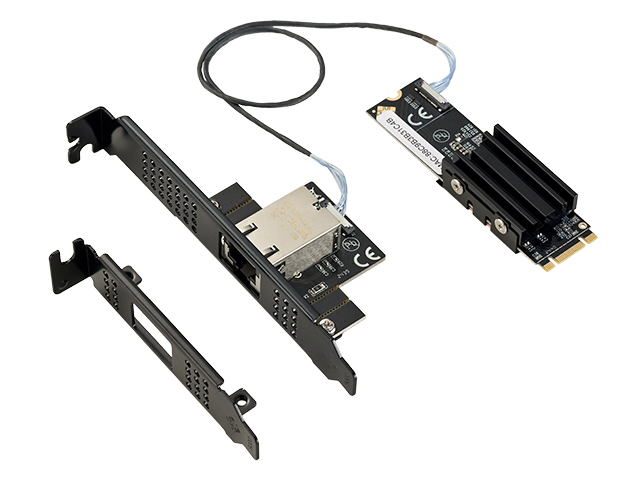

• 1 × 13pin to 13pin Cable
• 1 x Low Profile Bracket
<p><br/></p><p>Q: Does this network card support PXE and WOL (Wake on LAN)?</p><p>A: This M.2 10G network card does not support PXE and WOL. However, the PCIe 10G network card does.<br/>Link to the PCIe 10G network card: <a data-cke-saved-href="http://www.mmui.com.cn/index.php?id=1767" href="http://www.mmui.com.cn/index.php?id=1767">http://www.mmui.com.cn/index.php?id=1767</a></p><p>Q: Why is the network speed not ideal when I test this network card on my device? What could be the reason?</p><p>A:</p><p>1、Check if the Ethernet cable is Cat6 or Cat7.</p><p>2、Ensure the driver is up to date. You can download the latest driver from <a data-cke-saved-href="http://www.mmui.com.cn/data/upload/image/AQC113.zip" href="http://www.mmui.com.cn/data/upload/image/AQC113.zip">http://www.mmui.com.cn/data/upload/image/AQC113.zip</a>./</p><p>3、Verify if the network settings have Jumbo Frames enabled.</p><p>4、Confirm that the switch or gateway device supports 10G speeds.</p><p>5、Ensure the test hard drive uses NVMe protocol (the read speed of the hard drive should exceed the network transfer speed).</p><p>6、When using iperf3 for testing with Jumbo Frames enabled, use multi-threaded mode.</p><p>7、In Windows, check if the network card is set to 10G. You can set the network card speed by right-clicking on "This PC" → Manage → Device Manager → Network Adapters, right-click on the corresponding device, select Properties → Advanced → Speed and Duplex → Value.</p><p>Q: Does this network card support domestic operating systems? Do I need drivers? How do I install the drivers?</p><p>A: Linux systems are generally driver-free. However, you can also install the latest drivers. The installation method is as follows:</p><p><span style="text-wrap-mode: nowrap;">1.Download the 113linux driver from the official website and extract it to your computer.</span></p><p><span style="text-wrap-mode: nowrap;">2.Open the extracted folder and further decompress the driver files</span></p><p><span style="text-wrap-mode: nowrap;">3.Open the decompressed folder and right-click to open the terminal.</span></p><p><span style="text-wrap-mode: nowrap;">4.Enter root mode and type make.</span></p><p><span style="text-wrap-mode: nowrap;">5.After entering the command make, a driver file with the .ko extension will be generated</span></p><p><span style="text-wrap-mode: nowrap;">6.Enter the command to install the driver. sudo make install</span></p><p><span style="text-wrap-mode: nowrap;">7.To check if the driver is installed successfully, enter the following command: /lib/modules/`uname -r`/aquantia/atlantic.ko</span></p><p>Q: Is there a longer version of the cable for this M.2 10G network card?</p><p>A: Currently, the cable is only 30cm long. Note that the cable is a consumable item, and pulling it forcefully may affect the speed.</p><p>Q: What kind of slot on the motherboard is required for this card?</p><p>A: This card uses a B+M key and requires a motherboard slot that supports NVMe.</p><p><br/></p>
