Features

• Support PCI Express Gen-III x4

• Support PCI Express Base 3.1a Specification

• Compliant with PCI Express Card Electromechanical 2.0 specification

• Compliant with PCI Express Mini Card Electromechanical 1.2 specification

• Compliant with PCI PCI Bus power Management interface specification Revision 1.2

• Compliant with PCI PCI Local Bus specification Revision 3.0

• Integrate Spread Spectrum Controller for PCI Express interface

• Not Support lane reversal

• Compliant with Universal Serial Bus 3.1 specification Revision 1.0

• Compliant with Universal Serial Bus specification Revision 2.0

• Compliant with USB Attached SCSI Protocol Revision 1.0

• Support Multiple INs function

• Support one ports of USB3.2

• Support USB3.2 and USB2.0 Link Power Management

• Support Control,Bulk,Stream,Interrupt,Isochronous transfer type

• Support USB3.2Gen2 x2

• Up to 20Gbps

• Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1

• 5V/3000mA power output for Type C port

• A type c female, an external USB3.2 interface and internal SATA power

• Power Input: 15-pin SATA CD-ROM Type Power Connector

• Support device remote wakeup function from USB keyboard or mouse

• Support Control, Bulk, Stream, Interrupt, Isochronous transfer type

• Operation Temperature ：0 to 60°C (32 to 140°F)

• Storage Temperature：-20 to 70°C (-4 to 158°F)

• Operation Humidity：5 to 95% RH

System Requirements

• Windows 8.x / 10 (X86/X64) (Windows in-box driver)

• Support Linux 2.6.31 or later (Linux OS already implemented USB3.2 driver)

Package Contents

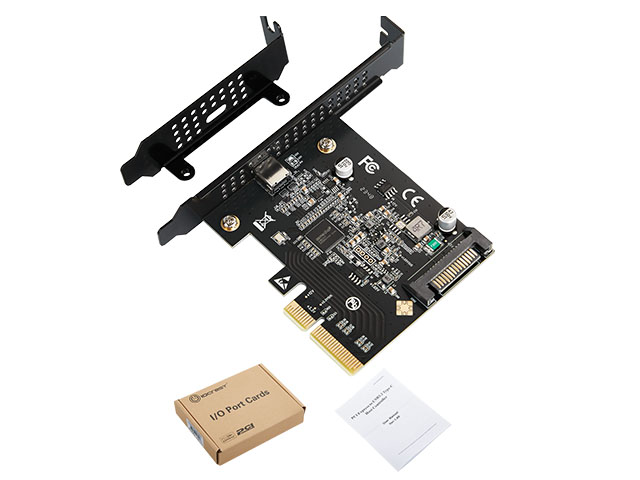

• 1 × PCI Express to USB3.2 Type-CHost ControllerCard

• 1 × User Manual

• 1 × Low Profile Bracket
