This Wi-Fi/ Bluetooth® module supports dual-stream Wi-Fi in the 2.4GHz, 5GHz and 6GHz bands as well as Bluetooth® 5.42. These new features maximize the benefits of Wi-Fi 7, including up to 5 Gigabit speed3, ultra-low latencies, and enhanced reliability across new radio frequencies exclusive to Wi-Fi 7 devices, and deliver a significant improvement in user experience in dense deployments, as well as extended operating range for Bluetooth® connected devices, and support for Bluetooth® LE audio.

Features

 Wi-Fi PCIe

1.Supports PCI-E-X1/X4/X8/X16

2.PCIe* 4.0 Gen4 support (Max throughput requires PCIe Gen3 as minimum)

3.PCIe* L1.2 Off state

4.PCIe* L1.1 snooze state

5.supported: Wi-Fi 4, 5, 6, and Wi-Fi 6E, including Wi-Fi 6 R2 features.

6.Wi-Fi Alliance

Wi-Fi 7 Technology support, Wi-Fi CERTIFIED* 6 with Wi-Fi 6E, Wi-Fi CERTIFIED* a/b/g/n/ac, WMM*, WMM*-Power Save, WPA3*, PMF*, Wi-Fi Direct*, Wi-Fi Agile Multiband*, Wi-Fi Location R2 HW readiness

7.IEEE WLAN Standard

IEEE 802.11-2020 and select amendments (selected feature coverage)

IEEE 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax, be; Fine Timing Measurement based on 802.11-2016, 802.11az HW readiness

8.Supports Microsoft WPI (Wake Packet Indication)

8. Bluetooth® USB

The product supports the Bluetooth® USB host interface with the following highlights :

1. USB 2.0

2. Full-speed operational mode

3. Self-powered, powered from the M.2 power supply

4. Signaling level per USB 2.0 specification

5. Bluetooth® 5.4

6. Support for the following features:

– Selective suspend

– Remote wake

System Requirements

• Windows 11, Microsoft Windows 10, Linux

Package Contents

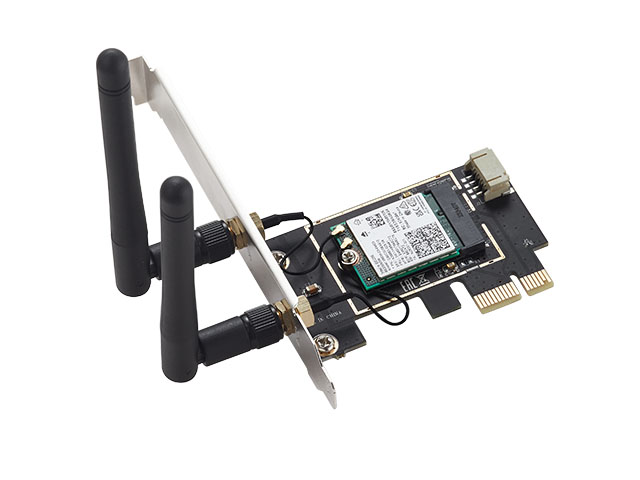

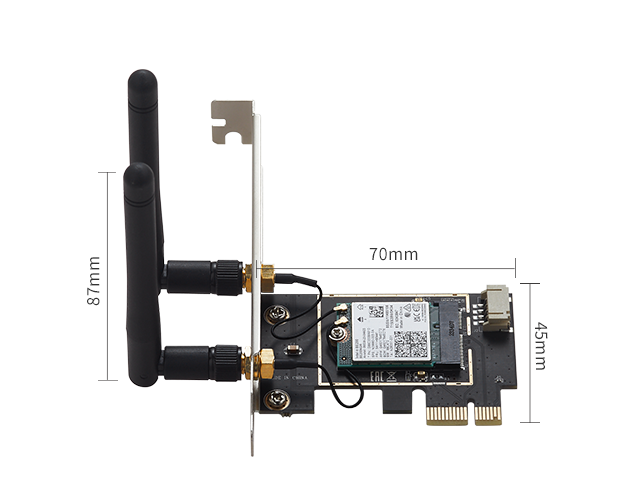

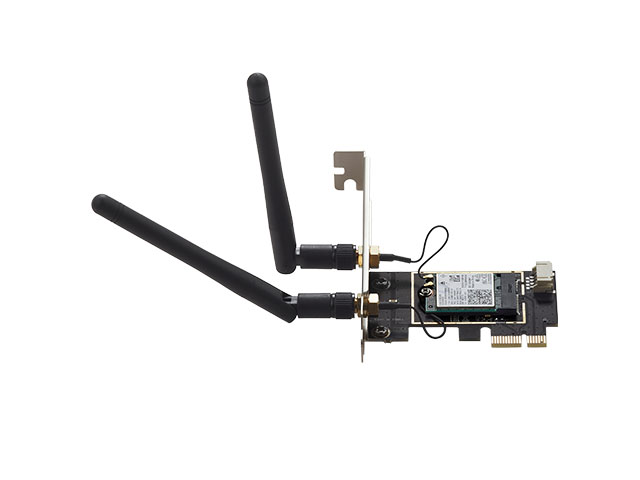

• 1 x WiFi 7 PCIE Network Adapter with BE200 WiFi adapter

• 1 x User Manual

• 1 x USB Cable

• 2 x Antennas

Note: Contents may vary depending on country/market
