Support PCI Express Base Specification Rev 3.1，Backwards compatible with PCIE V3.0,2.0 and V1.0 mainboards，PCI Express interface: x4.Compliant with NVM Express 1.2a,Supports four physical NVMe devices,Industrial operating temperature range:-40~85°C .
ModelIO-PCE8639A-U2
Input InterfacePCIex4
Output InterfaceU.2(SFF-8639)
Motherboard SlotPCIex4、x8 ，x16
Transmission Rate64Gbps
Auxiliary AccessoriesScrew
Product Size132x90mm
Features
• Support PCI Express Base Specification Rev 3.1
• Backwards compatible with PCIE V3.0,2.0 and V1.0 mainboards
• PCI Express interface: x4
• Support SSD_Form_Factor_Version1_a.
• Compliant with NVM Express 1.2a
• Supports one physical NVMe devices
• Industrial operating temperature range:-40~85°C
System Requirement
• Windows 8,8.1,10 ,11or later
• UEFI 2.3.1 or later
• Linux
• VMware
• One available PCI-Express x4,x8 or x16 slot
Application
• Servers
• HBA(Host Bus Adapter)
• Data Center
• Storage Racks
• Storage Controller
• Routers
Package Content

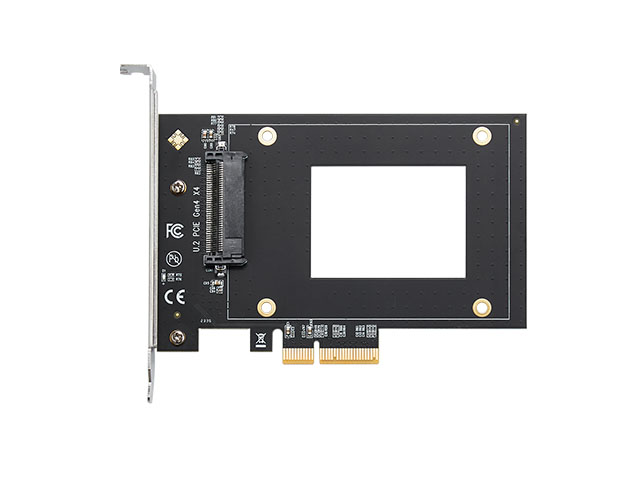

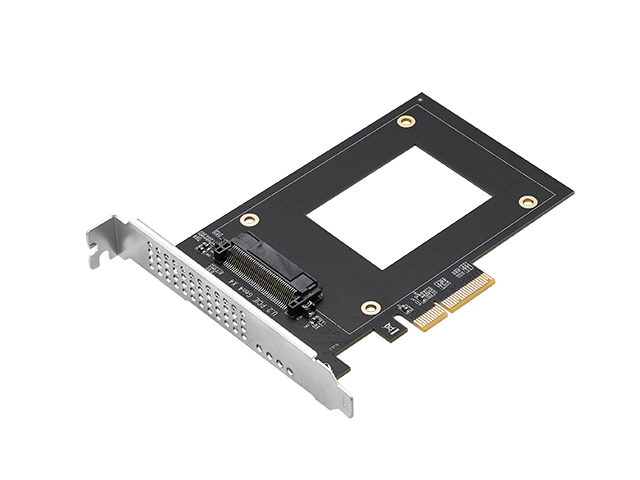

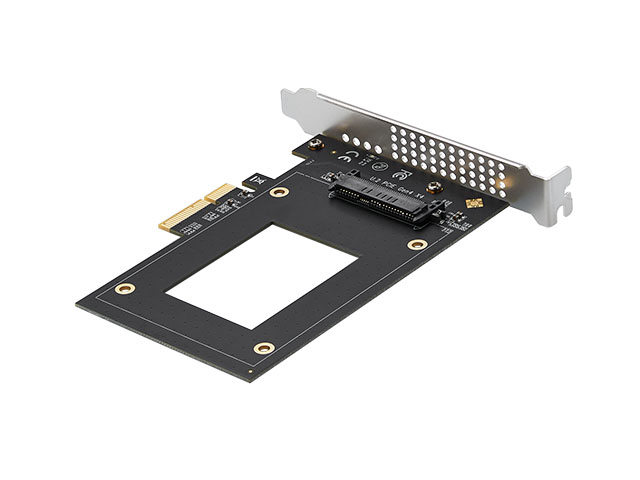

• 1 x PCIe x4 to 1-port U.2 SFF8639 2.5-inch SSD Adapter
• 1 x User Manual
Note: Contents may vary depending on country/market
