Features
• 2-Lane M.2 PCI-Express 3.0 interface (B & M Key).
• Complies with PCI Express Base Specification Revision 3.1a.
• Supports PCIe link layer power saving mode.
• Supports command-based and FIS-based for Port Multiplier.
• Complies with SATA Specification Revision 3.2.
• Supports 4 SATA port.
• PCIe 2.0 endpoint device
• Compliant with PCI-Experss Specification v2.0
• Supports communication speed of 2.5 Gbps and 5 Gbps
• Supports BIOS and UEFI programming interface registers for the SATA controller
• Supports error reporting.recovery and correction
• Supports Message Signaled Interrupt(MSI)
• Compliant with Serial ATA Specification 3.1
• Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps
• Supports Native Command Queue (NCQ)
• Supports Port Multiplier FIS based switching or command based switching.
• Supports Staggered Spin-up
• Support hardware RAID function: RAID 0, RAID 1,RAID10.
• Note: Not Supported RAID on PM

System Requirements
• Windows OS
• Linux 2.6.x and above
Package Contents

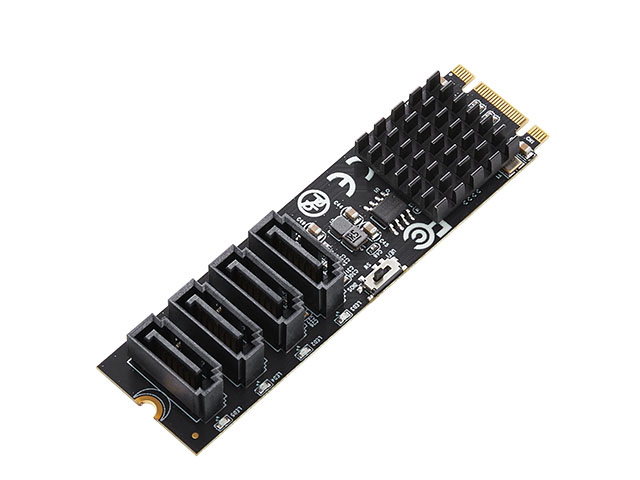

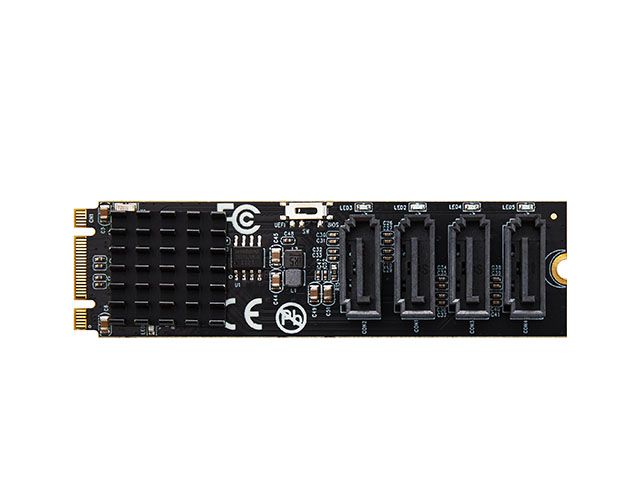

• 1 x M.2(B+M Key) to 4 Ports  SATA6G RAID Card
• 1 x User Manual
• 2 x SATA Cable
Note: Contents may vary depending on country/market
