Introduction

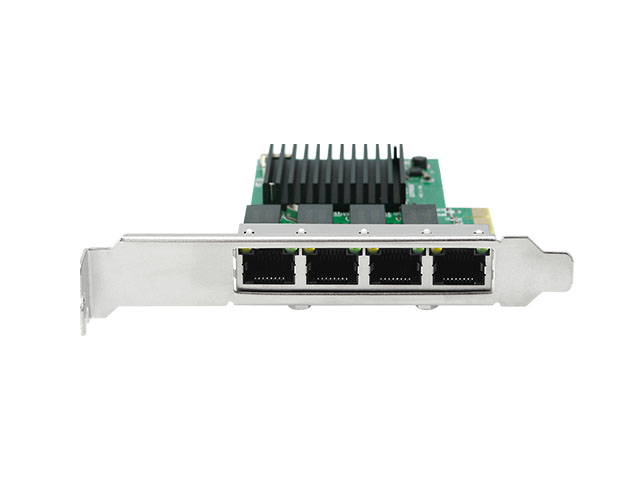

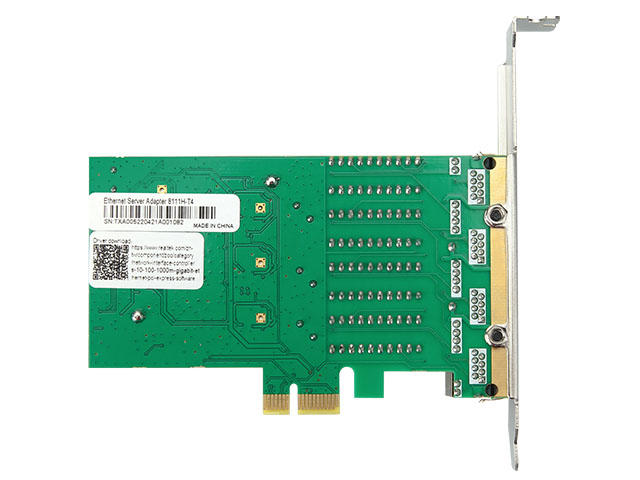

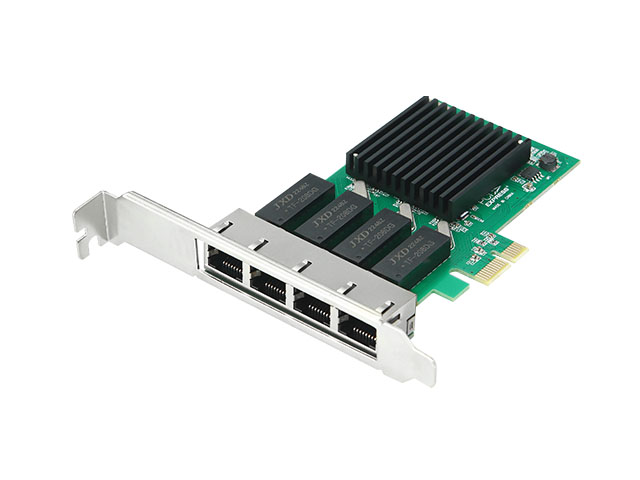

This PCI-Express RTL8111 Four Gigabit Ethernet controller card is a high performance 10/100/1000 BASE-T Ethernet LAN controller, supports the PCI Express 1.1 bus interface for host communications with power management, and is compliant with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space, and is perfectly to convert the PCI-Express interface into Four Gigabit Ethernet ports.
Specification
• Integrated 10/100/1000M transceiver
• Supports Giga Lite (500M) mode
• Auto-Negotiation with Next Page capability
• Supports PCI Express 1.1
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports 1-Lane 2.5Gbps PCI Express Bus
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Transmit/Receive on-chip buffer support
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Fully compliant with IEEE802.3, 802.3u and 802.3ab
• Supports IEEE 802.1P layer 2 Priority Encoding
• Supports 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010(EEE)
• Supports Full Duplex flow control (IEEE.802.3x)
• Supports jumbo frame to 9K bytes
• Supports quad core Receive-Side Scaling(RSS)
• Supports Protocol Offload(ARP&NS)
• Supports Microsoft WPI (Wake Packet Indication)
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
System Requirement
• Windows 20000, ME, 98SE, Windows Server 2003/XP/Visit/ 2008/7 /8 /10 32-/64-bit,Linux, MAC OS 10.4 or above and DOS.
Package Content
• 1 x PCI-Express Four Gigabit Ethernet controller card
• 1 x User Manual

• 1 x Driver CD

• 1 x Low Profile Bracket
Note: Contents may vary depending on country/market
