Features
• PCIe v2.1 (2.5 GT/s) x1, with Switching Voltage Regulator (iSVR)
• Integrated Non-Volatile Memory (iNVM)
• Three single port SKUs: SerDes, Copper, Copper IT
• Value Part (Intel® Ethernet Controller I211)
• Platform Power Efficiency
— IEEE 802.3az Energy Efficient Ethernet (EEE)
— Proxy: ECMA-393 and Windows* logo for proxy offload
• Advanced Features: — Audio-video bridging
• IEEE 1588/802.1AS precision time synchronization
• IEEE 802.1Qav traffic shaper (with software extensions)
— Jumbo frames4
— Interrupt moderation, VLAN support, IP checksum offload
— PCIe OBFF (Optimized Buffer Flush/Fill) for improved system power management
— Four transmit and four receive queues
— RSS and MSI-X to lower CPU utilization in multi-core systems
— Advanced cable diagnostics, auto MDI-X
— ECC – error correcting memory in packet buffers
— Four Software Definable Pins (SDPs)
• Manageability:
— NC-SI for greater bandwidth pass through
— SMBus low-speed serial bus to pass network traffic
— Flexible firmware architecture with secure Flash update
— MCTP over SMBus/PCIe
— OS2BMC/CEM (optionally enabled via external Flash)
— PXE and iSCSI boot

• IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x、IEEE 802.1q, IEEE802.3ab

Operating Temperature: 0 ℃-70 ℃
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -0℃-80℃
Relative Humidity: 5%-90%(non-condensing)

System Requirements
• Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
• Windows Server® 2012, 2008 R2, 2003(32/64)
• Mac OS® 10.x (Intel based, tested up to 10.9)
• Linux 2.4.x and later (Tested up to 3.5)
Package Contents

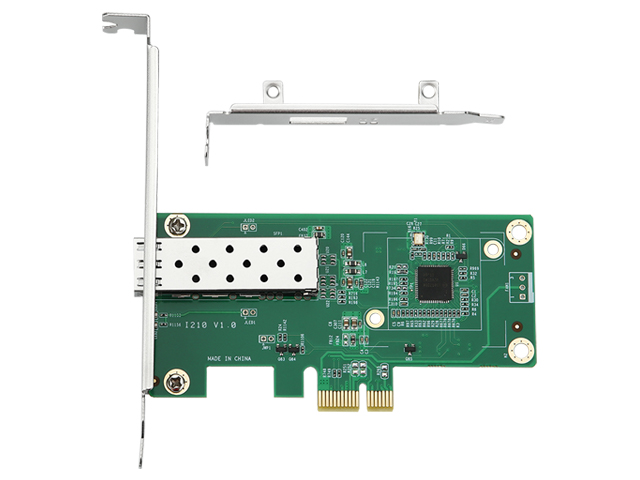

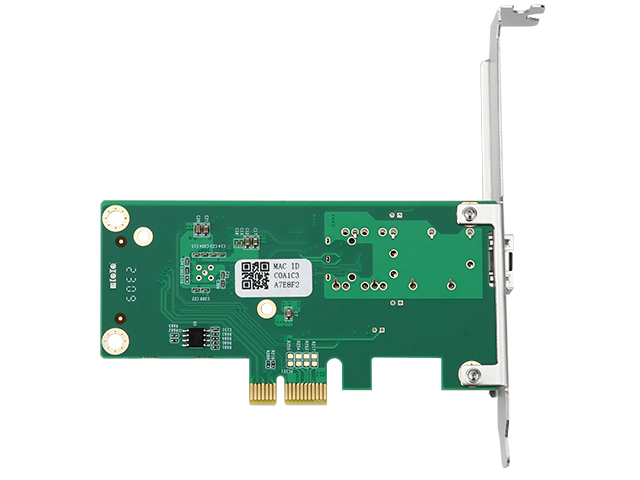

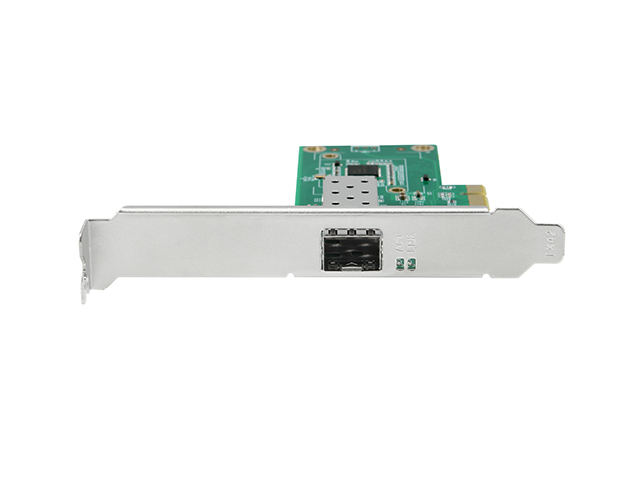

• 1 x PCIe 1x Fiber Lan Card
• 1 x Low profile bracket
• 1 x User manual
Note: Contents may vary depending on country/market
