Features
• Supports PCI Express revision 3.1
• Supports 1-Lane 2.5G/5Gbps PCI Express Bus
• Support 2.5G and 1G Lite mode
• Supports PCI Express x1, x4, x8 or x16 socket
• Integrated MAC/PHY supporting 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T 802.3 specifications
• IEEE 802.3u auto-negotiation conformance
• Half duplex operation at 10BASE-Te and 100BASE-TX
• Automatic polarity correction
• Error correcting memory (ECC) in packet buffers
• Flow control support: send/receive PAUSE frames and receive FIFO
• Supports PXE
• Support Wake on LAN
• Interrupt moderation, VLAN (802.1Q & 802.1P), TCP/IP checksum offload, segmentation offload
• Time Sensitive Network (TSN): IEEE 1588/ 802.AS Rev, 802.1Qav, 802.1Qbv
• Supports Interrupt moderation, VLAN (802.1Q & 802.1P), TCP/IP checksum offload, segmentation offload
• Supports IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3az、IEEE 802.3bz
• Supports IEEE802.3az(Energy Efficient Ethernet)
• Supports IEEE802.3af,IEEE802.3at
• Supports IEEE802.3bz(2.5GBASE-T)
• Supports Full Duplex flow control(IEEE 802 .3x)
• Supports Size of jumbo frames 9.5 KB and without TSN
• 30W maximum with DC 12V over PCIe slot or SATA 15PIN
System Requirements
• Windows 10S/10RS5+
• Ubuntu 19.04 or higher
• PCI Express-enabled system with an available PCI Express slot
Package Contents

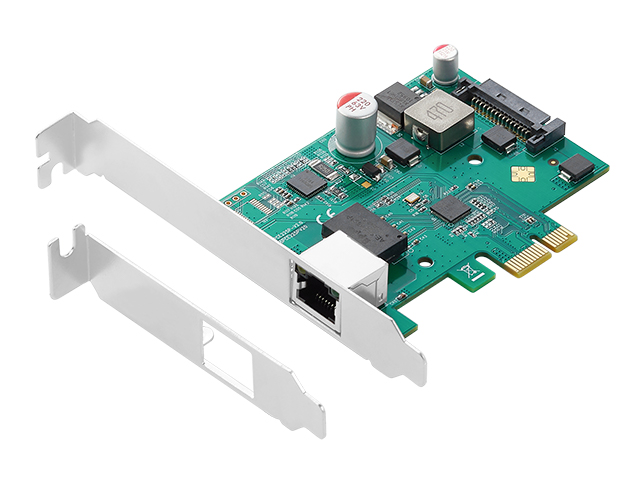

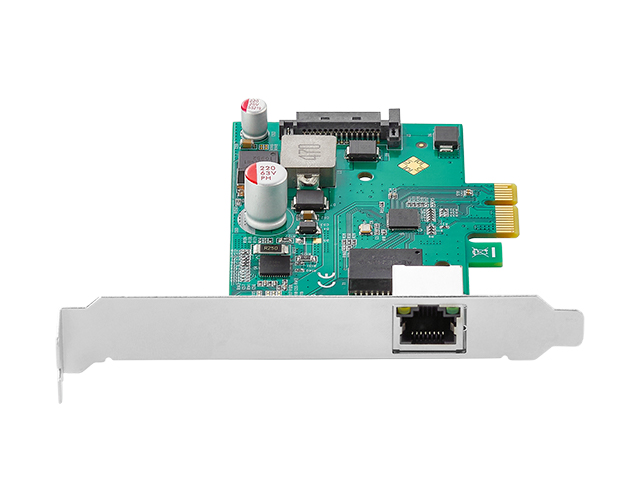

• 1 x PCI-Express to 10 /100/1000M/2.5G Ethernet Card
• 1 x User Manual
• 1 x Low-profile bracket
Note: Contents may vary depending on country/market
