Supports PCIe x4/8/16 slot,Support PCIe 4.0,3.1,3.0, PCIe 2.0 motherboard,Compliant with PCI Express M.2 specification 1.0,1.1,Supports data transfer up to 2.5Gb(250MB/s),5Gb(500MB/s,Connects PCIE motherboard to NGFF M Key SSD.
ModelIO-PCE1806-4M2
Input InterfacePCIe
Output InterfaceM.2
Motherboard SlotPCIex4,x8,x16
Transmission Rate
Auxiliary AccessoriesScrews(M.2)
Product Size145x110.8mm
Features
• Supports PCIe x4/8/16 slot
• Support PCIe 4.0,3.1,3.0, PCIe 2.0 motherboard
• Compliant with PCI Express M.2 specification 1.0,1.1
• Supports data transfer up to 2.5Gb(250MB/s),5Gb(500MB/s• Connects PCIE motherboard to NGFF M Key SSD
• Supports 2230, 2242, 2260, 2280 size NGFF SSD
• Supports four NGFF M.2 M Key socket available
• 4 screw holes 2230/2242/2260/2280 available to fix NGFF SSD card
• 4 screw holes available to fix PCB board
• Easy installation & no driver required
Ps. Motherboards and BIOS without bifurcation support can only recognize one module.
System Requirements
• Windows,Linux

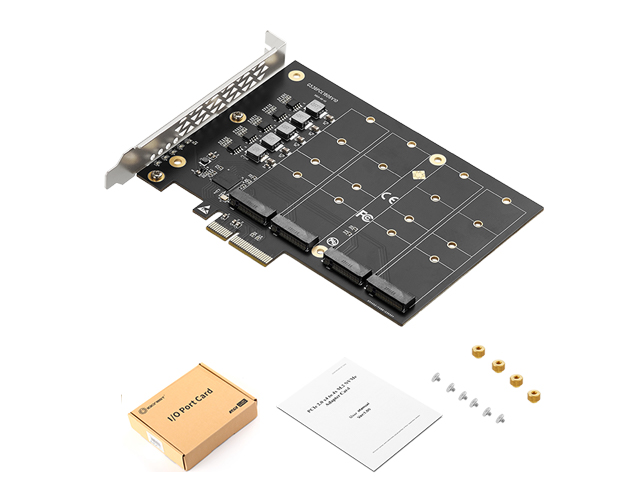

Package Contents
• 1 x PCIe 2.0 x 4 to 4 x M.2(M-Key) Card
• 1 x User Manual
• 1 x M.2 Mounting material
Note: Contents may vary depending on country and market.
