Supports 4 NVMe M.2 (2242/2260/2280/22110) up to 512Gbps in one card by utilizing PCle 5.0 bandwidth,PCIE 5.0 X16 Interface with server-grade (low loss) PCB material, compatible with PCI express x8 and x16 slots .
ModelPD42M43
Input InterfacePCIe
Output InterfaceM.2
Motherboard SlotM.2(B+M Key)
Transmission Rate512Gbps
Auxiliary AccessoriesScrews(M.2)
Product Size145x110.8mm
Product Description

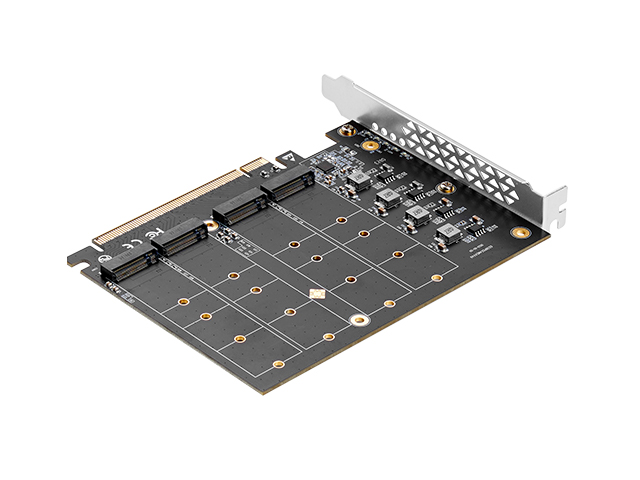

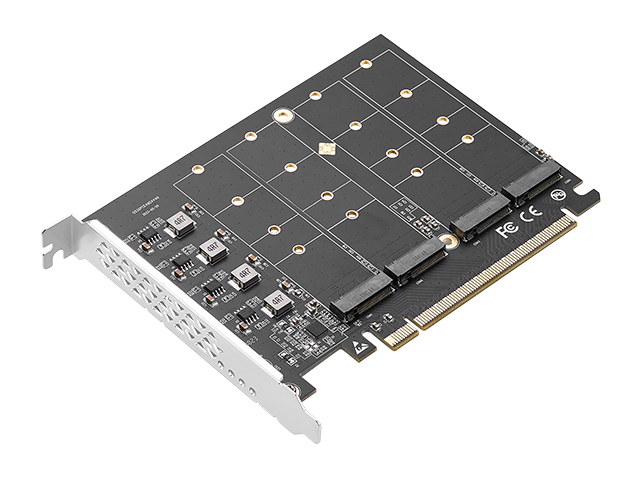

This adapter card turns one host PCIe x16 slot into four M.2 slots. Built on the PCIe 5.0 x16 bus, it delivers up to 512 Gbps of transfer bandwidth. It is designed for the latest generation of NVMe drives and features upgraded power delivery, supplying up to 14 W per drive. It meets the demand for high-capacity storage and high throughput among high-end desktops and workstations, media processing, and users running NAS, gaming or Chia coin mining setups.
Features
Uses PCIe 5.0 x16 bus bandwidth to deliver transfer rates of up to 512 Gbps.
Four M.2 slots, each supporting an NVMe SSD for high-speed data transfer.
Adequate power delivery and effective cooling keep the SSDs running stably.
Supports four NVMe M.2 drives with a maximum transfer rate of up to 512 Gbps.
PCIe 5.0 x16 interface built on low-loss, server-grade PCB material.
Supplies up to 14 W to each SSD, supporting next-generation high-performance drives.
Fitted with a heatsink that effectively cools the M.2 SSDs.
Compatible with PCIe x16 slots.
Supports PCIe 5.0 / 4.0 / 3.1 / 3.0, and is backward compatible with PCIe 2.0 motherboards.
Compliant with PCI Express M.2 Specification 1.0 and 1.1.
Supports data rates of 2.5 GT/s (250 MB/s), 5 GT/s (500 MB/s), 8 GT/s (1 GB/s), 16 GT/s (2 GB/s) and 32 GT/s (4 GB/s).
Supports 2230, 2242, 2260 and 2280 NVMe SSDs.
Four NVMe M.2 M-Key slots with matching mounting holes.
Easy to install; no driver required.
Important Note
On motherboards and BIOS versions that do not support PCIe bifurcation, the system detects only one M.2 drive.
System Requirements
Windows and Linux operating systems.
One available PCI Express x16 (or x32) slot on the motherboard.

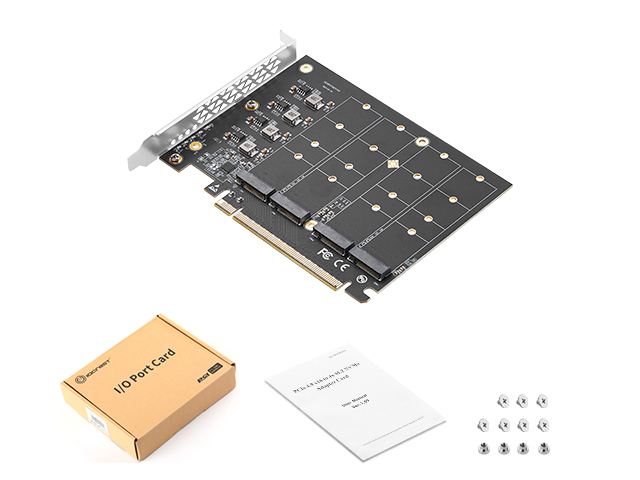

Package Contents
1 × PCIe 5.0 x16 to 4 × M.2 (M-Key) adapter card
1 × user manual
1 × M.2 mounting hardware
