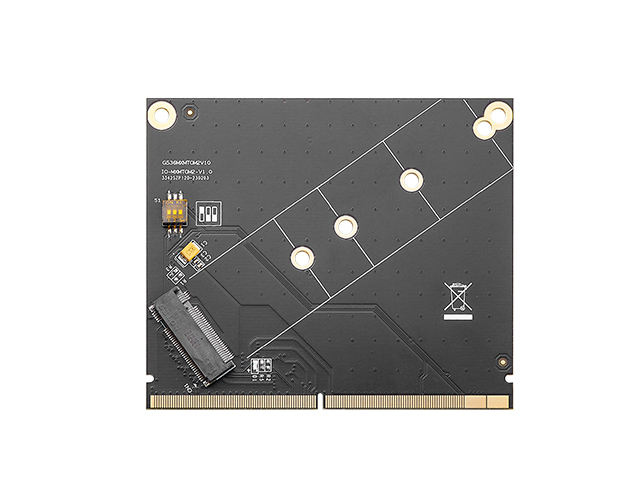

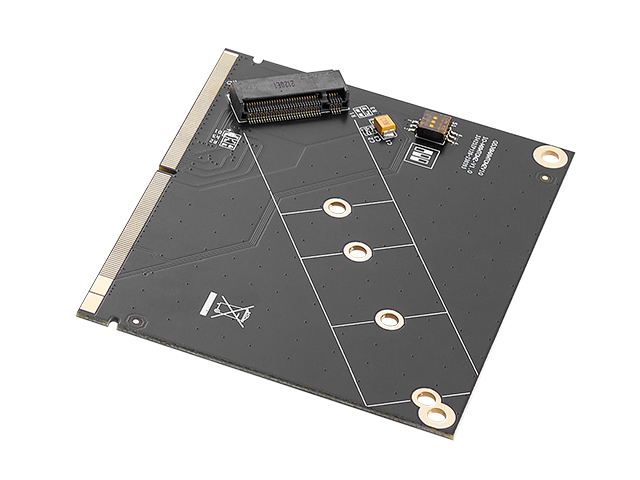

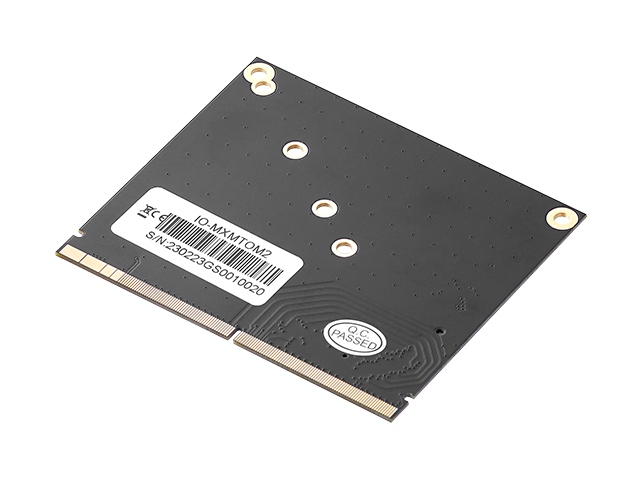

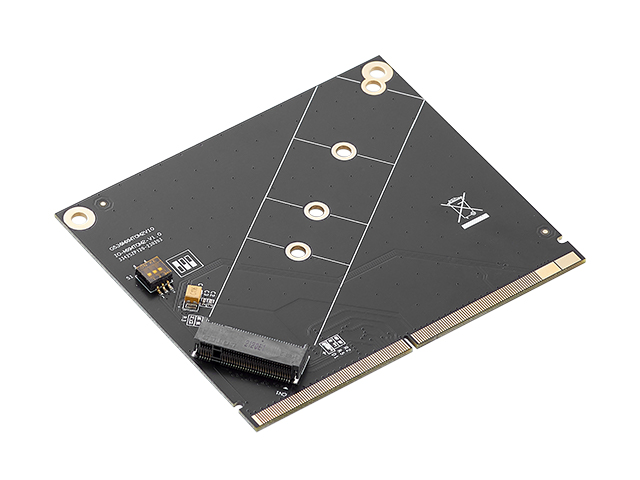

PCIe MXM3.0 to M.2 NVME Adapter(Support M.2 PCIe 2280, 2260, 2242, 2230),Convert M.2 NGFF PCI-e based SSD to work in main board PCI-e MXM bus slot，Transparent to the operating system and no driver required，Supports any OS like Windows, Mac and Linux。
ModelIO-MXMTOM2
Input InterfaceMXM
Output InterfaceM.2
Motherboard SlotMXM
Transmission Rate
Auxiliary AccessoriesScrews(M.2)
Product Size82x70mm
Features
• Convert M.2 NGFF PCI-e based SSD to work in main board PCI-e MXM bus slot
• Supports PCI-e Gen4,PCI-e Gen3 and PCI-e Gen2 M.2 NGFF 80mm, 60mm, 42mm, 30mm SSD
• Transparent to the operating system and no driver required
• Supports any OS like Windows, Mac and Linux
• Supports industrial operating temperature range: -40 - 85 ºC
Note: M.2 SATA based SSD CANNOT work with this PCI-e MXM based Adapter
System Requirements:
• Windows 7,8,8.1,10 and 11
• Windows server 2K8,2K12,2K16,2K19

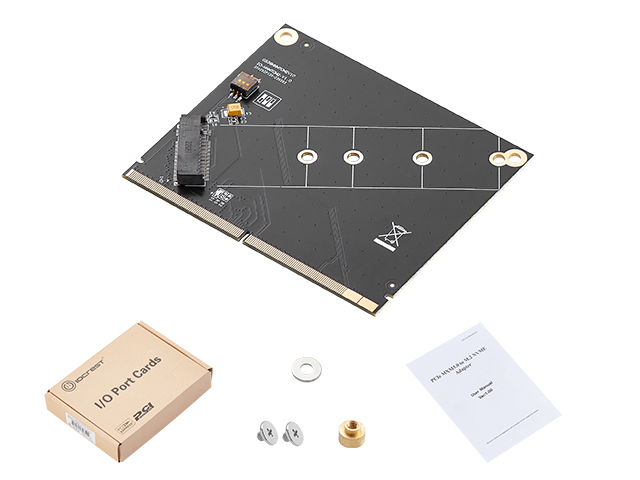

Package Contents
• 1 × PCIe MXM3.0 to M.2 NVME Adapter
• 1 × User Manual
• 2 × Screws(M.2)
Note: Contents may vary depending on country/market
