Features
1.Integrated 10/100/1000M/2.5G transceiver
2.Supports 2.5G Lite (1G data rate) mode
3.Compliant with USB3.1 Specification Revision1.0
4.Supports USB 3.1,3.0, 2.0, and 1.1
5.Supports CDC-ECM
6.Supports CDC-NCM
7.Supports LPM (Link Power Management)
8.Supports pair swap/polarity/skew correction
9.Crossover Detection & Auto-Correction
10.Supports Wake-On-LAN and ‘RealWoW!’
11.Supports power down/link down power saving
12.Supports hardware CRC (Cyclic Redundancy Check) function
IEEE
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.3bz (2.5GBASE-T)
• Supports Full Duplex flow control (IEEE 802.3x)
Software Offload
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
• Supports jumbo frame to 16K bytes
• Supports Protocol Offload (ARP & NS)
Microsoft AOAC (Always On Always Connected)
• Supports 32-set 128-byte Wake-Up Frame pattern exact matching
• Supports link change wake up
• Supports Microsoft WPD (Wake Packet Detection)
Intel CPPM (Converged Platform Power Management)
• Supports L1 with 3ms BESL (USB 2.0)
• Dynamic LTM messaging (USB 3.0)
• Supports U1/U2/U3 (USB 3.0)
• Supports selective suspend
System Requirements
• Windows Server ,2008, 2012, XP, Vista, 7, 8,10,11, 32 and 64 bit
• Linux kernel up to 5.6
• Mac OS 10.8,10.9 to 10.15
One available USB port
Package Contents

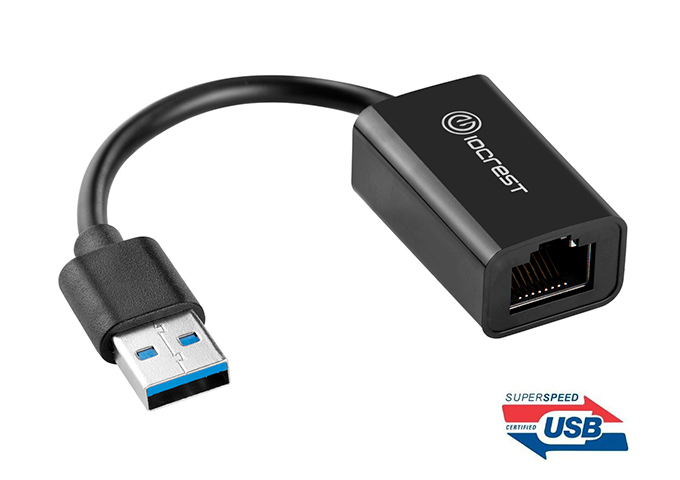

• 1x USB 3.0 Ethernet Adapter
• 1x Quick Installation Guide
