Introduction

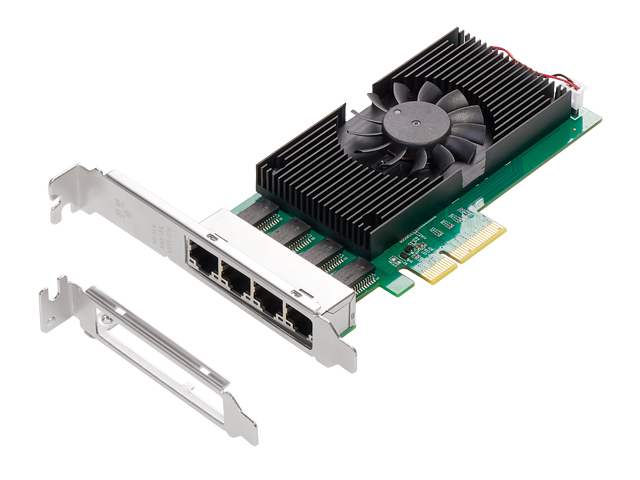

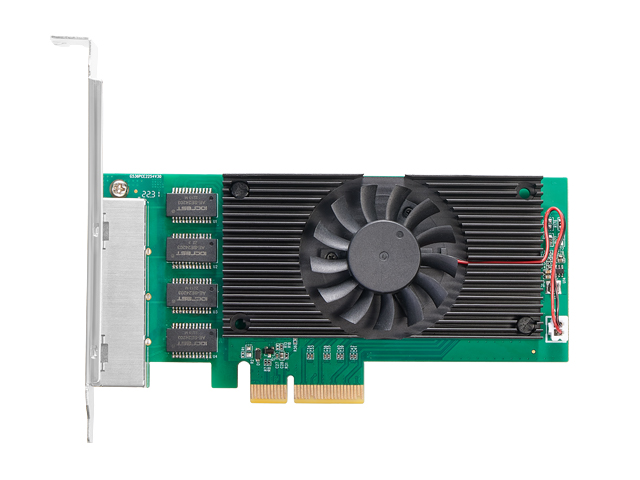

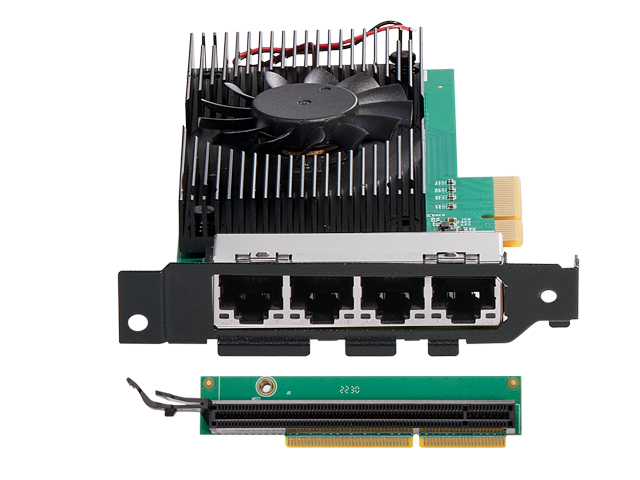

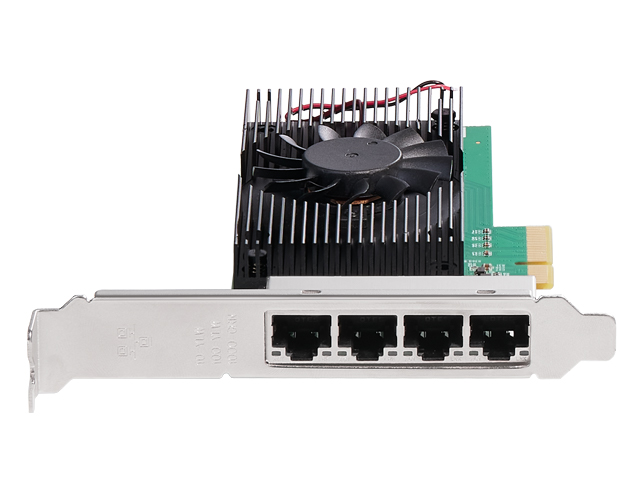

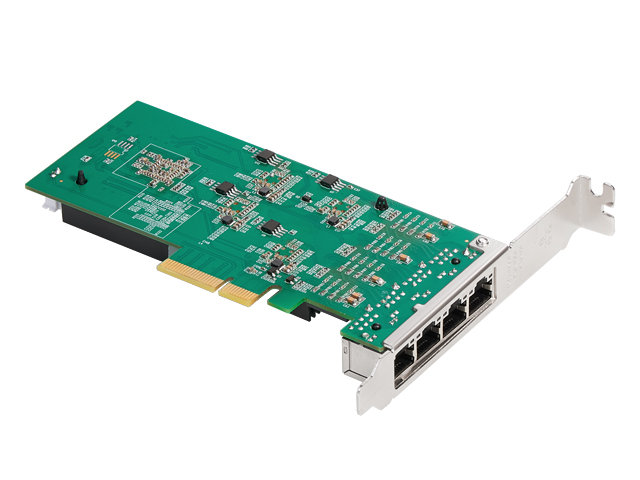

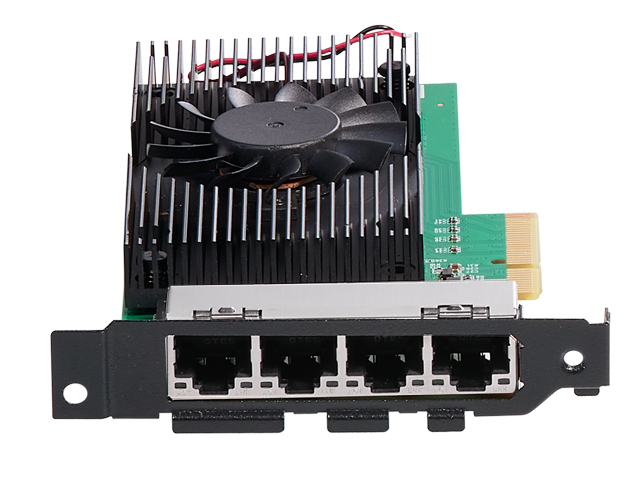

This card is a 2.5Gbps  Ethernet PCI Express Card, which is specifically designed to plug into a desktop equipped with an available x4, x8 or x16 PCI Express slot. It supports high performance dual channel networking and full duplex communication to achieve up to 2500 Mbps and fast transfer rates, yet is compatible with existing Ethernet.

Features

• Supports PCI Express revision 2.0

• Support 2.5G and 1G Lite mode

• Supports PCI Express x4, x8 or x16 socket

• Integrated MAC/PHY supporting 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T 802.3 specifications

• IEEE 802.3u auto-negotiation conformance

• Half duplex operation at 10BASE-Te and 100BASE-TX

• Automatic polarity correction

• Error correcting memory (ECC) in packet buffers

• Flow control support: send/receive PAUSE frames and receive FIFO

• Supports PXE

•Support Wake on LAN ,Only the first port (upper left corner) supports Wake-On-LAN (Wake-On-LAN)

• Interrupt moderation, VLAN (802.1Q & 802.1P), TCP/IP checksum offload, segmentation offload

• Time Sensitive Network (TSN): IEEE 1588/ 802.AS Rev, 802.1Qav, 802.1Qbv

•Supports Interrupt moderation, VLAN (802.1Q & 802.1P), TCP/IP checksum offload, segmentation offload

• Supports IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3az、IEEE 802.3bz

• Supports IEEE802.3az(Energy Efficient Ethernet)

• Supports IEEE802.3bz(2.5GBASE-T)

• Supports Full Duplex flow control(IEEE 802 .3x)

• Supports Size of jumbo frames 9.5 KB and without TSN

System Requirements

• Windows 10S/10RS5+

• Ubuntu 19.04 or higher

•  10QTS 4.4.2 or later (recommended to update to the new version of QTS)

•  Windows 10 (version 1809 and above) or newer;

•  Linux Stable Kernel 4.20/5.x or later

• PCI Express-enabled system with an available PCI Express slot

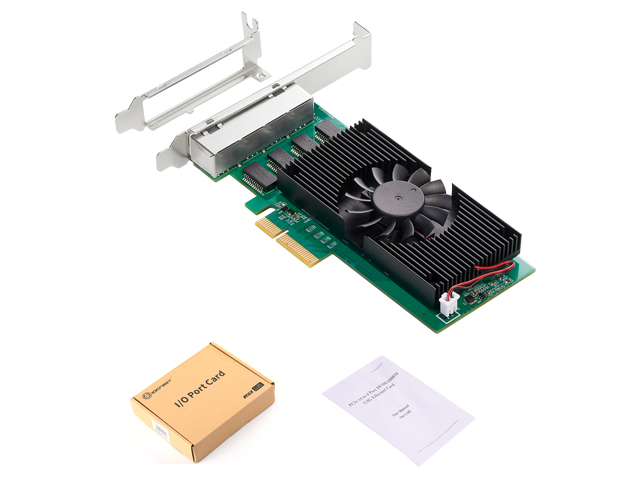

Package Contents

• 1 x PCI-Express to 10 /100/1000M/2.5G Ethernet Card

• 1 x User Manual

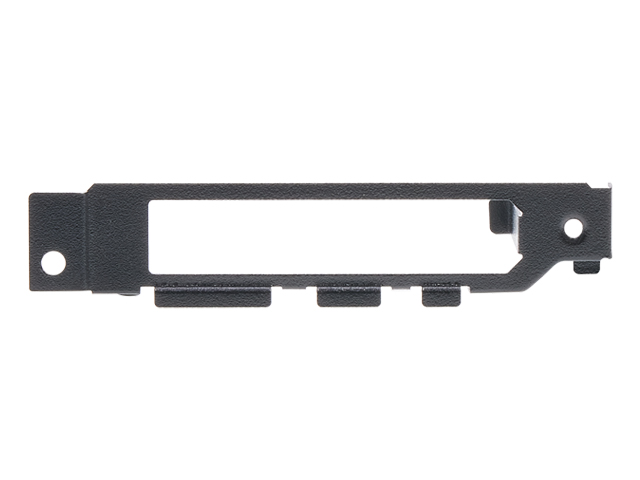

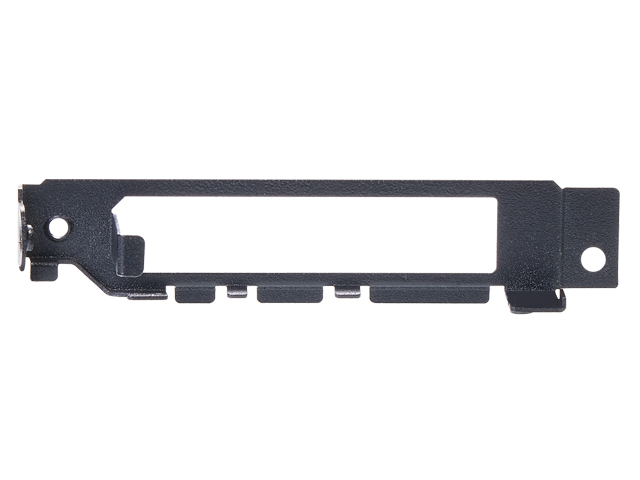

• 1 x Low-profile bracket

Note: Contents may vary depending on country/market
