Features
• PCI-Express 2.0x4
• Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 20Gb/s
• Support USB Battery Charging Specification Revision 1.2
• Complaint with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
• Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
• Supports the following speed data rates as follows:
• Low-speed (1.5Mbps) /Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
• Supports 4 downstream ports for all speeds
• Power Input: 15-pin SATA CD-ROM Type Power Connector
• Hot-swapping feature allows you to connect/disconnect devices without powering down the system
• 5V/900mA power output for Type A port
System Requirements
• Windows 8.x / 10 (X86/X64) (Windows in-box driver)
• Linux 2.6.31 or later (Linux OS already implemented USB3.0 driver)
• Mac OS
Package Contents

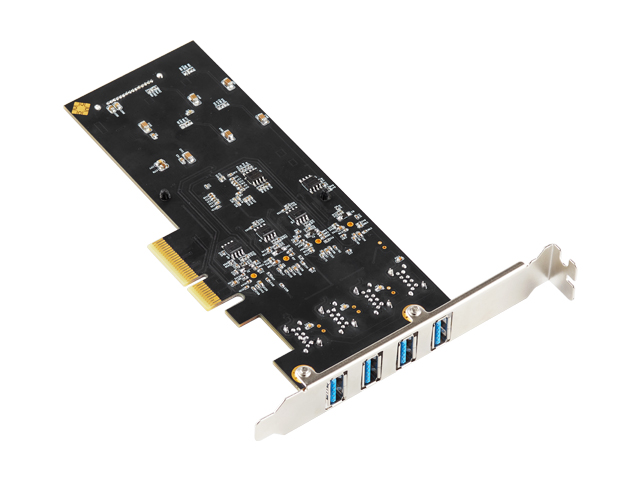

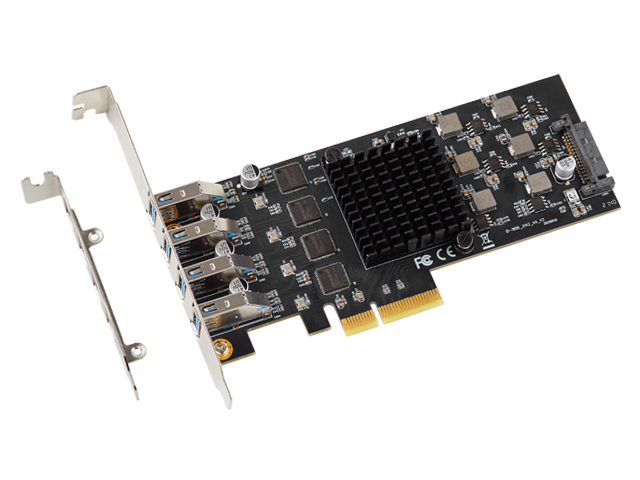

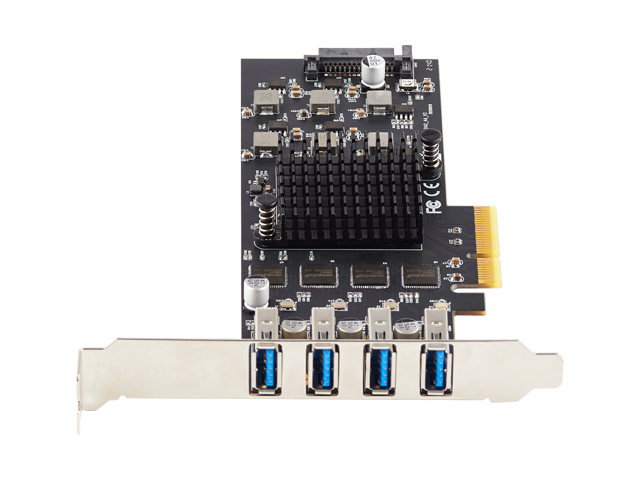

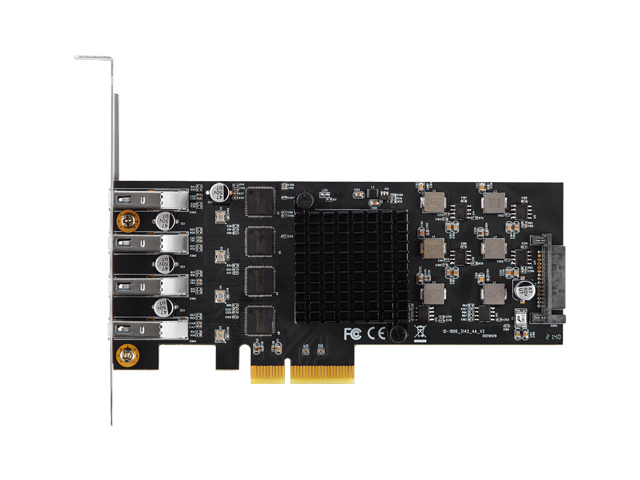

1 × PCIe to 4 USB3.2 Gen1 Type-A Host Controller Card
1 × User Manual
1 × Low Profile Bracket
