ModelIO-PCE5810-10I
Input InterfacePCIe
Output InterfaceSATA
Motherboard SlotPCIex1,x4,x8,x16
Transmission Rate6Gbps
Auxiliary AccessoriesLow profile bracket
Product Size80x64.4 mm
Features
Supports one lane of PCI Express.
Complies with PCI Express Base Specification Revision 3.1a.
Compliant with Serial ATA Port Multiplier Spec. Revision 1.2
Compliant with Serial ATA Port Selector Spec. Revision 1.0
Compliant with Serial ATA PHY Electrical Spec. Revision 1.0
Complies with SATA Specification Revision 3.2.
Supports 10-port 6Gb/s SATA III interface
Supports asynchronous signal recovery
Automatic speed negotiation
Supports BIST and loopback mode
Supports Port Multiplier
Supports Hot-Plug
Supports cascade mode
Supports AHCI mode and IDE programming interface.
Supports Native Command Queue (NCQ).
Supports SATA link power saving mode (partial and slumber)
Supports SATA plug-in detection capable.
Supports drive power control and staggered spin-up.
Supports SATA Partial / Slumber power management state.
System Requirements
Windows 7 (X86/X64)
Windows 8/8.x / 10 (X86/X64) (Windows in-box driver)
Linux-base OS
Package Contents

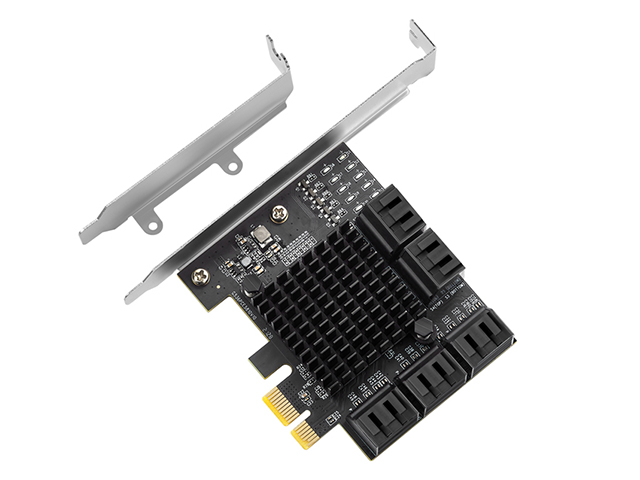

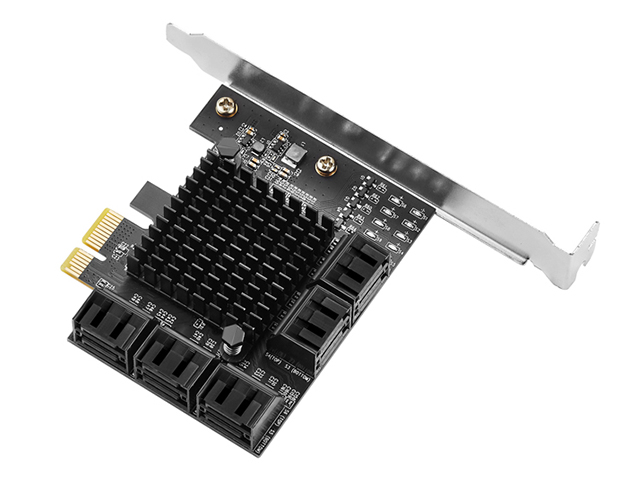

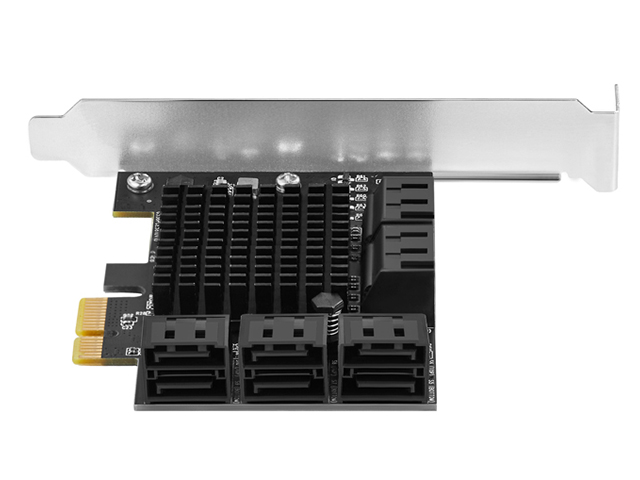

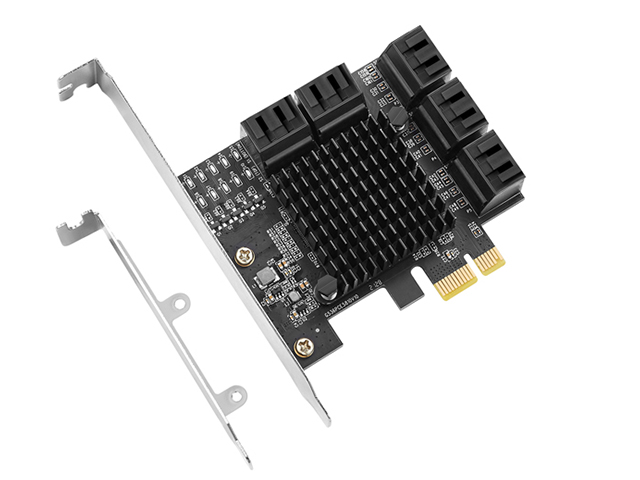

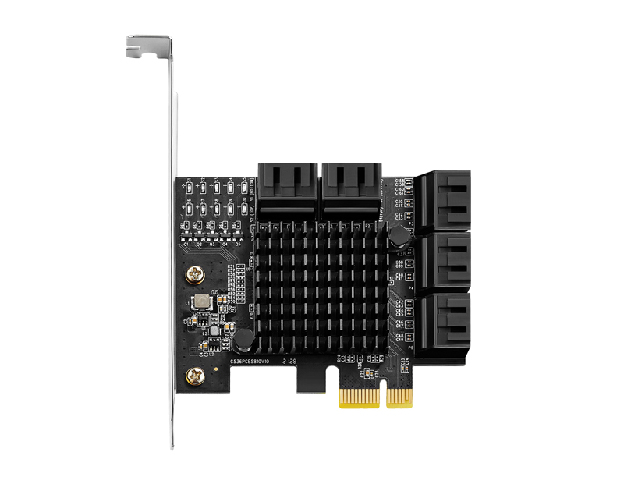

1 × PCIe Gen3x1 to 10 x SATA Card
1 × User Manual
5 × SATA Cable
1 x Low Profile Bracket
Note: Contents may vary depending on country/market
