Features

•  Support PCI Express3.0 x4、X8、X16

•  Support PCI Express Base 3.1a Specification

•  Compliant with PCI Express Card Electromechanical 2.0 specification

•  Compliant with PCI Bus power Management interface specification Revision 1.2

•  Compliant with PCI Local Bus specification Revision 3.0

•  Not Support lane reversal

•  Compliant with Universal Serial Bus 3.1 specification Revision 1.0

•  Compliant with Universal Serial Bus specification Revision 2.0

•  Compliant with USB Attached SCSI Protocol Revision 1.0

•  Support Multiple INs function

•  Support one ports of USB3.2

•  Support USB3.2 and USB2.0 Link Power Management

•  Support USB3.2Gen2 x2

•  Up to 20Gbps

•  Support PPS/PD3.0/PD2.0/QC4+/QC4/QC3.0/QC2.0/AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC

•  Support DFP/Source

•  Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1

•  5V/3000mA power output for Type C port

•  A type c female, an external USB3.2 interface and internal SATA power

•  Power Input: 15-pin SATA CD-ROM Type Power Connector

•  Support device remote wakeup function from USB keyboard or mouse

•  Support Control, Bulk, Stream, Interrupt, Isochronous transfer type

•  Operation Temperature ：0 to 60°C (32 to 140°F)

•  Storage Temperature：-20 to 70°C (-4 to 158°F)

•  Operation Humidity：5 to 95% RH

System Requirements:

•  Windows 8 and above

•  Linux 2.6.31 or later (Linux OS already implemented USB3.2 driver)

Package Contents

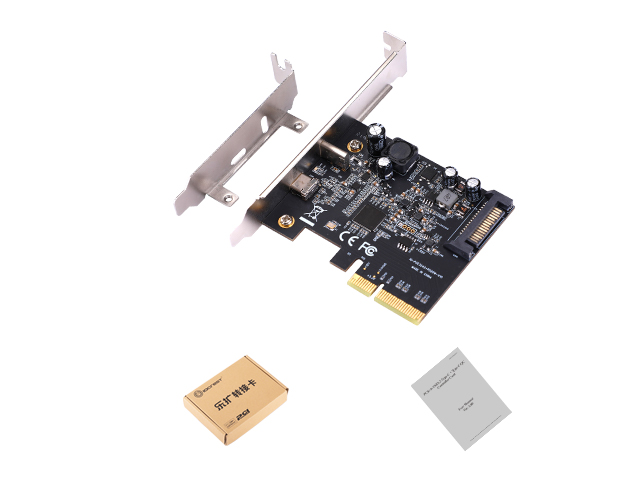

•  1 × PCIe to USB3.2 Type-C + Type-C PD Controller Card

•  1 × User Manual

•  1 × Low Profile Bracket

Note: Contents may vary depending on country/market
