Features

•  Supports one lane of PCI Express.

•  Complies with PCI Express Base Specification Revision 3.1a.

•  Compliant with Serial ATA Port Multiplier Spec. Revision 1.2

•  Compliant with Serial ATA Port Selector Spec. Revision 1.0

•  Compliant with Serial ATA PHY Electrical Spec. Revision 1.0

•  Complies with SATA Specification Revision 3.2.

•  Supports 6-port 6Gb/s SATA III interface

•  Supports asynchronous signal recovery

•  Automatic speed negotiation

•  Supports BIST and loopback mode

•  Supports Port Multiplier

•  Supports Hot-Plug

•  Supports cascade mode

•  Supports AHCI mode and IDE programming interface.

•  Supports Native Command Queue (NCQ).

•  Supports SATA link power saving mode (partial and slumber)

•  Supports SATA plug-in detection capable.

•  Supports drive power control and staggered spin-up.

•  Supports SATA Partial / Slumber power management state.

System Requirements

Windows 7 (X86/X64)

Windows 8/8.x / 10 (X86/X64) (Windows in-box driver)

Linux-base OS

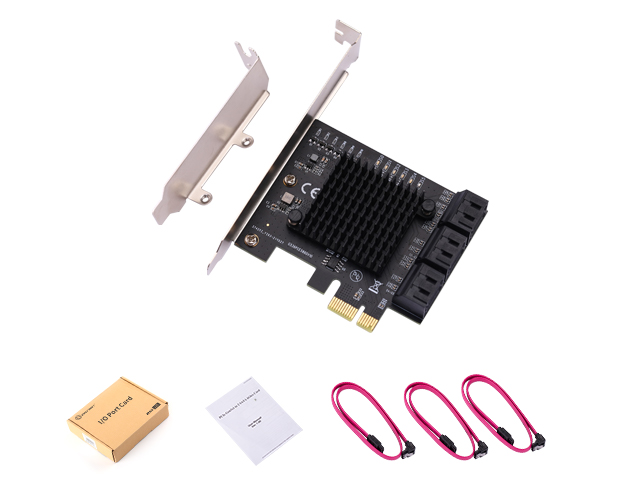

Package Contents

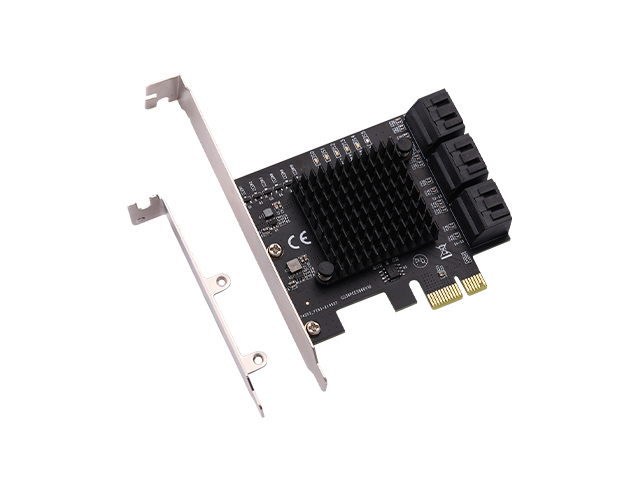

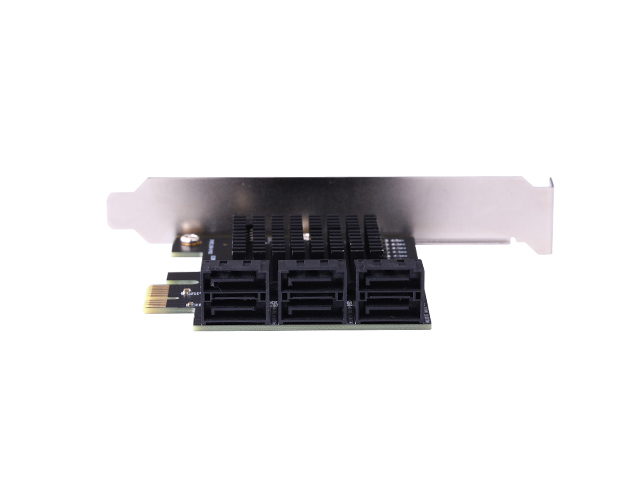

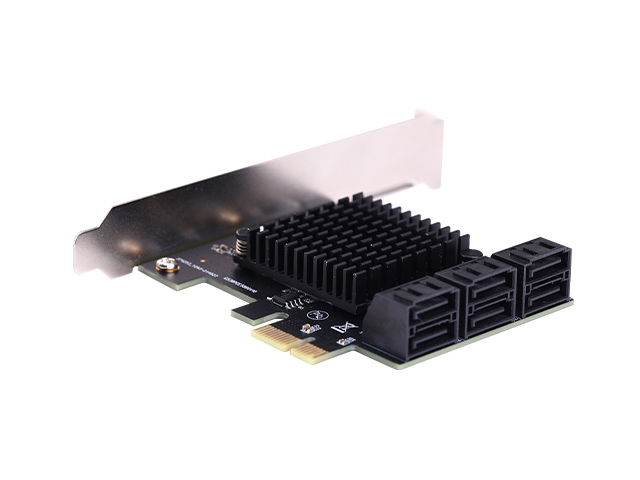

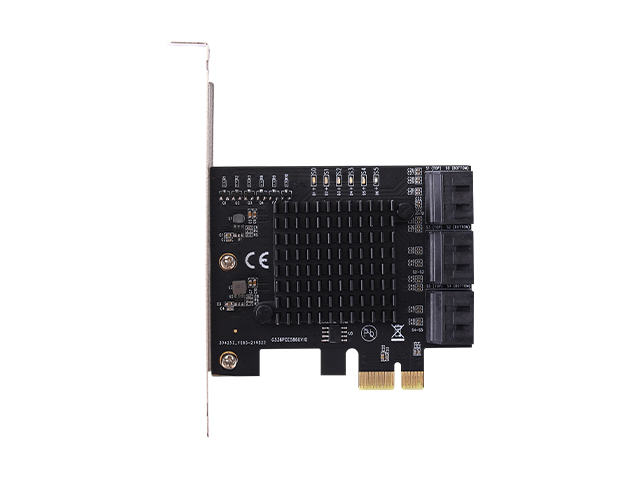

•  1 × PCIe Gen3x1 to 6 x SATA Card

•  1 x Low Profile Bracket

•  1 × User Manual

•  3 × SATA Cable

Note: Contents may vary depending on country/market
