Features

• Integrated 10M BASE-Te and 100/1000M/2.5G BASE-T 802.3 compatible transceiver

• Supports 2.5G Lite (1G data rate) mode

• Auto-Negotiation with Extended Next Page capability (XNP)

• Compatible with NBASE-TTM Alliance PHY Specification

• Supports PCI Express 2.1

• Compatible with PCI-E Mini Card Electromechanical specification revision 1.2

• Compatible with Half size Mini card type form factor

• Supports pair swap/polarity/skew correction

• Crossover Detection & Auto-Correction

• Supports 1-Lane 2.5/5Gbps PCI Express Bus

• Supports hardware ECC (Error Correction Code) function

• Supports hardware CRC (Cyclic Redundancy Check) function

• Transmit/Receive on-chip buffer support

• Supports PCI MSI (Message Signaled Interrupt) and MSI-X

• Supports power down/link down power saving/PHY disable mode

• Supports ECMA-393 ProxZzzy Standard for sleeping hosts

• Supports LTR (Latency Tolerance Reporting)

• Wake-On-LAN and ‘RealWoW!’ Technology (remote wake-up) support

• Supports 32-set 128-byte Wake-Up Frame pattern exact matching

• Supports Microsoft WPI (Wake Packet Indication)

• Supports PCIe L1 substate L1.1and L1.2

• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization

• Supports IEEE 802.1Qav credit-based shaper algorithm

• Supports IEEE 802.1P Layer 2 Priority Encoding

• Supports IEEE 802.1Q VLAN tagging

• Supports IEEE 802.1ad Double VLAN

• Supports IEEE 802.3az (Energy Efficient Ethernet)

• Supports IEEE 802.3bz (2.5GBase-T)

• Supports Full Duplex flow control (IEEE 802.3x)

• Supports jumbo frame to 16K bytes

System Requirements

• Windows OS

• Linux, MAC OS and DOS

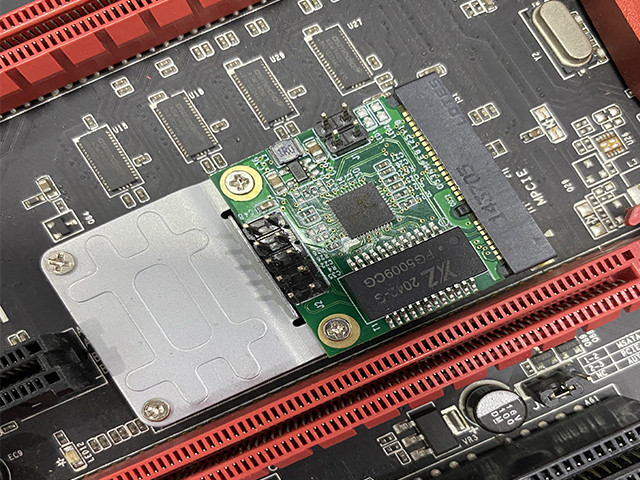

• Mini PCI Express-enabled system with an available Mini PCI Express slot

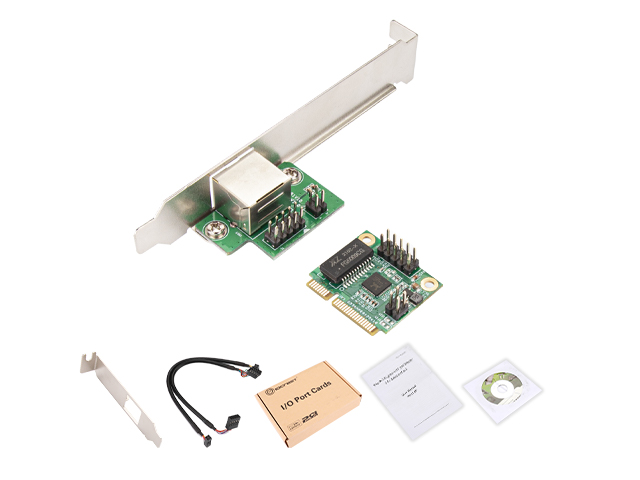

Package Contents

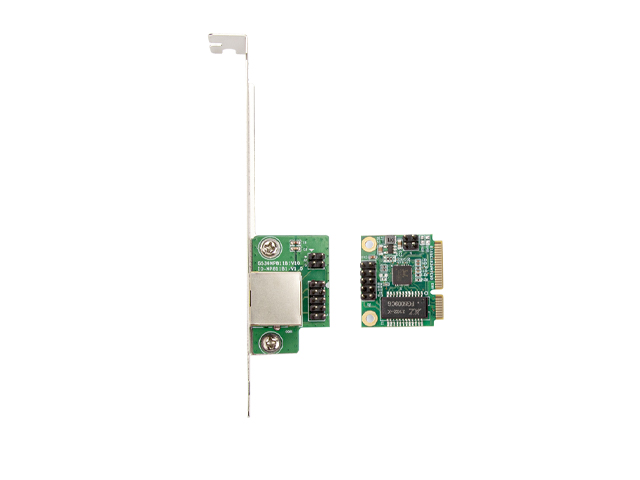

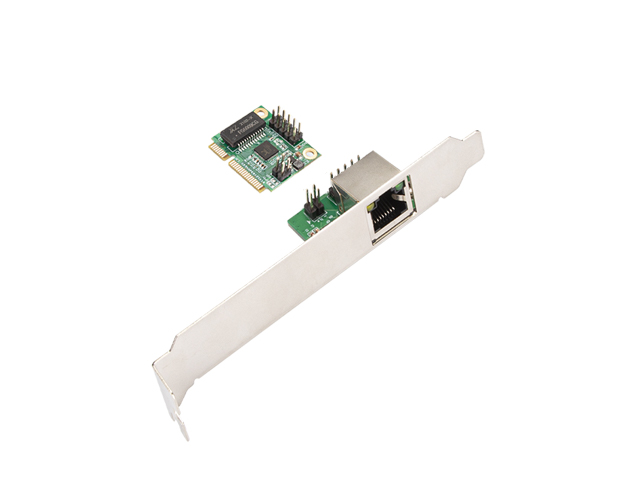

• 1 x Mini PCI-Express to 10 /100/1000M/2.5G Ethernet-Main Card

• 1 x Mini PCI-Express to 10 /100/1000M/2.5G Ethernet-Daughter Card

• 1 x User Manual

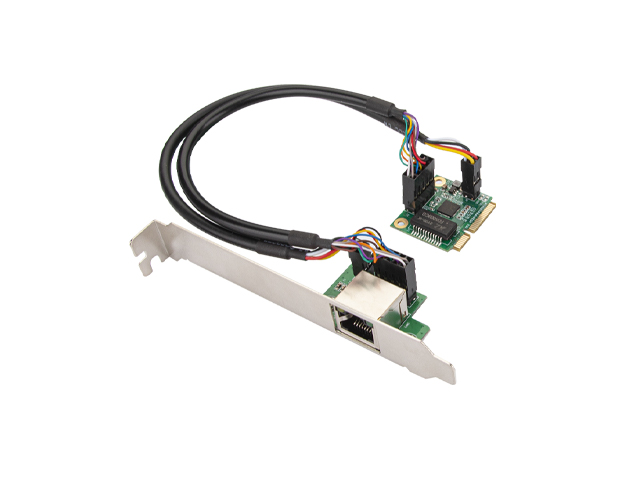

• 1 x 10-pin network cable

• 1 x 4-pin LED cable

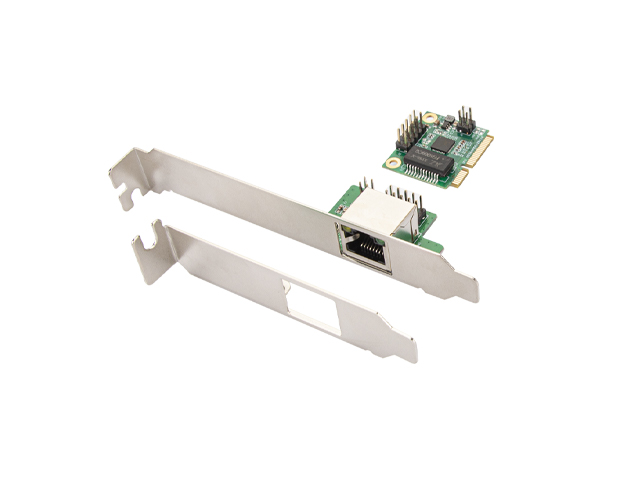

• 1 x Low-profile bracket
