Features

• Speed/port: 10Gbps (fiber for servers and workstations)

• Ethernet controller: Intel 82599ES

• Connector and cable medium: LC fiber optic

• Cabling type: MMF 62.5/50µm, up to 300m

• Maximum bus speed and slot width: PCI Express 2.0/5.0GT/s x 8 lane

• Ports: two SFP+ slots for SFP+ SR, SFP+ LR modules and direct attach SFP+ cables

• Bus type: PCI express 2.0 (5 GT/s)

• Bus width: PCI-E x 8/x 16

• Data rate supported per port: optical: 1GbE/10GbE direct attach: 10GbE

• Network standards: IEEE 802.3

• Interrupt levels: INTA, MSI, MSI-X

• Supported slot height(s): low profile and full height

• Intel VT for connectivity1: virtual machine device queues (VMDq), virtual machine

direct connect (VMDc)

• Security features: IPSEC/LinkSec

• IWARP/RDMA: NA

• Typical power consumption: maximum power 10.7W, typical power: 10.0W

• LED indicators: LINK (solid) and ACTIVITY (blinking), LINK SPEED (green =

• Operating Temperature: 0 ℃-55 ℃

• Relative Humidity: 10%-90%(non-condensing)

• Storage Temperature: -0℃-80℃

• Relative Humidity: 5%-90%(non-condensing)

System Requirements

• Windows* Vista* SP1

• Windows Server* 2003 SP2

• Windows* Unified Storage Solution 2003

• Windows Server* 2008

• Linux* Stable Kernel version 2.6

• Linux* RHEL 4,Linux* RHEL 5

• Linux* SLES 9,Linux* SLES 10

• FreeBSD* 7.0,UEFI* 1.1

• VMware ESX* 3.x

Package Contents

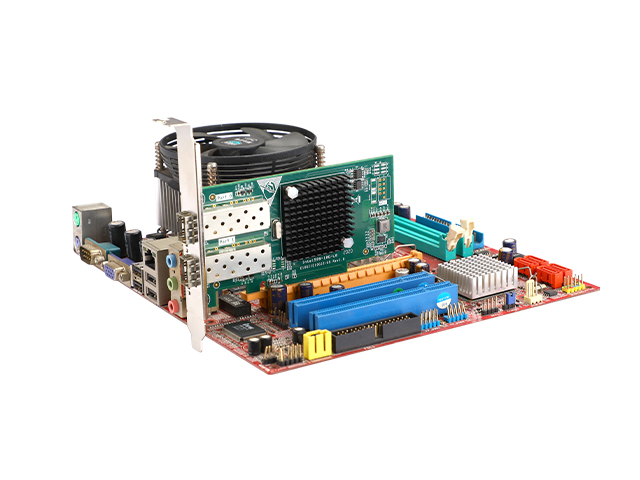

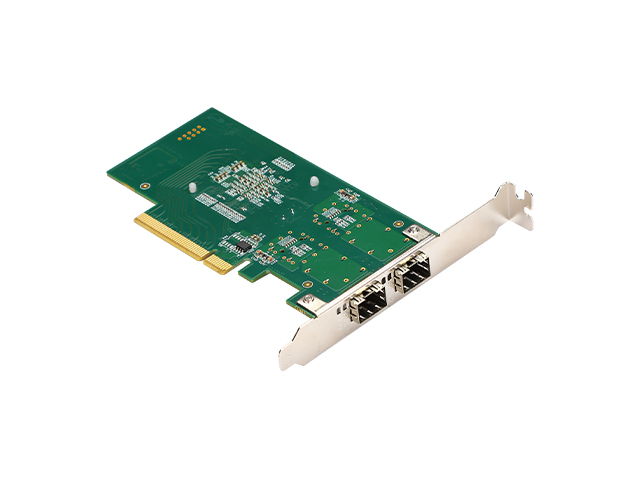

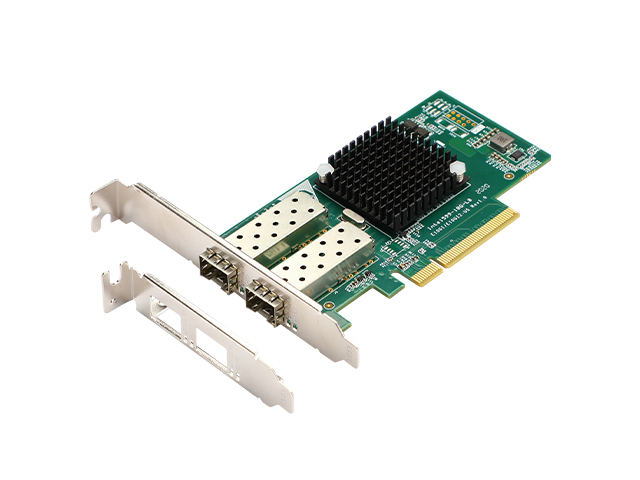

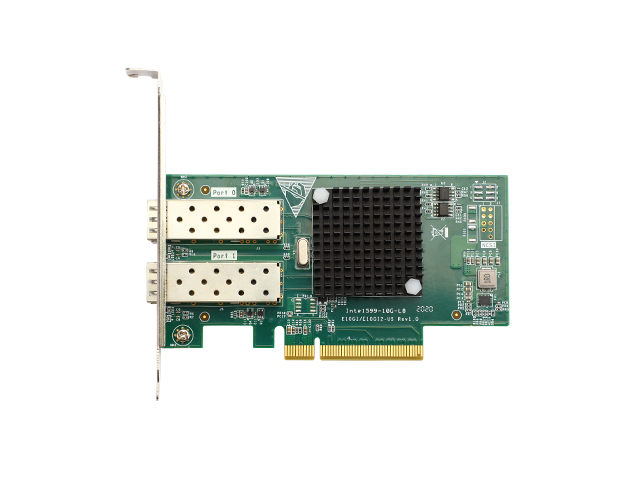

• 1 x PCI-Express to 2 Ports SFP+10G Ethernet network adapter

• 1 x User Manual

• 1 x Driver CD

• 1 x Low-profile bracket
